Product Details

Brand Name	PANSTO	Place of Origin	China
Model Number	850PTL	After-sales Service Provided	Engineers available to service machinery overseas
Condition	New

Product Description

ZJQ Series Slurry Pump

Product Introduction

ZJQ,NSQ submersible slurry pump. Sand suction pump is composed of motor and pump, which are separated by oil.Separation from the chamber and mechanical seal assembly is an electromechanical one-body product. The motor and pump share the same shaft (rotor).Three pumps are short in length and compact in structure Equipped with various protection devices to make the pump run safely and reliably.

It is safe and reliable to operate with Y series national standard motor F grade insulation.

Adopting double-channel series seal and selecting new alloy material, it has the characteristics of reliable sealing and long wear-resistant life.

The over-flow parts are made of high chromium slurry pump with good wear resistance and excellent over-flow performance, which is of the same kind in China 2-10 times of the service life of type I pump

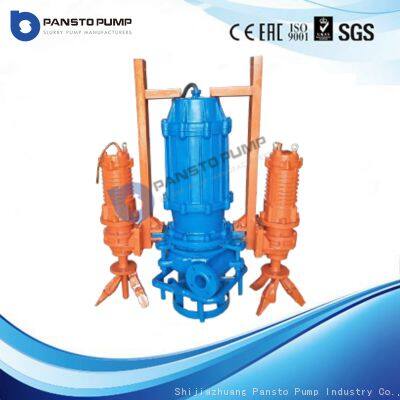

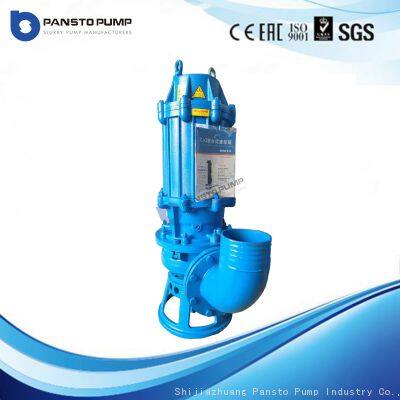

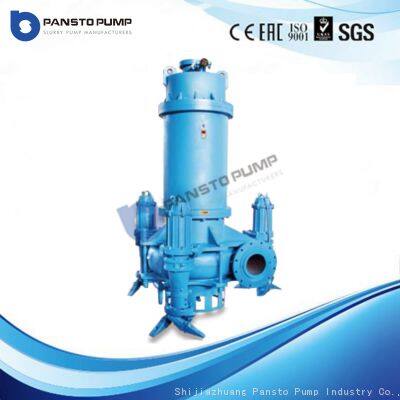

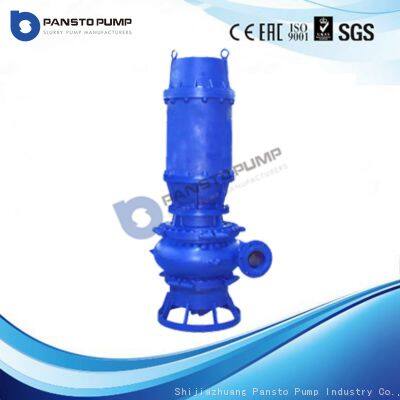

Detailed Photos

Technical Parameters

Product Model		Rotational speed (r/min)	Flow (m³/h)	Head (m)	Power (KW)	Calibre (mm)
40ZJQ,NSQ	8-12-2.2	1450	8	12	2.2	40
	10-21-5.5		10	21	5.5	40
	15-12-3		15	12	3	40
	18-19-5.5		18	19	5.5	40
	23-10-3		23	10	3	40
	25-17-5.5		25	17	5.5	40
50ZJQ,NSQ	20-10-3	1450	20	10	3	50
	20-20-4		20	20	4	50
	25-15-4		25	15	4	50
	25-30-7.5		25	30	7.5	50
	30-15-5.5		30	15	5.5	50
	35-6-4		35	6	4	50
	45-14-5.5		45	14	5.5	50
65ZJQ,NSQ	25-15-4	1450	25	15	4	65
	47-34-11		47	34	11	65
	56-27-11		56	27	11	65
	71-25-11		71	25	11	65
80ZJQ,NSQ	10-15-5.5	1450	10	15	5.5	80
	30-30-7.5		30	30	7.5	80
	45-15-5.5		45	15	5.5	80
	70-20-7.5		70	20	7.5	80
	70-35-15		70	35	15	80
	80-15-7.5		80	15	7.5	80
	80-20-11		80	20	11	80
	80-45-22		80	45	22	80
	100-20-11		100	20	11	80
	100-30-15		100	30	15	80
	130-19-22		130	19	22	80
100ZJQ,NSQ	80-25-15	1450	80	25	15	100
	100-12-7.5		100	12	7.5	100
	100-20-15		100	20	15	100
	100-30-18.5		100	30	18.5	100
	120-18-15		120	18	15	100
	120-35-22		120	35	22	100
	150-25-22		150	25	22	100
	150-38-30		150	38	30	100
	160-80-90		160	80	90	100
	180-22-22		180	22	22	100
	200-35-37		200	35	37	100
150ZJQ,NSQ	120-16-15	1450	120	16	15	150
	150-22-18.5		150	22	18.5	150
	150-35-22		150	35	22	150
	180-25-22		180	25	22	150
	200-22-22		200	22	22	150
	200-35-37		200	35	37	150
	200-80-110		200	80	110	150
	250-16-22		250	16	22	150
	250-22-30		250	22	30	150
	250-40-45		250	40	45	150
	260-35-45		260	35	45	150
	260-60-110		260	60	110	150
	280-33-45		280	33	45	150
	300-22-30		300	22	30	150
	300-30-37		300	30	37	150
	300-30-45		300	30	45	150
	350-25-37		350	25	37	150
	400-30-55		400	30	55	150
	450-25-75		450	25	75	150
200ZJQ,NSQ	300-25-37	1450	300	25	37	200
	450-25-55		450	25	55	200
	500-35-90		500	35	90	200

Certificates

Company Profile

At present our products involve more than a dozen series and more than 100 varleties. The main products are horizontal slurry pumps, vertical slurry pumps, rubber lined pumps, gravel pumps, froth pumps, desulfurization pumps, filter press feed pumps, dredge pumps, sewage pumps, submersible slurry pumps and spare parts. The compamy has a number of high-quality, high-level and experienced technical and management elites. The material can be adjusted according to the actual working conditions of customers, So as to improve the wear resistance and corrosion resistance of the pump and greatly prolong the service life of the pump. Our products are widely used in beneficiation, metallurgy coal,electric power, petroleum, chemical industry, sand excavation, urban sewage, environmental protection and other industries.

Workshop

WorksWorkshophopWorksho

Workshop

Product Accessories

Application

Product Transportation

FAQ

1. What Products does Pansto Pump mainly produce?

Pansot mainly produce horizontal slurry pumps, vertical slurry pumps, rubber lined pumps, gravel sand pumps, froth pumps, desulfurization pumps, filter press feed pumps, dredge pumps, sewage pumps, submersible slurry pumps and spare parts.

2. Is Pansto direct factory or trader?

Yes, Pansto is direct Slurry Pump Manufacturer with Export and Import License, having its own foundry workshop, Machining Workshop, Heat treatment equipment and Assembly workshop, also advanced quality inspection equipment.

3. Can you provide OEM, ODM service?

Yes. OEM Service is an important part of our business. Pansto Pump accept OEM business as samples or drawings of all kinds of pumps and casting spare parts. And more we offer ODM service too.

4. What is your warranty period?

We provide one year of unconditional warranty on our products for the manufacturing defects.

5. What about delivery time?

Normally our production time is within two weeks. Please confirm before order.

6. The Min MQQ?

The MQQ is one pcs pump or spare parts.
