Product Introduction
The horizontal slurry pump is a cantilever centrifugal slurry pump, which is suitable for conveying abrasive or corrosive slurry and is widely used in metallurgy, mining, petroleum, chemical industry, coal, electric power, transportation, river dredging, building materials and municipal engineering and other departments.
PH pumps are fitted with thicker wear parts and large-duty frames, suitably transporting highly abrasive high-density slurry or lower-density high-head slurry. Within the maximum allowable working pressure range of the pump, multiple stages can be used in series.
For PHJ pumps, the wetted parts of the pump are made of rubber materials. Its pump body, pump cover, and transmission parts are the same as PH pumps; it is suitable for conveying fine particles and corrosive slurry.

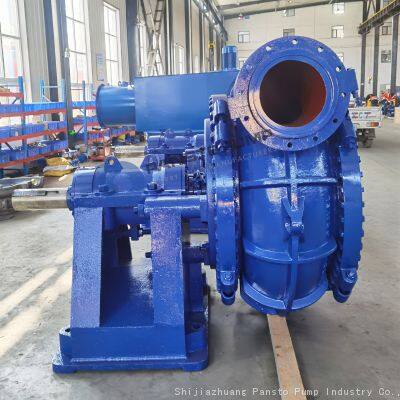

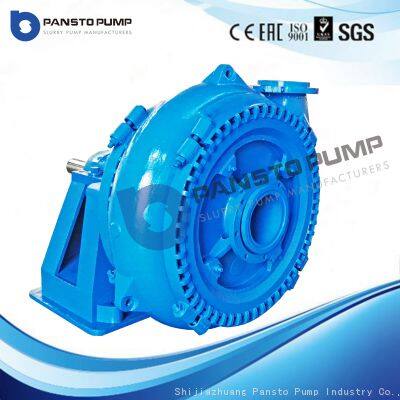

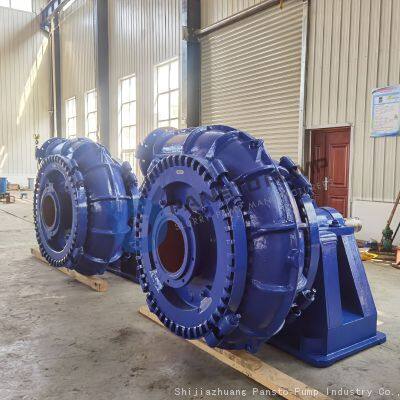

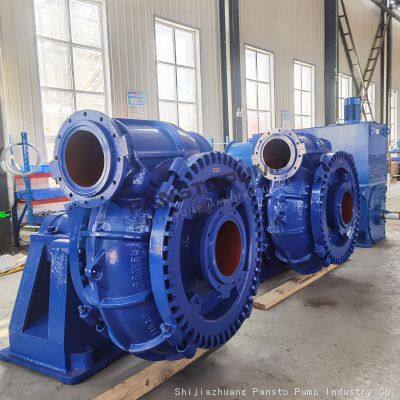

Detailed Photos
Technical Parameters
| Model | Distribution power P(KW) | Clearwater performance | |||||
| Flow Q(m³/h) | Head H(m) | Rotational speed n(r/min) | Efficiency η% | Cavitation allowance NPSH(m) | Weight (Kg) | ||
| PHB-40 | 2.2-15 | 3.6-20 | 5-68 | 1200-3800 | 40 | 2-4 | 91 |
| PHB-50 | 2.2-15 | 7-48 | 7-62 | 1200-3200 | 45 | 3.5-8 | 118 |
| PHC-75 | 4-30 | 21-86 | 12-65 | 1300-2700 | 55 | 4-6 | 191 |
| PHC-100 | 5.5-30 | 50-150 | 9-45 | 1000-2000 | 71 | 4-6 | 263 |
| PHD-100 | 7.5-60 | 68-160 | 10-52 | 1000-2200 | 71 | 4-6 | 363 |
| PHD-150 | 15-60 | 72-360 | 12-56 | 800-1550 | 65 | 5-8 | 626 |
| PHE-150 | 22-120 | 93-385 | 12-63 | 800-1600 | 65 | 5-8 | 728 |
| PHE-200 | 18.5-120 | 360-820 | 10-61 | 500-1100 | 72 | 2-9 | 1473 |
| PHR-200 | 110-300 | 360-820 | 10-61 | 500-1140 | 72 | 2-9 | 1836 |
| PHST-250 | 45-560 | 630-1300 | 11-60 | 400-850 | 71 | 4-10 | 3750 |
| PHST-300 | 55-560 | 800-1900 | 7-58 | 350-730 | 82 | 6 | 4318 |
| PHST-350 | 75-560 | 1200-2600 | 13-60 | 300-600 | 77 | 3-10 | 4609 |
| PHTU-400 | 160-1200 | 1368-3000 | 11-60 | 250-550 | 79 | 4-10 | 10000 |
Product Diagram
Certificates
Company Profile
At present our products involve more than a dozen series and more than 100 varieties. The main products are horizontal slurry pumps, vertical slurry pumps, rubber-lined pumps, gravel pumps, froth pumps, desulfurization pumps, filter press feed pumps, dredge pumps, sewage pumps, submersible slurry pumps, and spare parts. The company has a number of high-quality, high-level, and experienced technical and management elites. The material can be adjusted according to the actual working conditions of customers, so as to improve the wear resistance and corrosion resistance of the pump and greatly prolong the service life of the pump. Our products are widely used in beneficiation, metallurgy coal, electric power, petroleum, chemical industry, sand excavation, urban sewage, environmental protection, and other industries.
WorkshopWorkshop
Product Accessories
Application
Product Transportation
FAQ
Pansto mainly produces horizontal slurry pumps, vertical slurry pumps, rubber lined pumps, gravel sand pumps, froth pumps, desulfurization pumps, filter press feed pumps, dredge pumps, sewage pumps, submersible slurry pumps, and spare parts.
2. Is Pansto a direct factory or trader?
Yes, Pansto is a direct Slurry Pump Manufacturer with an Export and Import License, having its own foundry workshop, machining workshop, heat treatment equipment, and assembly workshop, as well as advanced quality inspection equipment.
3. Can you provide OEM or ODM service?
Yes. OEM Service is an important part of our business. Pansto Pump accepts OEM business as samples or drawings of all kinds of pumps and casting spare parts. And more we offer ODM service too.
4. What is your warranty period?
We provide one year of unconditional warranty on our products for manufacturing defects.
5. What about delivery time?
Normally our production time is within two weeks. Please confirm before ordering.
6. The Min MQQ?
The MQQ is one set of pump or spare parts.
