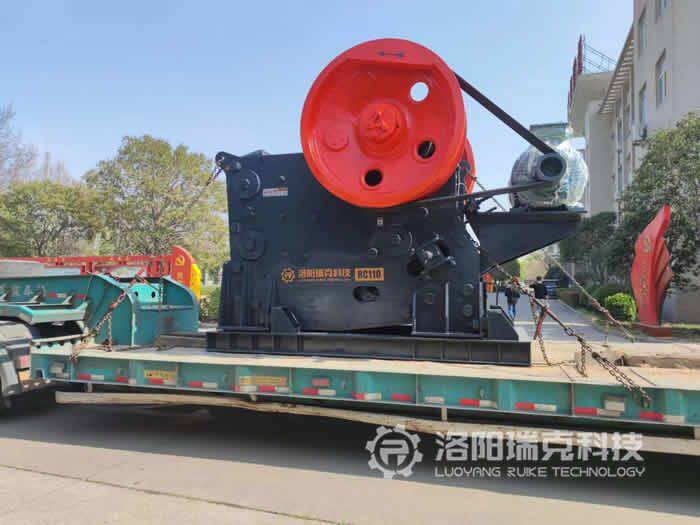

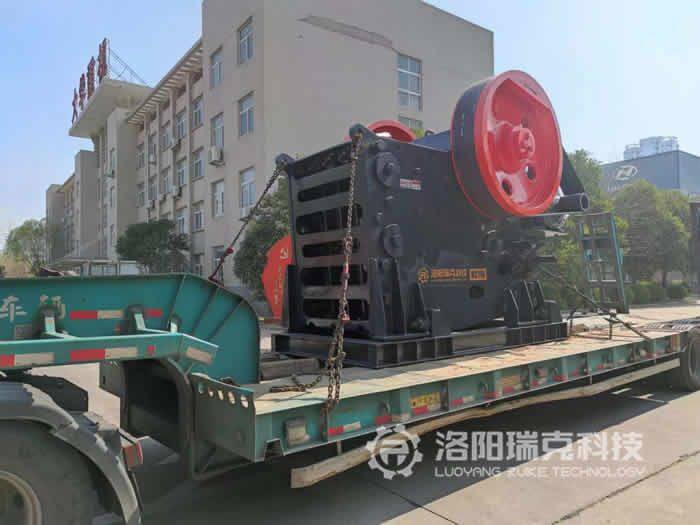

RC110 Jaw Crusher

RC110 Jaw Crusher thumbnail-1
RC110 Jaw Crusher photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
rc110
After-sales Service Provided:
Engineers available to service machinery overseas
Contact Supplier Request Quote Chat Now
Luoyang Ruike Cyclicing Technology Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number rc110
After-sales Service Provided Engineers available to service machinery overseas
Weight 29500kg
Power(W) 160
Capacity(t/h) 190~625

RC series jaw crusher

Application: Jaw crusher (jaw broken) is widely used in mining, metallurgy, building materials, road, railway, water conservancy and chemical industry

Applicable materials: limestone, granite, marble, basalt, iron ore, river pebble, shale, bluestone, coal, construction waste and so on

product superiority

Heavy design, suitable for all kinds of sand aggregate and mineral processing
Large size bearing, larger load, longer service life
Three different mounting structures for a wide range of working conditions
Wedge type discharge adjustment structure, adjustment more quick and convenient
Large Angle, reasonable stroke, high speed, so that the output is larger
The main engine is integrated with the motor and connected with the foundation through the rubber vibration damping pad
parameter of apparatus

 RC80

(Fission/Welded)

 RC96

(Fission)

 RC100

(Fission)

 RC106

(Fission)

 RC110

(Fission)

 RC125

(Fission)

 RC140

(Fission)

 RC160

(Fission)

 RC200

(Fission)
(mm)

(Feeding mouth width)

 800 930 1000 1060 1100 1250 1400 1600 2000
(mm)

(Feeding mouth depth)

 510 580 760 700 850 950 1070 1200 1500
(kw)

(Motor power)

 75 90 110 110 160 160 200 250 400
(rpm)

(Speed)

 350 330 260 280 230 220 220 220 200
(mm)

(Product size)

 (mm)

(C.S.S)

(Tons/Hours)

(Tons/Hours)

(Tons/Hours)

(Tons/Hours)

(Tons/Hours)

(Tons/Hours)

(Tons/Hours)

(Tons/Hours)

(Tons/Hours)
0-60 40 65-85







0-75 50 80-95







0-90 60 95-125 120-155






0-105 70 115-150 140-180 150-210 155-200 190-250



0-120 80 130-170 160-210 170-225 175-230 210-275



0-135 90 150-195 180-235 190-245 200-260 235-305



0-150 100 165-215 200-260 215-280 220-290 255-330 290-380


0-185 125 210-275 250-325 265-345 280-365 310-405 350-455 385-500

0-225 150 250-325 300-390 315-410 335-435 370-480 410-535 455-590

0-260 175 290-380 350-455 370-480 390-510 425-550 470-610 520-675

0-300 200

420-545 445-580 480-625 530-690 590-765

0-340 225




590-770 655-850 520~675
0-375 250




650-845 725-945 595~775 760~990
0-410 275






675~880 855~1110
0-450 300






750~975 945~1230









825~1070 1040~1350









900~1170 1130~1470









980~1275 1225~1590


1)In the table, the processing capacity is the parameter corresponding to the rock with crushing and loose density of 1.6t/m³ (stone density of 2.7t/m³)


2)Depending on the nature of the material and the way of feeding, the handling capacity may change   CSS is a closed side discharge port.


3)The measurement method is determined by the tooth shape of the jaw plate. With different tooth shape, the processing capacity and the discharge size will change


(Dimensions and weight)
RC
80		 RC
96		 RC
100		 RC
106		 RC
110		 RC
125		 RC
140		 RC
160		 RC
200
A mm 800 930 1000 1060 1100 1250 1400 1680 2000
B mm 510 580 760 700 850 950 1070 1200 1500
C mm 1526 1755 2420 2030 2385 2800 3010 3700 4040
D mm 2577 2880 3670 3320 3770 4100 4400 5900 6700
E mm 1750 1460 2490 2005 2750 2980 3140 3750 4465
F mm 1200 755 1700 1135 1940 2100 2260 2650 2800
G mm 2100 2500 2965 2630 2820 3470 3755 4280 4870
H mm 625 465 775 700 580 980 1050 1200 6400

Crusher self-respect1)

 kg 7670 9759 20060 14350 25800 45000 54000 83300 137160


1)Does not contain the optional parts of crusher
