Wet grain processing freeze-dried raw bone and meat cat food and dog food vacuum blade extrusion enema machine

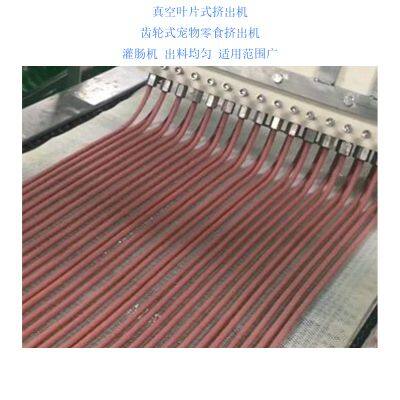

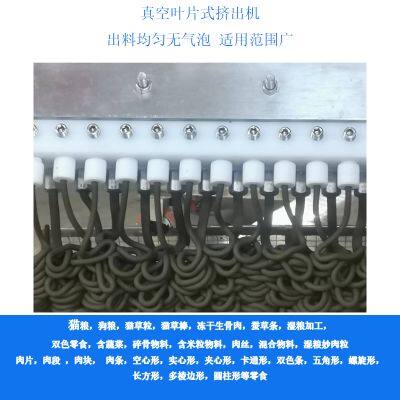

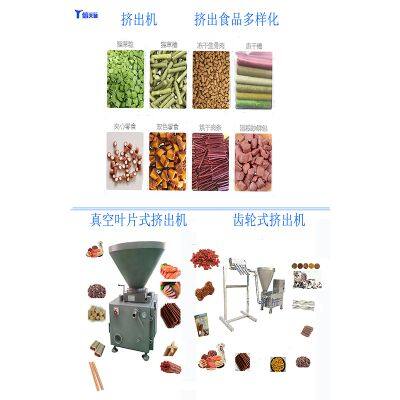

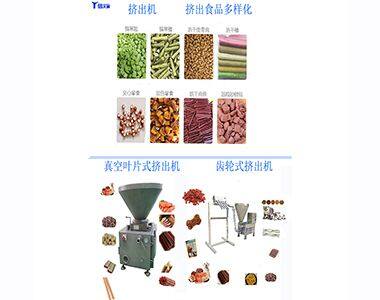

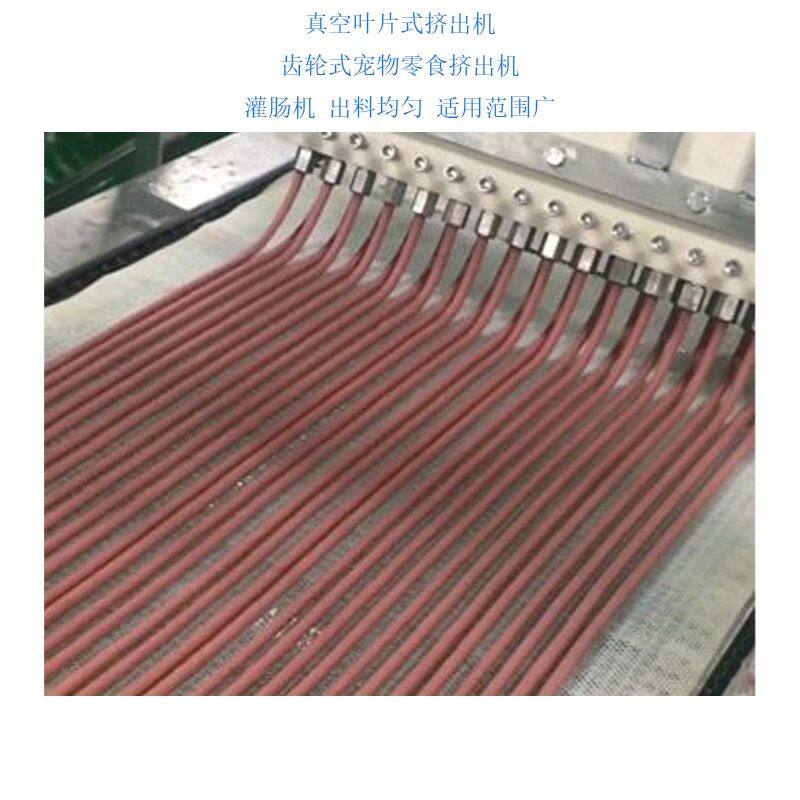

Widely used: fish and meat strips, shrimp feed, cat food, dog food, cat strips, fruit strips, dry processing, cowhide strips, cat grass pellets, cat grass sticks, beef sticks, chicken breast strips, chicken breast strips, grinding sticks, cat oral cleaning sticks, freeze-dried raw bone and meat, silkworm grass strips, wet grain processing, dual color snacks, including vegetables, block materials, broken bone materials, rice grain materials, high-end freeze-dried snacks, shredded meat, mixed materials, wet grain Miaoxian Bao, Pet teeth grinding snacks, meat pellets, dog bite glue, meat slices, meat segments, meat chunks, meat strips, hollow, solid, sandwich heart, cartoon, bicolor bars, pentagonal, spiral, rectangular, polygonal, cylindrical snacks and pet snacks。
This machine consists of a rack, variable frequency control system, vacuum control system, blade pump, electrical box, hopper, etc.
Vane pump mainly consists of pump shaft, impeller, blades, and cam, and its main purpose is to control discharge。
Introduction to equipment features:
1. All plates are made of 304 stainless steel material, which is sturdy, durable, and has a longer service life;
2. Filling under vacuum to prevent fat oxidation, prevent protein hydrolysis, reduce bacterial survival, ensure product shelf life, bright color, and mellow taste;
3. It can be used as both extrusion or filling equipment, and can also lift and transport materials over long distances;
4. Equipped with a frequency converter, it can achieve frequency conversion speed regulation function;
5. The blade type extrusion and filling machine has better adaptability to materials: extrusion or filling of mixed materials such as shredded meat, dry materials, wet grains, meat chunks, vegetables, and broken bones. Its working principle is to use blade pump extrusion filling.

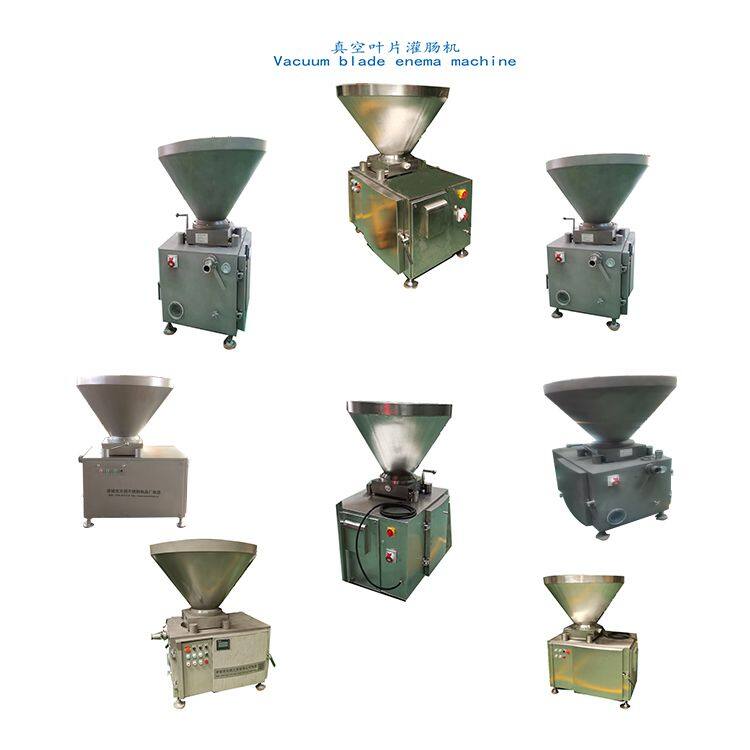

Vacuum blade enema machine
VACUUM VANE ENEMA CHINA
Parameter table:
Name
Speed (r/min)
power
(kw)
voltage
(v)
External dimensions
(mm)
Whole machine quality
(kg)
Volume L
Vacuum blade enema machine
Variable frequency speed regulation
7.5+0.75
three hundred and eighty
one thousand and two hundred × eight hundred × one thousand five hundred and fifty
eight hundred
two hundred
Trial operation
Before the first operation, maintenance personnel must conduct a trial run to
Ensure that all functions of the machine are functioning properly.
Close the hopper and connect the power supply. First, check if the power cord is connected correctly. (Inspection method: First, close the air circuit breaker in the distribution box, then turn on the power switch of the body, and then press the "Run" and "Vacuum" buttons in sequence. If the machine does not respond, it indicates that the three-phase power is connected incorrectly. Adjust any two of the three main power lines.)
Place the machine in a suitable position and level the four feet, requiring the hopper to be flipped in a direction no less than 1.5m away from the wall.
Connect the 380V power supply and firmly connect the ground wire to the workshop's ground wire network.
Open the hopper and check if there are any foreign objects inside the blade pump.
Install the impeller and blades (apply a little cooking oil to the moving surface), position the cam, then put the hopper back in place and press the pump cover tightly. After everything is normal, pour the filling material into the hopper.
Due to the different densities of filling materials, the filling speed used varies. Following the principle that the higher the density of filling materials, the poorer their fluidity, and the slower the filling speed.
Opening and closing the lid
Cleaning
At the end of each filling process, there is a decrease in the vacuum pumping degree of the vacuum pump, which needs to be turned off
Turn off the power, release the clamping handle to flip the hopper over, take out the inner nails, and loosen the screws inside the impeller
Lock the bolt and use the special tool provided with the lifting wheel to lift the impeller and blade together and place them in place
Wash in water, rinse and wipe the pump chamber clean, and return the hopper to its original position. When not in use for a long time,
Please apply edible oil to the impeller, pump chamber, and blades* It is strictly prohibited to turn on the vacuum pump during cleaning; No
If the vacuum pump is easily damaged due to water ingress, we are not responsible!
9. Maintenance and lubrication
9.1 The specific use and maintenance of the vacuum pump in this machine can be found in the "User Manual" of the vacuum pump
9.2 The blade pump is a critical part of the machine and requires careful cleaning after each operation,
When cleaning and installing, handle and handle with care to avoid collisions. Abnormal sound response detected during work
Timely inspection and handling.
9.3 The electrical control parts are all installed in the electrical box, and the box should be kept clean at all times. In the
Please do not use water directly to clean the box.
9.4 The sealing ring of the hopper and rotor may wear out during long-term use
If the filling is exposed, it should be replaced in a timely manner
1. Operating instructions
Please read this page carefully before use. Only by carefully reading and understanding this instruction can you
To prevent machine malfunctions and ensure normal operation, any failure to follow the instructions
The manufacturer is not responsible for any damage or malfunctions caused to the machine.
2. Architecture:
This machine consists of a rack, variable frequency control system, vacuum control system, blade pump, electrical box
Composed of hoppers, etc. Vane pump mainly consists of pump shaft, impeller, blades, and cam, mainly used for
The process is to control the discharge.
Wet grain processing freeze-dried raw bone and meat cat food and dog food vacuum blade extrusion enema machine。Directly supplied by the manufacturer, saving 30% of the cost, with guaranteed after-sales service.
With 18 years of professional experience in processing meat products and pet food, we have cooperated with over 1500 clients. Conscientious quality, high-quality Made in China.
