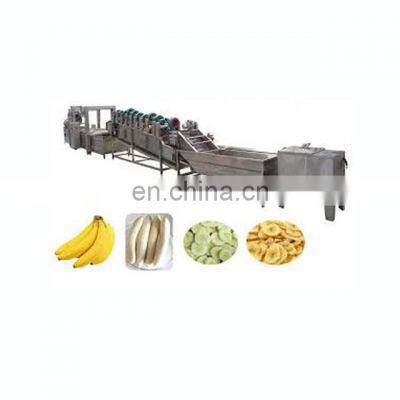

Automatic Plantain Banana Chips Production Line

4m Continuous frying machine

This frying machine is used in frying of various materials such as nuts, fruits, vegetables, meat, fish, fresh potato etc. It can be made by using CNG, LPG or electricity, diesel etc as heating medium. It selects and uses optimized structure, by which reduces oil consumption.

Characteristics:

• Hot oil boiler circular heating makes temperature up fast and small fluctuation of oil temperature;
• Dynamic oil filter system cleans the waste residue and keeps oil fresh duringfrying;
• Optimizedboiler structure can reduce the needed oil quantity and make high oil velocity;
• The boiler body and conveying part can be separated for easycleaning;
• Vibrating feeding material, dischargingequally;
• It can adopt diesel, gas, coal, etc. as energy

Technical parameter:

Delivery driving power: 1kw Elevating driving power: 0.45kw Circulation pump power: 45kw Heating power: 70kw

Oil temperature: 0-260℃

Throughput: 500kg/h

Dimension: 4160*850*2000mm

De - o i l i n g m a c h i n e

The materials are sent into the machine by mesh conveyor. Then they are turned many times to ensure the Multi-angles of materials get wind and uniformity of getting wind.

It can cool the materials or blow apparent oil or water away. Blowing them by using high pressure blow power of blower. The wind nose is knife shape improve the blow power effectively so that the apparent oil or water of materials is blew away and evaporated in short time.

Size: 3000*800*1200mm

Packed size: 3200*1000*1400mm power： 0.56kw/380v Capacity: 500kg per hour

Material: SS 304

Weight: 250kg
