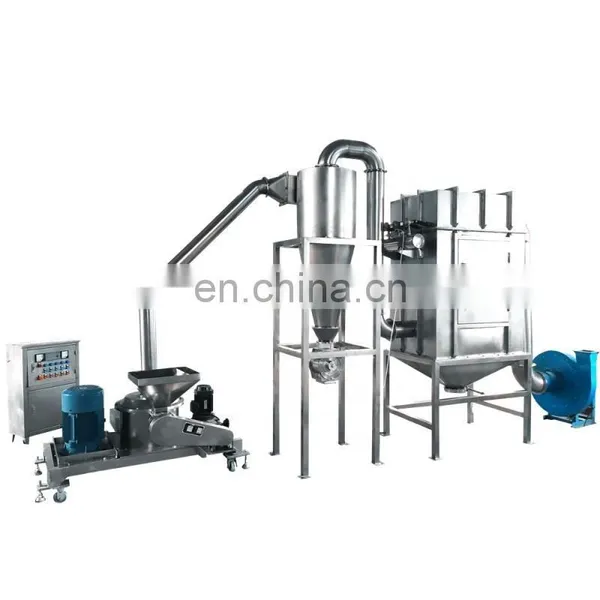

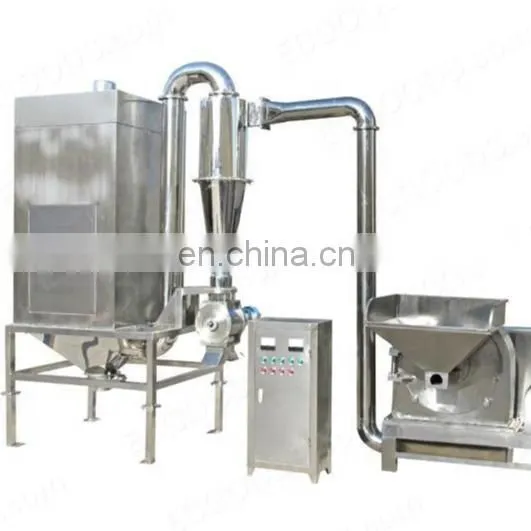

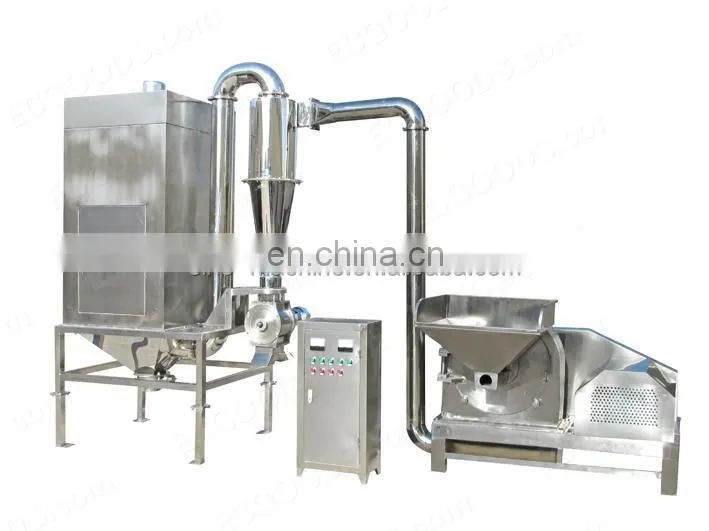

Dry stainless steel ultra fine grinder mill for making ultra fine powder
Features of ultra fine grinder:
1) The machine's structure is sturdy, it has smooth operation.
2) There is grading device, grinding and grading can be completed in one time.
3) No screen in the machine, you can control the grinding fineness by switching the button.
4) The materials can be crushed quickly and uniformly, then makes sure a good effect.
5) The machine is all made of 304 stainless steel, the crushing is very clean and healthy.
6) Through precision machining, machine's cogging achieves a smooth surface, so the machine is easy to be cleaned up after crushing materials, and changes the the phenomenon of build up powder in inner wall of machine.
Applications of ultra fine grinder:
This grinder can be mainly used for grinding hard and brittle materials, various grains of low oil content, various spices, herbal medicines containing roots and branches, chemical materials, and some other dry materials.
Such as: grains,spices,herbs,salt,sugar,pepper,walnut shells,cocoa bean,seed,coal,etc.After grinding, ultra fine powder can be made.
Main technical specification of ultra fine grinder:
|
Model |
GY30-15 |
GY30-18 |
GY30-36 |
|
Material |
304 stainless steel |
304 stainless steel |
304 stainless steel |
|
Capacity(kg/h) |
10-200 |
20-450 |
60-1000 |
|
Size of feed(mm) |
<10 |
<12 |
<15 |
|
Fineness(mesh) |
80-320 |
80-450 |
80-450 |
|
Total power(kw) |
13.7 |
19.07 |
38.85 |
|
Voltage(v) |
380 |
380 |
380 |
|
Main speed(r/min) |
4500 |
4480 |
4000 |
|
Overall dimensions(cm) |
541*166*250 |
550*180*310 |
900*220*400 |
Any voltage of ultra fine grinder can be customized according to client's requirement.
