Auto Lifting High Shear Mixer Emulsifying Cooker for Cheese
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
Product Description
Product Description
The machine can be produced smear cheese or any pastry fillings. Put the raw materials or cheese block into pot then they are cooked by steam and cut, stired by high speed knife. The final product is formed as a paste when it is hot.
It consists of:
A pressure resistance pot with steam jacket;
Steam can direct jet into pot to heating and cooking the product in pot;
Vacuum pump and vacuum control system for sucking out moisture from product in pot; Automatic lifting and dumping funnel put in raw material device by hydraulic driver.
Pot dumped device by motor and gear box with brake block device, it is for put out the final product from pot ;
High speed and strong power knife, for cutting and stirring the raw material into fine grain, a paste form and uniformly mixed.
Low speed slicker on the top of cover driven by motor with gear box. Sealing cover and its lock device, they are driven by pneumatic device. Temperature control system to control the temperature in pot;

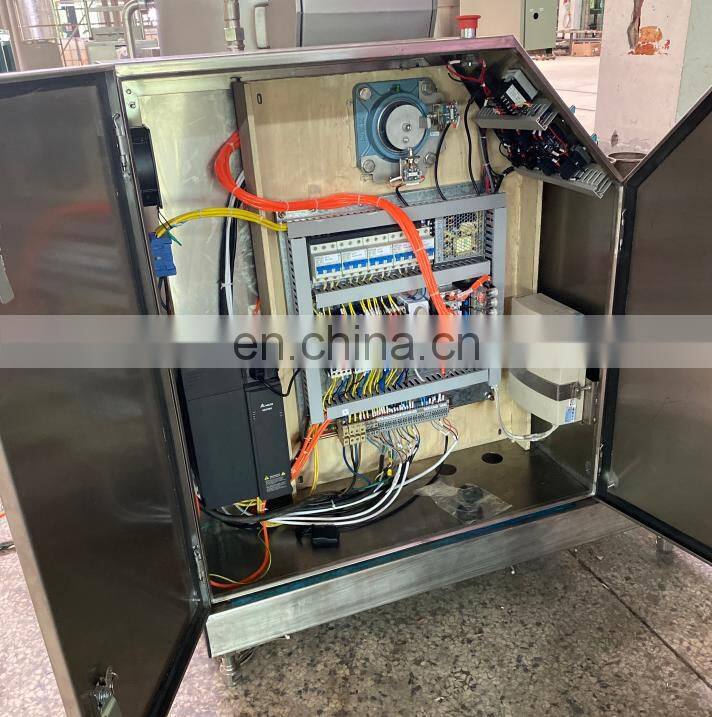

PLC and touch screen control system to order the machine running in program and set different programs for different products.
Specification
Knife motor | 18.5 kW |
Scraper motor | 0.75 kW |
Dumping motor | 0.55 kW |
Vaccum pump | 2.2 kW |
Steam consumption | 90 kg/batch |
Material Capacity | 90 kg/batch |
Machine Details

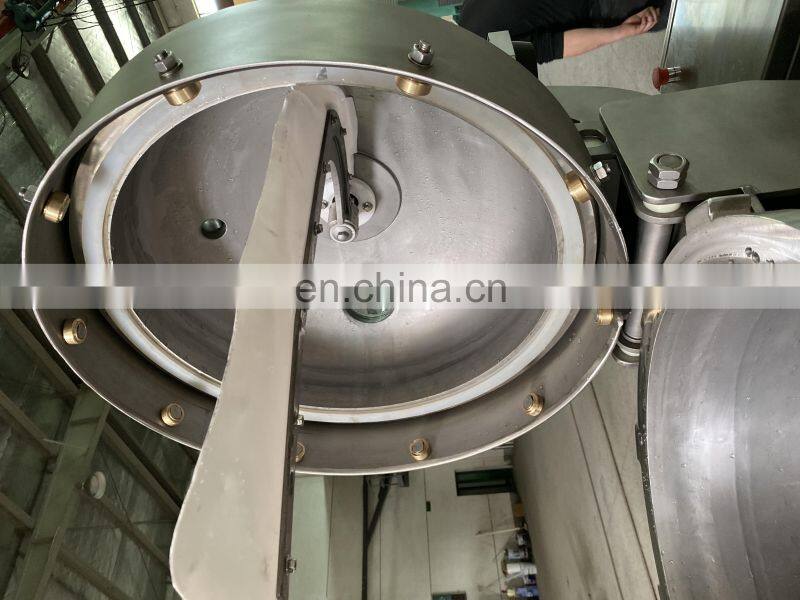

Low speed scraper
Made by PTFE, high temperature resistence.Make the mateiral not stick with the pot

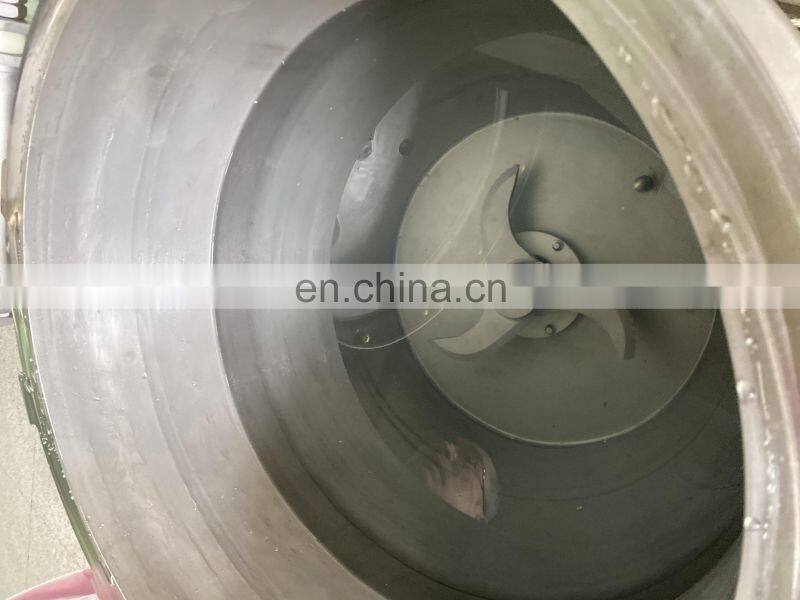

High speed main knife
Big poower main knife, crushing and mixing the mateiral.

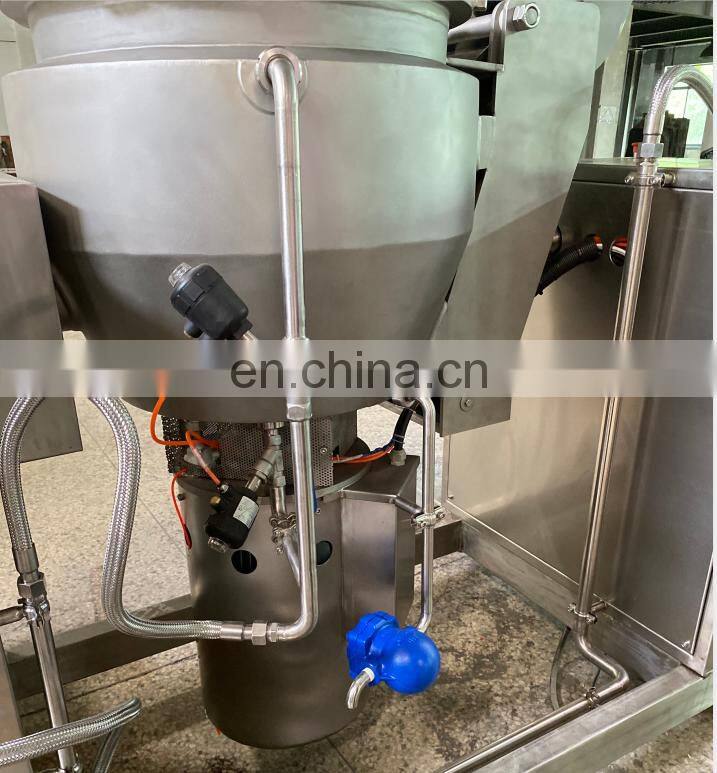

Vacuum system, and with steam injet inside of the pot directly
Uninterruptible Power Supply, protect the machine if power suddenly stop
Company Profile

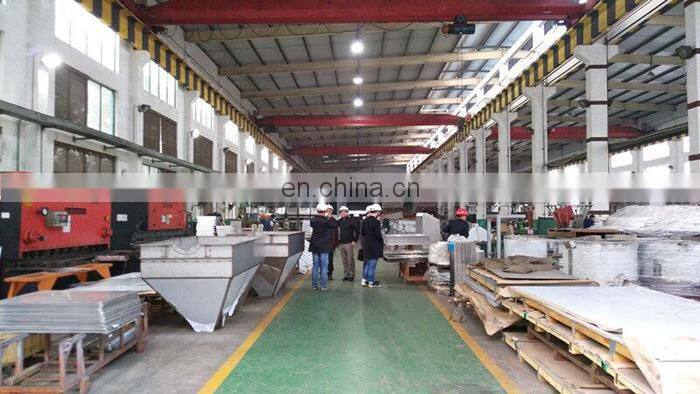

Shanghai Genyond Technology Co., Ltd belongs to GENYOND MACHINERY INDUSTRIAL GROUP. We are a group company which has 6 factories in China.
We specialize in food machine, medicine machine and packing machine.
Our main products include the following products:
snacks making machine (cake, biscuit, candy, chocolate and so on);
dairy processing line;
fruits and vegetable deep processing line (chips, canned food, juice, wine, vinegar, paste, jam, powder, candied food, pickles, frozen food, Dehydrated vegetable and so on);
vegetable pre-processing line (washing, sorting, cutting, pitting, peeling, blanching and so on.)
fish, meat and egg processing line (canned fish, canned meat, egg cleaning sorting packing, egg liquid and egg powder and so on)
nuts processing line (coffee powder, nuts milk, nuts butter, paste and so on)
grain and oil processing line (grain flour, starch, food oil and so on)
food packing line
extracting equipment & pharmaceutical equipment.
We have been in the design and production of food machine and medicine machine for more than 20 years. Our machines have been exported to more than 100 countries.
Our advantage is to offer you turnkey project. Our rich experience can help you on food production. We not only offer you the machine but also the processing technology and service on food and medicine production.
You just need to give us an idea on food production and we will make different proposals to help you to get the best solution on design, price and installation.
You are always welcome to visit us, we offer the free service on airport pickup, hotels, travelling in China.
