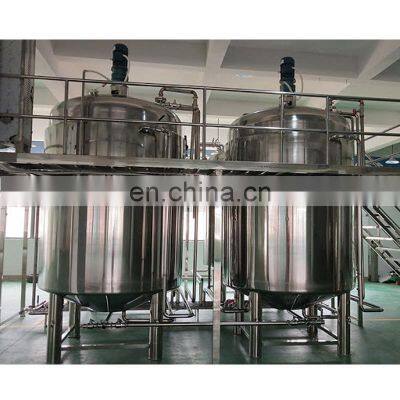

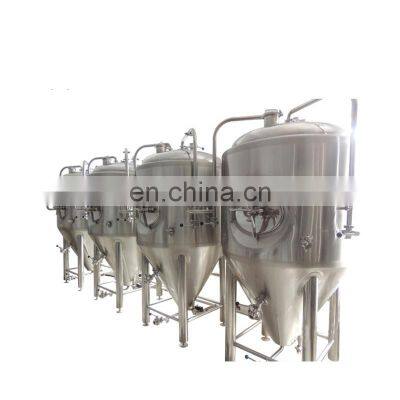

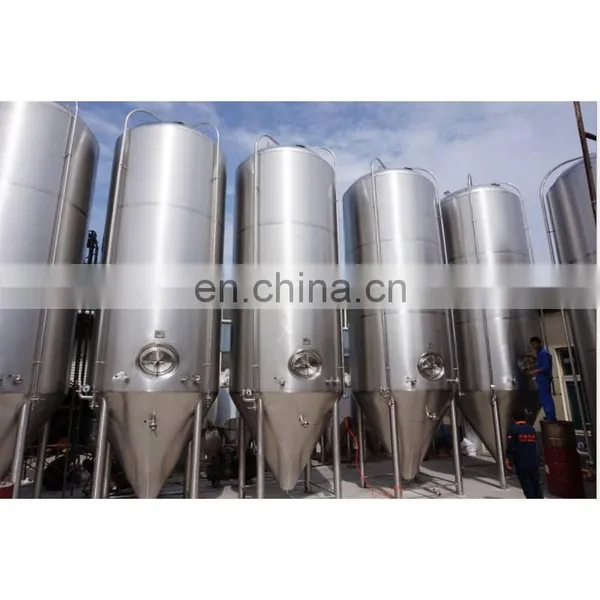

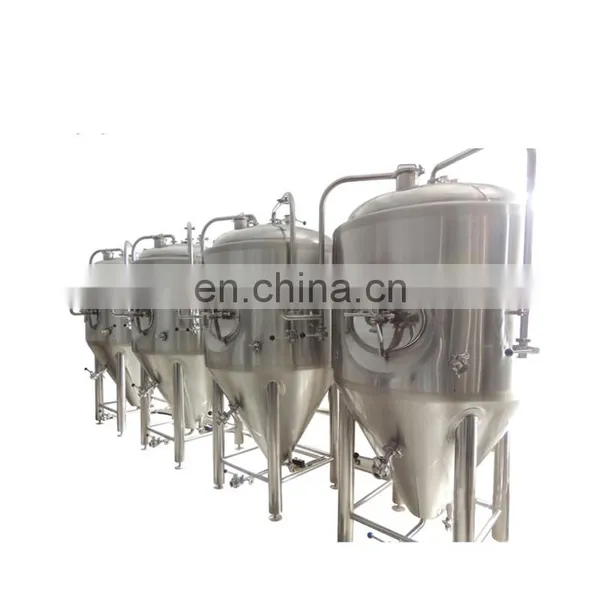

High Quality Yogurt Stirred Yogurt Processing Line Fermentation Tank
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2013
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1000L Fermentation Tank for Yogurt Processing LineNegotiableMOQ: 1 -
GYC-20 Sweetened Condensed Milk Processing EquipmentNegotiableMOQ: 1
-
GYC-20 Palm Oil Margarine MachineNegotiableMOQ: 1
-
GYC-20 Edible Oil Margarine Making MachineNegotiableMOQ: 1
-
GYC-20 Liquid Palm Oil Margarine Making Machine Shortening Production LineNegotiableMOQ: 1
Product Description
Fermentation tanks are widely used in the dairy industry, food, pharmaceutical, chemical, beverage and other industrial sectors. As the required equipment for heating, cooling, heat preservation, sterilization treatment or storage of slurry, especially pasteurization and heat preservation, it is the required equipment for the ice cream production line.
Fermentation tank is a kind of equipment for mechanically stirring and fermenting materials. The equipment adopts the form of internal circulation and uses agitating paddles to disperse and break air bubbles. Its dissolved oxygen rate is widely used in the fermentation of materials in the pharmaceutical, chemical, and food industries. The material is made of stainless steel, the inner surface is mirror polished, and the outer surface is polished matt, mirrored, sandblasted or cold-rolled primary color matt.
Fermentation tank refers to a device used for microbial fermentation in industry. The main body is generally a main cylinder made of stainless steel plate, with a volume of 0.05m3 to hundreds of m3. In the design and processing, the structure should be tight and reasonable. It can withstand steam sterilization, has certain operating flexibility, has as few internal accessories as possible (dead corners), has strong material and energy transfer performance, and can be adjusted to facilitate cleaning and reduce pollution. It is suitable for the production of a variety of products and reduces energy. Consumption.
Specification
Capacity |
300L |
400L |
500L |
600L |
800L |
1000L |
1500L |
2000L |
3000L |
||||||||
Tank diameter（mm） |
φ800 |
φ800 |
φ900 |
φ1000 |
φ1000 |
φ1200 |
φ1300 |
φ1300 |
φ1600 |
||||||||
Tank height（mm） |
600 |
800 |
800 |
800 |
1000 |
1000 |
1200 |
1500 |
1500 |
||||||||
Motor power(Kw) |
0.55 |
0.55 |
0.55 |
0.55 |
0.75 |
0.75 |
1.5 |
2.2 |
3 |
||||||||
Mixing speed(rmp) |
36rpm |
||||||||||||||||
Working pressure |
≤0.09Mpa |
||||||||||||||||
Working temperature |
＜100℃ |
||||||||||||||||
Main parts |
Thermometer, safety valve, pressure gauge, etc. |
||||||||||||||||
Details Images
Oval manhole
Holes on the medium position, no need to climb to clean
Stronge basement foot
High quality stainless steel basment
Jacket tank
Honeycomb type jacket tank, for better heating exchange.
Company Profile
Shanghai Genyond Technology Co., Ltd belongs to GENYOND MACHINERY INDUSTRIAL GROUP. We are a group company which has 6 factories in China.
We specialize in food machine, medicine machine and packing machine.
Our main products include the following products:
snacks making machine (cake, biscuit, candy, chocolate and so on);
dairy processing line;
fruits and vegetable deep processing line (chips, canned food, juice, wine, vinegar, paste, jam, powder, candied food, pickles, frozen food, Dehydrated vegetable and so on);
vegetable pre-processing line (washing, sorting, cutting, pitting, peeling, blanching and so on.)
fish, meat and egg processing line (canned fish, canned meat, egg cleaning sorting packing, egg liquid and egg powder and so on)
nuts processing line (coffee powder, nuts milk, nuts butter, paste and so on)
grain and oil processing line (grain flour, starch, food oil and so on)
food packing line
extracting equipment & pharmaceutical equipment.
We have been in the design and production of food machine and medicine machine for more than 20 years. Our machines have been exported to more than 100 countries.
Our advantage is to offer you turnkey project. Our rich experience can help you on food production. We not only offer you the machine but also the processing technology and service on food and medicine production.
You just need to give us an idea on food production and we will make different proposals to help you to get the best solution on design, price and installation.
You are always welcome to visit us, we offer the free service on airport pickup, hotels, travelling in China.
