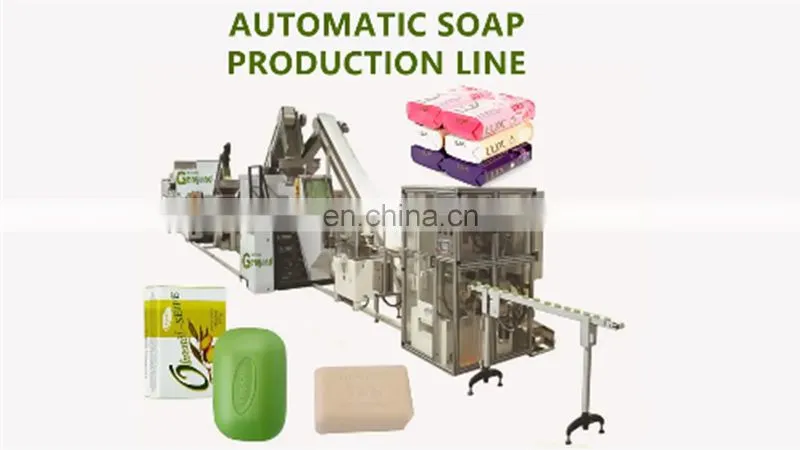

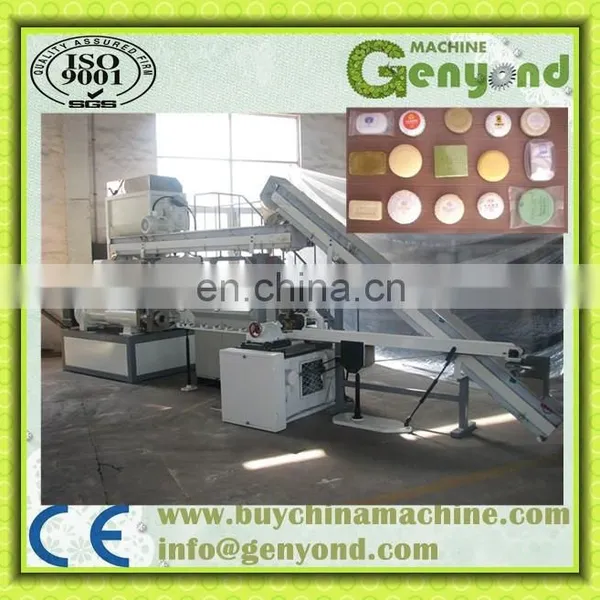

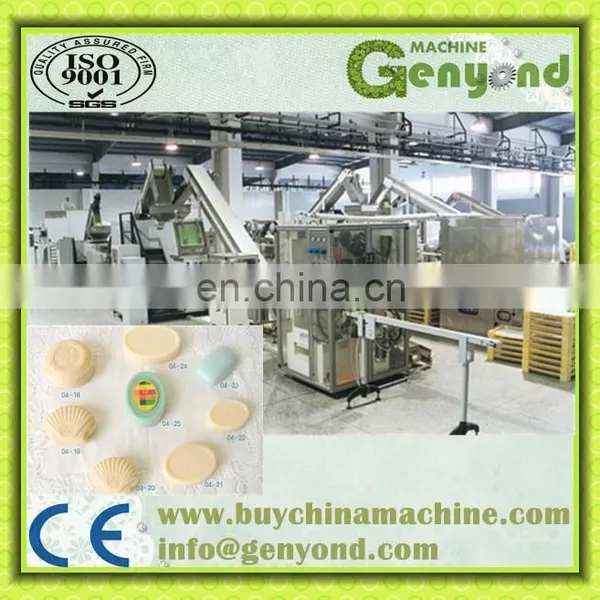

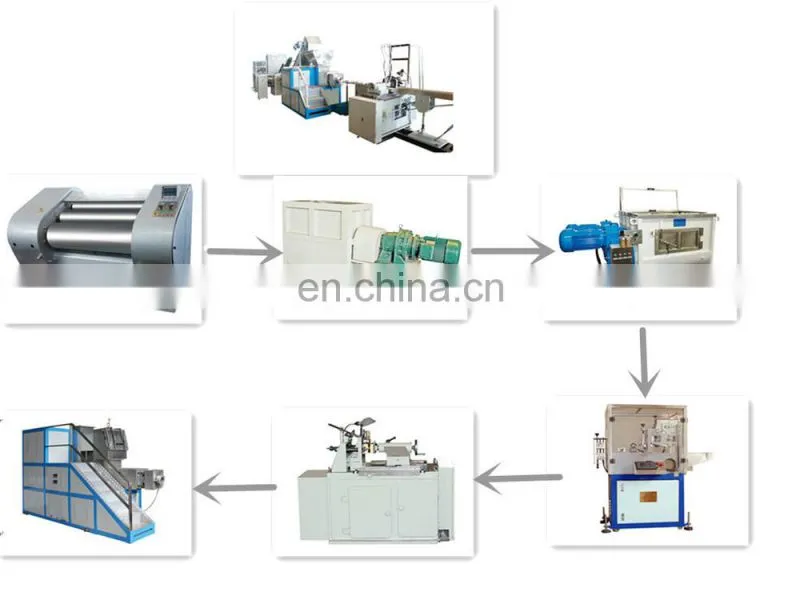

Complete soap production line regard soap noodles as raw materials, starting with mixing soap noodles, then the mixed soap noodles enters in the three rollers mill by conveyor belt, where soap thin sheets are made. The soap thin sheet then converted into desired long strip soap by the plodder machine.Then the long strip soap are cut into the soap bars required size by cutting machine(there are two kinds of cutting machine.One is mechanical.The other is automatic).
At the end, the soap bars gets packed by packing machine if needed.

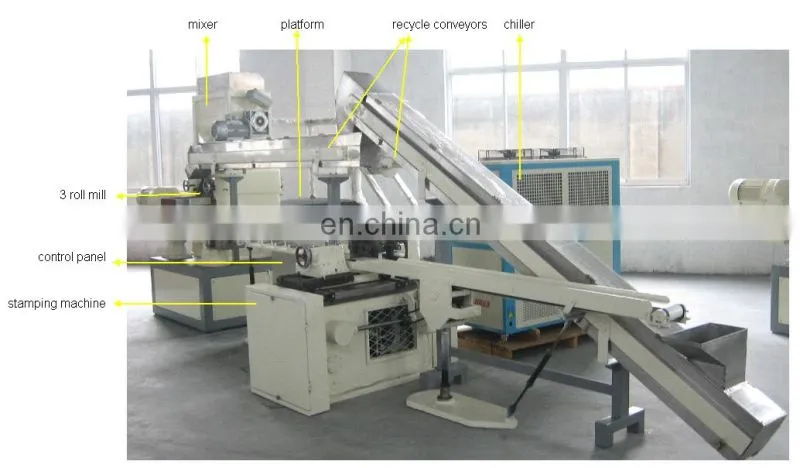

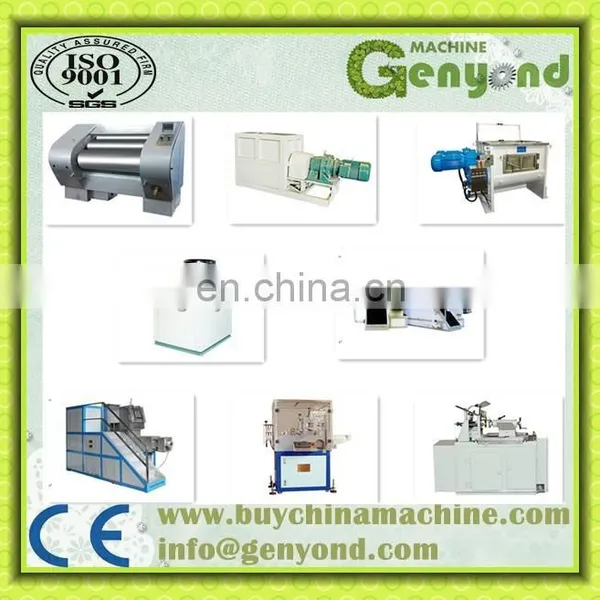

Main Machines involved for making laundry soap

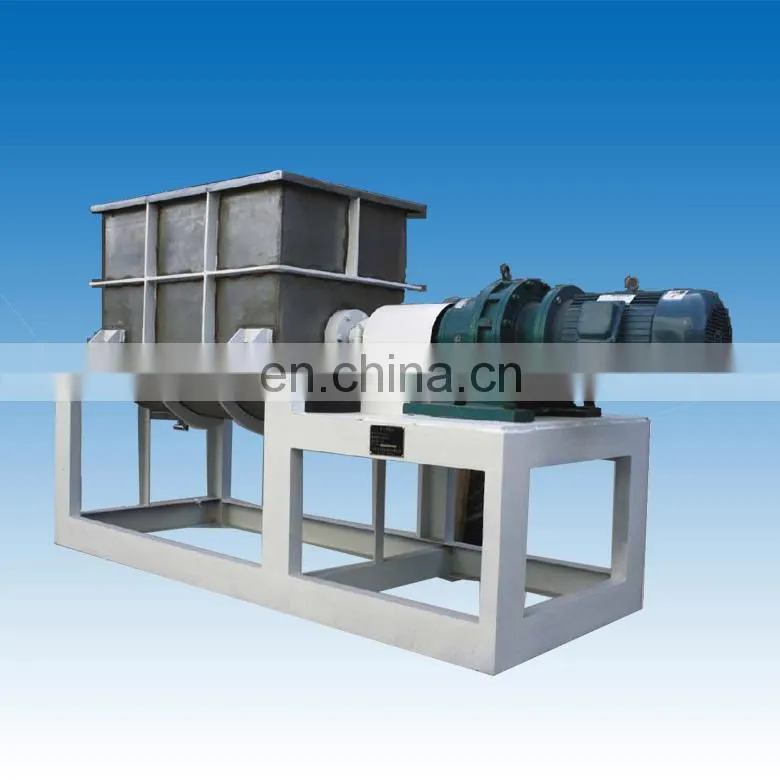

1. Mixer
Used for mixing soap noodles.

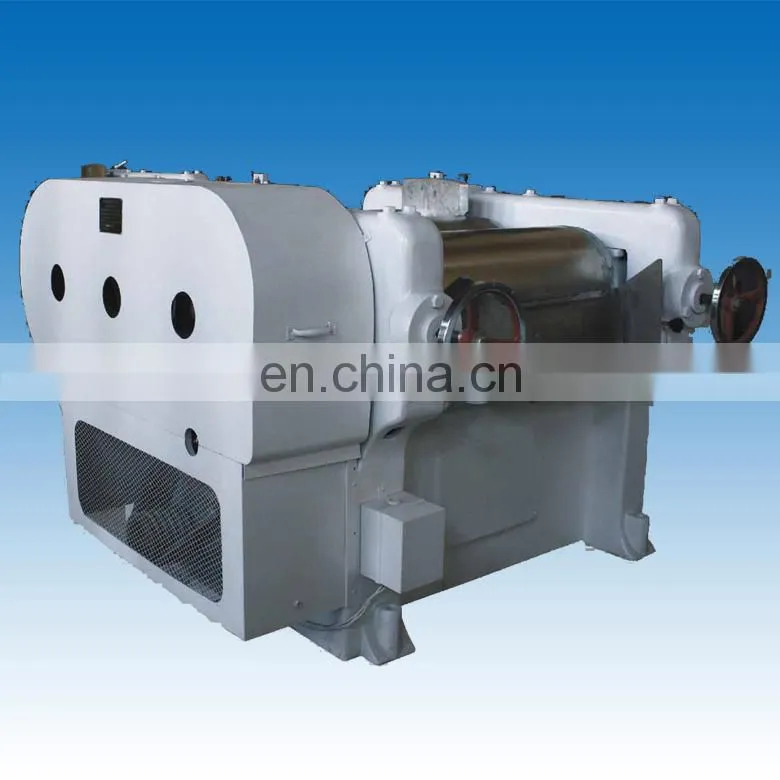

2. Three Roller Mill
Used for grinding soap noodles into thin sheets.

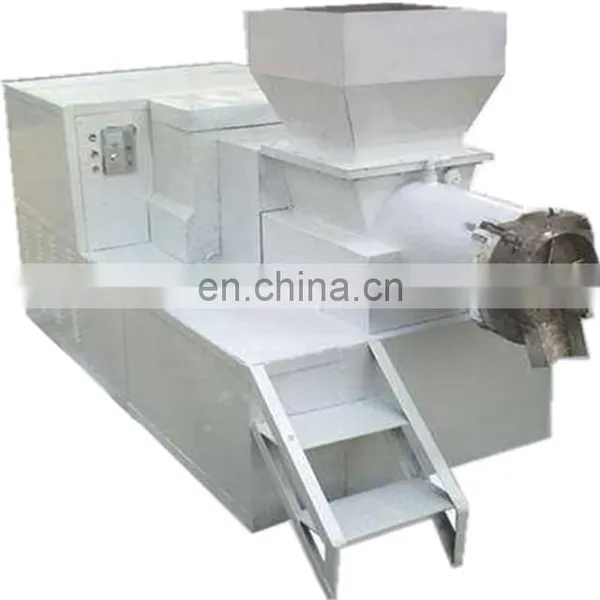

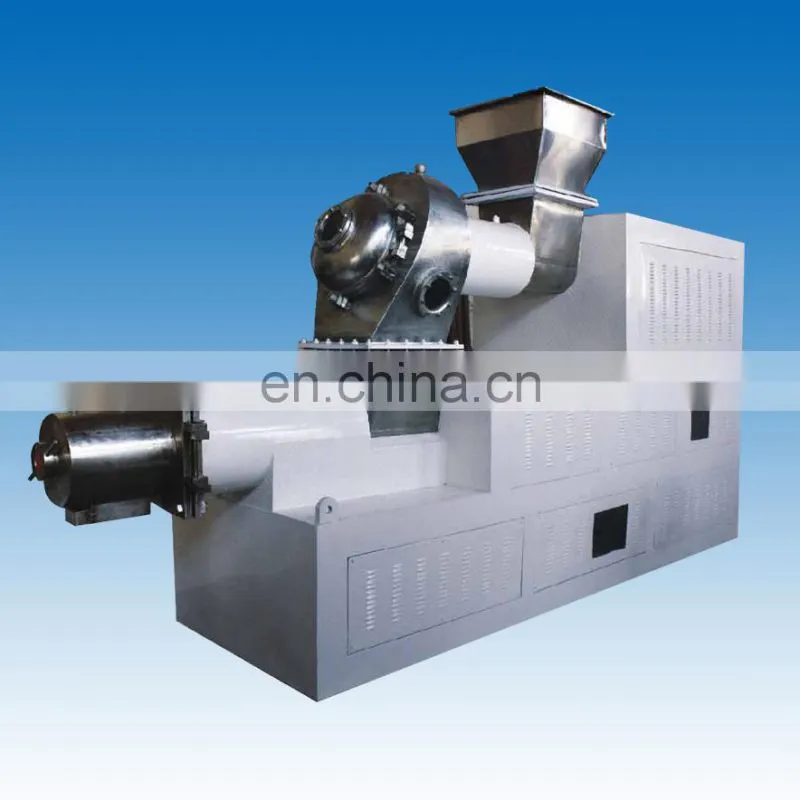

3. Plodder (Extruder) Machine
Used for molding the sheets into long strip soap of required shape.

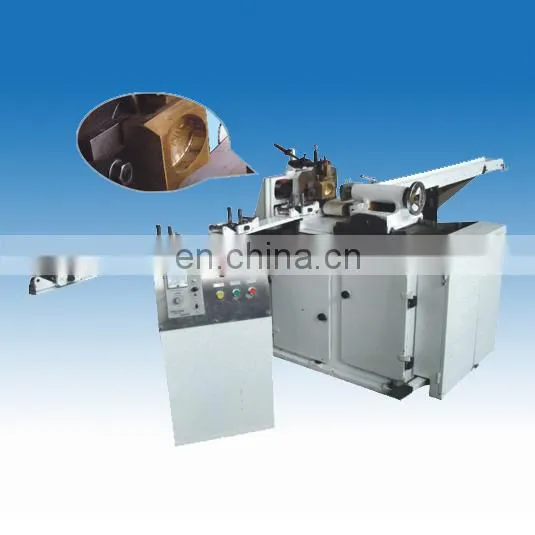

4. Stamping Machine & Cutting Machine
Used for stamping or cutting long strip soap into individual soap bar that is desired size and shape .
5. Packing machine:
individually packed in plastic wrapper,or loose-packed (such as 5bars) in one shrinkage bag.
Available complete set of laundry soap making machine with capacity from 100KG/Hour to 3,000KG/hour.
Our machine is a multifunctional designed, and they can produce the laundry soap, toilet soap, translucent soap etc. They are also suitable to produce pilot soap, hotel soap and perfume sample.
Technical parameter:
|
Model |
GYS-100 |
GYS-300 |
GYS-500 |
GYS-1000 |
GYS-2000 |
GYS-3000 |
|
Production Capacity |
100 kg/h |
300 kg/h |
500 kg/h |
1000 kg/h |
2000 kg/h |
3000 kg/h |
|
Mixing volume |
0.25 m3 |
0.5 m3 |
0.4 m3 |
0.8 m3 |
1.2 m3 |
2 m3 |
|
Power of mixer |
2.2 kw |
7.5 kw |
3 kw |
5 kw |
7 kw |
9 kw |
|
Discharge mode |
manual |
electric |
electric |
electric |
electric |
electric |
|
Power of discharge |
---- |
0.55kw |
0.55kw |
0.55kw |
0.55kw |
0.55kw |
|
Diameter of rollers |
150mm |
260mm |
260mm |
260mm |
260mm |
260mm |
|
Length of rollers |
300mm |
670mm |
670mm |
670mm |
670mm |
670mm |
|
Power of mill |
4 kw |
11 kw |
11 kw |
11 kw |
11 kw |
11 kw |
|
Diameter of screw |
150mm |
200mm |
250mm |
250mm |
250mm |
250mm |
|
Power of plodder |
5.5 kw |
11 kw |
15 kw |
15 kw |
15 kw |
15 kw |
|
Soap weight |
15g-200g |
15g-200g |
20g-250g |
20g-300g |
20g-300g |
20g-350g |
|
Power of stamping machine |
3 kw |
3 kw |
3 kw |
3 kw |
3 kw |
3 kw |
GENYOND MACHINERY INDUSTRIAL GROUP
It has 6 factories in China for food machine and packing machine.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Genyond machine has more than 100 engineers for the installation of oversea projects.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly.
A satisfying project will be given; A long-term cooperation will come.
