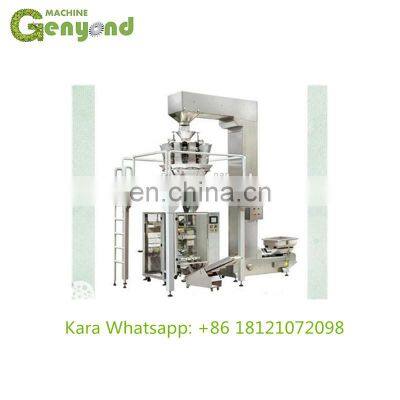

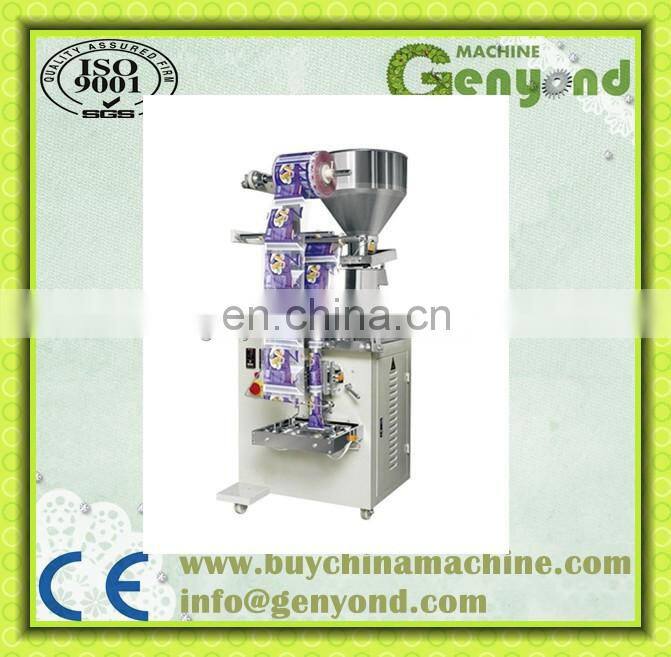

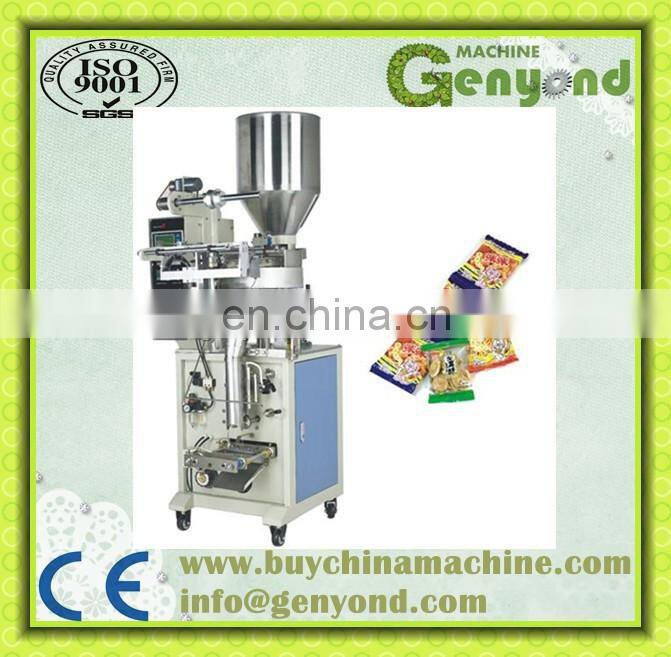

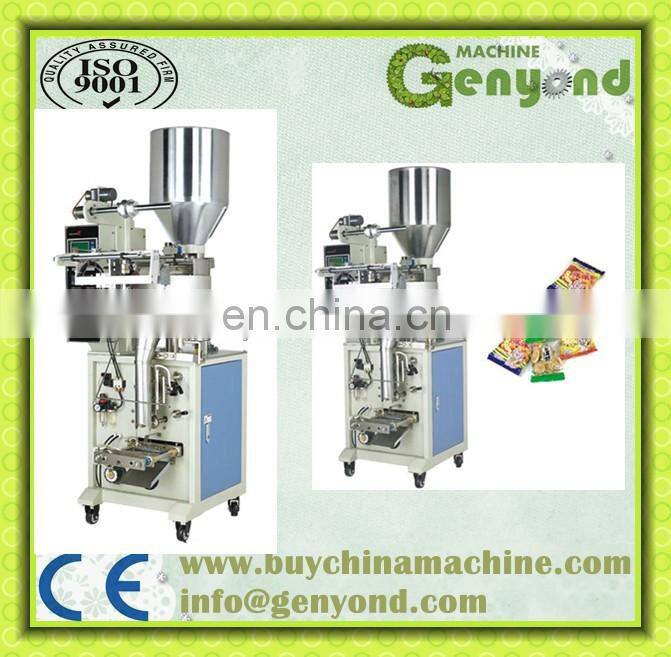

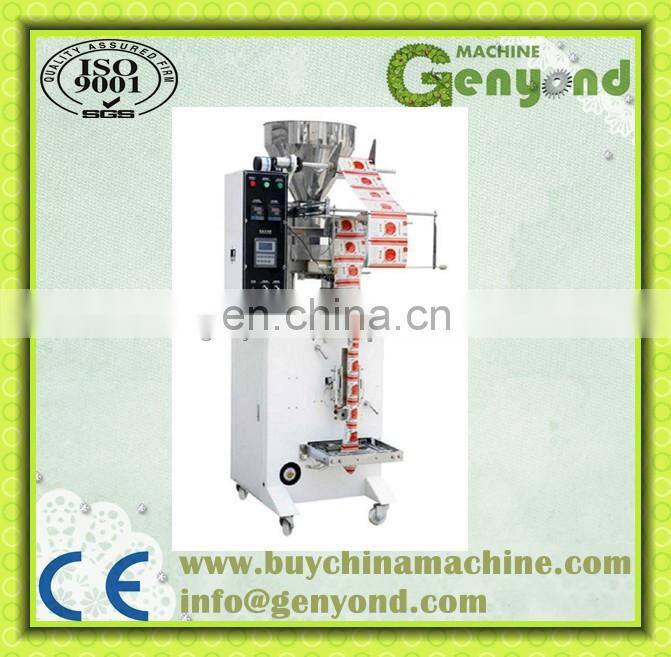

Vertical Bag Packing Machine/Grain Vertical Small Packing Machine
Introduction and characteristics:
1. The machine is featured with compact structure, durable, logical design and Precise.
2. It adopts light sensor control system, and is featured with reliable, stable performance.
3. Using VVVF, operation much more stable, low noise, with low malfunction.
4. It can finish automatically all processes, such as measuring, filling and bag marking.
5. With spring pressure knife principle, pneumatic cutting, 5 linking bags more stable
Application:
Suitable for packing puffed food, shrimp strip, peanut, cooked seeds, rice, seed, monosodium glutamate, popcorn and other grain, strip and flake shaped solid material.
Technique specification:
Machine model |
GY-160 |
Max. width of coiled film |
320mm |
Bag length |
30-200mm |
Bag width |
50-150mm |
Measuring range |
50-500ml |
Packaging speed |
30-80bags/min |
External diameter of coiled material |
Max.300mm |
Packing film thickness |
0.04-0.08mm |
Power supply specification |
220B50Hz.2kw |
Machine weight |
350kg |
Packing Material |
OPP/CPP.OPP/CE.MST/PE/PET/PE |
Other Details:
1.Package: wooden cases for sea transportation
2.Delivery time: 30 working days after receiving the deposit
3.Installation : engineers available for installation and training overseas
4.Guarantee : 12 months after it is sent out
Plz feel free to contact me for any further information.
