Dried Cassava Chips Cassava Drying Machine
- 1000 per Month
- T/T Credit Card
- Fruit & Vegetable Processing Machine tunnel drying oven vegetable dryer cassava drying machine for sale
- cassava flour drying machine/coffee dryer/tunnel dehydrator machine
- Cassava washing machine
- Vegetable Peeler Machine/Potato Carrot Ginger Cassava Taro Skin Peeler Machine
- Yam/Cassava/Manioc industrial air classifier Ultra Fine Micron powder pulverizer Grinding equipment pin Mill milling machine
- Small Scale Corn Flakes Breakfast Cereal Making Machine
Product Description
processing line craft flow
Fresh → washing → peeling →cutting / pit removing → slicing → drying →cooling →packing
other fruit chips processing craft flow
1) washing →peeling&pit removing →slicing →sugar soaking →drying →cooing →packing
2) first drying type →sugar soaking →drying →cooling →packing
drying machine have two types machine
one is the hot air drying machine/box, the other is the belt type machine, genyond machine have expirence in the fruit and vegetable drying machines.
bellw as the hot air box/machine introduce:
Universal hot air circulation oven drying equipment belongs to adapt to a wide face, is widely used in heating the pharmaceutical, chemical, food, light industry, heavy industry materials and products, curing, drying dehydration. Such as: raw material medicine, medicine, Chinese Herbal Medicine, powders, granules, powder, the size of the pill bottles, pigments, dyes, dehydrated vegetables, dried fruit, sausages, plastic resin, electric elements, drying varnish and so on.
Features drying machine
1,hot air circulation oven wide scope, can dry various materials, is a common drying equipment.
2,Most of hot air inside the loop, high thermal efficiency, energy conservation.
3,use of forced ventilation box with adjustable air board, uniform drying, heat source can be steam, oil, electricity, hot water, far infrared, etc., a wide choice.
4,hot air circulation oven temperature to adapt to a wide range, according to user requirements, up to room temperature to 350 ℃.
5,small hot air circulation oven machine noise, smooth operation, temperature-controlled, easy installation and maintenance.

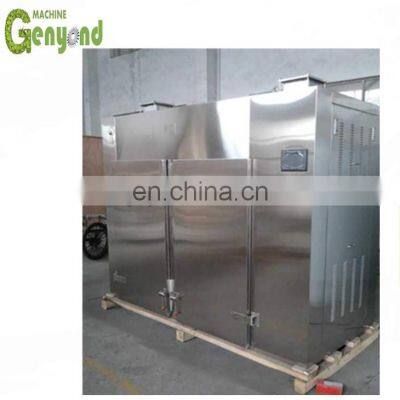

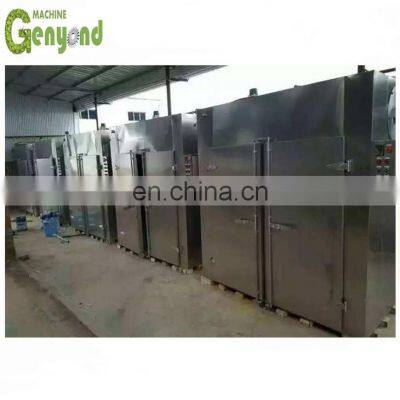

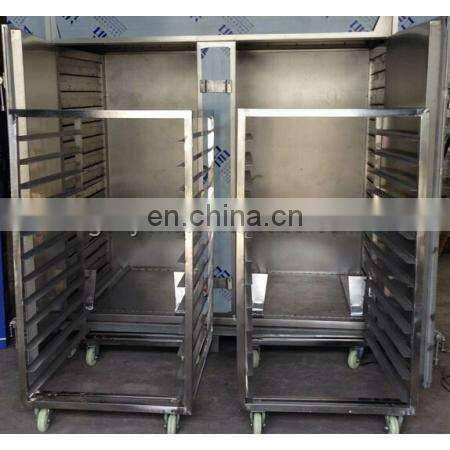

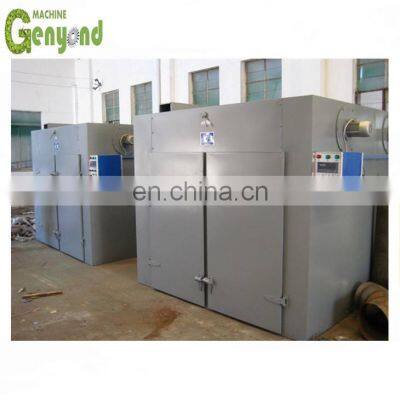

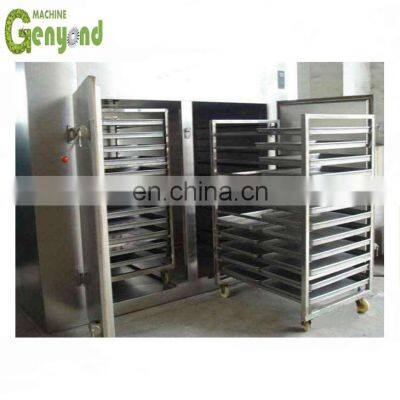

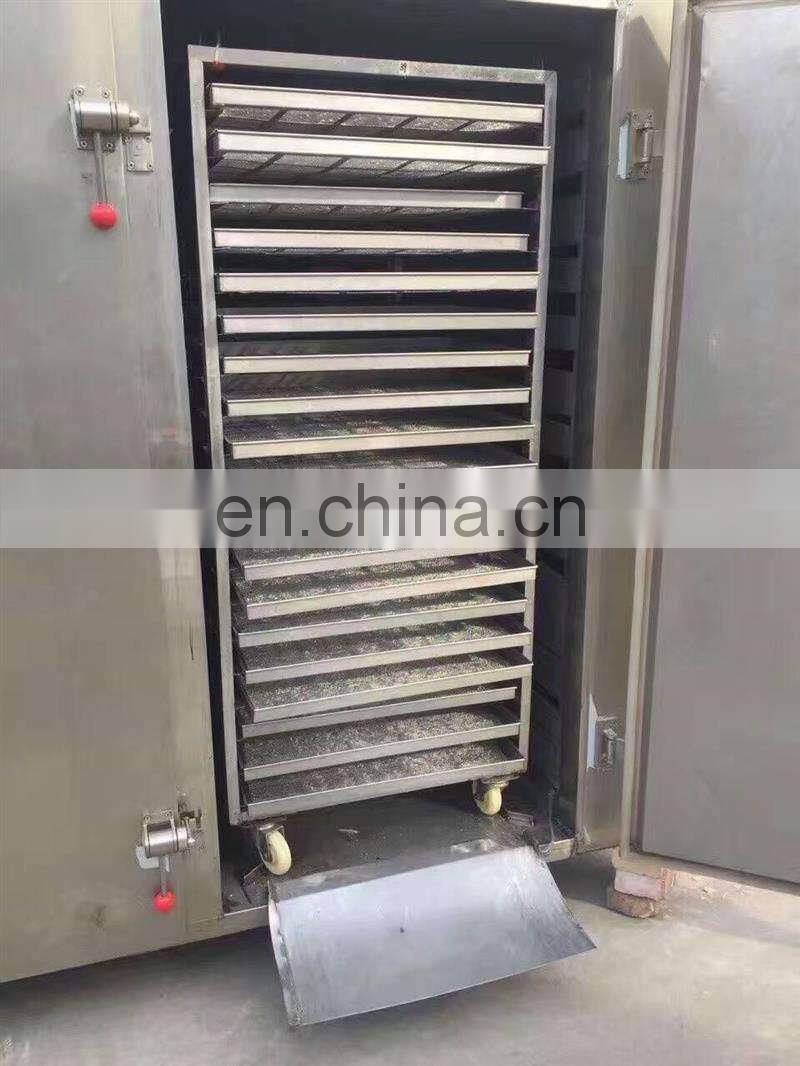

box type drying machine
model | capacity | power(kw) | gas consumption | square (m2) | wind (m3/h) | temperature (℃) | tray | size(mm) |
GCT-C | 60/batch | 0.45 | 15 | 15 | 4510 | ±2 | 24PCS | 1450×1200×2000 |
GCT-1 | 100/batch | 0.45 | 20 | 23 | 4510 | ±2 | 48PCS | 2350×1200×2000 |
GCT-2 | 240/batch | 0.45×2 | 40 | 48 | 9020 | ±3 | 96PCS | 2350×2200×2200 |
GCT-3 | 360/batch | 0.45×3 | 60 | 72 | 13530 | ±4 | 144PCS | 3310×2200×2000 |
GCT-4 | 480/batch | 0.45×4 | 80 | 96 | 18040 | ±5 | 192PCS | 4300×2200×2270 |
this drying machine is processing batch by batch, if you need the continuous processing , the belt type drying machine(click here) will be you requirement.
