Factory Genyond high speed fish meatball forming cooking processing equipment making machine
- 1000 per Month
- T/T Credit Card
- China small meat cutting machine
- egg production line/ egg washing cleaning drying printing grading production line
- GYJL Eggs washing boiling peeling machine whole line
- egg-sorting-machine egg grading production line for sale
- Egg weight sorter machine egg sorting machine for sale
- Multi-Function Egg Grading Equipment Price
Product Description

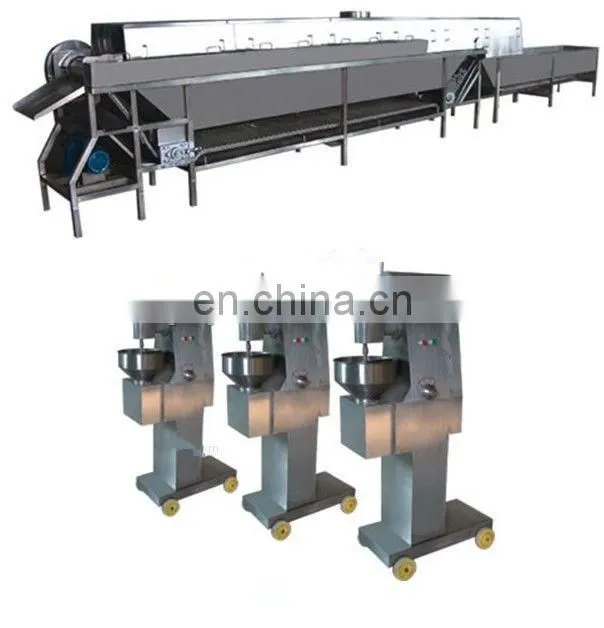

This good quality meatball production line for sale is especially designed for large meatball manufacturers. It can boil and cool various meatballs including pork balls, fish balls, vegetable balls etc.
Molding groove and cooking tank of water heated by the steam pipe between the two tank water temperature control by regulating the steam converter with high temperatureand pressure valve, forming tank water temperature about 75 degrees, cooking trough the water temperature is
90 degrees. Forming tank of water formed by the hot water circulation pump flow, flow out of the meatballs from the Meatball Machine into the water after the end of the molding groove, meatballs flow speed to control this flow process through the control valve controlling water flow rate purpose of technology to make the meatballs to achieve the desired forming.
Formed fish ball need the digester tank for further cooking, then move to the end of the cooking groove by dial plate.
Different kinds ofporkball will need to be cooked for different time , and controlled by the regulating the speed of the dial plate.
Through the chain of transmission to the cooling tank pork balls to be rapidly cooled in the cooling tank, cooling water tank is open,that is, into the cold water and the overflow of hot water cooling tank water temperature
is always 20 degrees -25 degrees.
Frozen workshop hanging ice frozen meatballs directly into the cooling tank cooling.
Features:
1. The whole line is made of SUS 304 stainless steel.
2. The convey is drive by chain.
3. Sectional type automatic temperature control.
4. Second time screening function.
5. Adjustable boiling speed and water speed.
6. High safety and easy operation
Equipment list:
1. Meatballs molding groove
2. Cooking groove
3. Colding groove
4. The steam piping and water circulation system
5. Electrical control system
6. Tank insulation solutions
7. Other accessories
(1) Screen cover
(2) Water drain valve
(3) Cooling tank
Main parameter:
Model |
RW-2 |
RW-4 |
RW-6 |
RW-8 |
Power(kw) |
1.65 |
2.05 |
3.3 |
3.3 |
Meatball machine |
2 |
4 |
6 |
8 |
Material |
Stainless stell |
|||
Capacity(ton) |
2-4 |
4-6 |
6-10 |
14-16 |
Voltage |
380V / 50HZ |
|||
Frequency |
Variable frequency infinitely adjustable-speed / PLC control |
|||
External size(mm) |
5500*560*1000 |
9500*560*1200 |
135000*760*1250 |
17500*760*1250 |
GENYOND MACHINERY INDUSTRIAL GROUP
It has 6 factories in China for food machine and packing machine.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Genyond machine has more than 100 engineers for the installation of oversea projects.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly.
A satisfying project will be given; A long-term cooperation will come.
Company Profile
Shanghai Genyond Technology Co., Ltd. is a manufacturer of extracting unit and fruit & vegetable processing line with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and beverage and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
