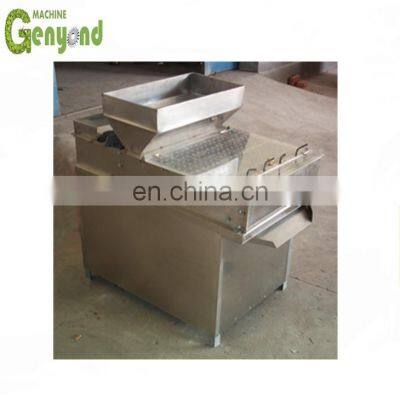

Ground nut peanut butter/paste grinder machine is using different shape of stators and rotors, crushing under the high circumgyration. Grinding the material through cutting, milling, high- frequent-shaking. The distance between stators could be adjusted and grinding by recirculation. This machine has many advantages. Compacted structure, stable working, low noise, rust-proof, easy to clear and maintain.
We can get smooth and fine butter by this machine.

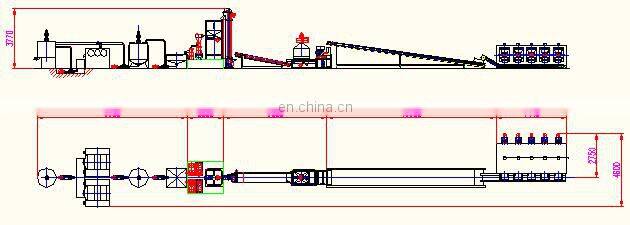

Processing flow chart
raw materials(peanut) → stone and foreign matters remover → Baking → Cooling→ peeling → picking → coarse grinding → deployment → fine grinding → cooling → degassing → filling .

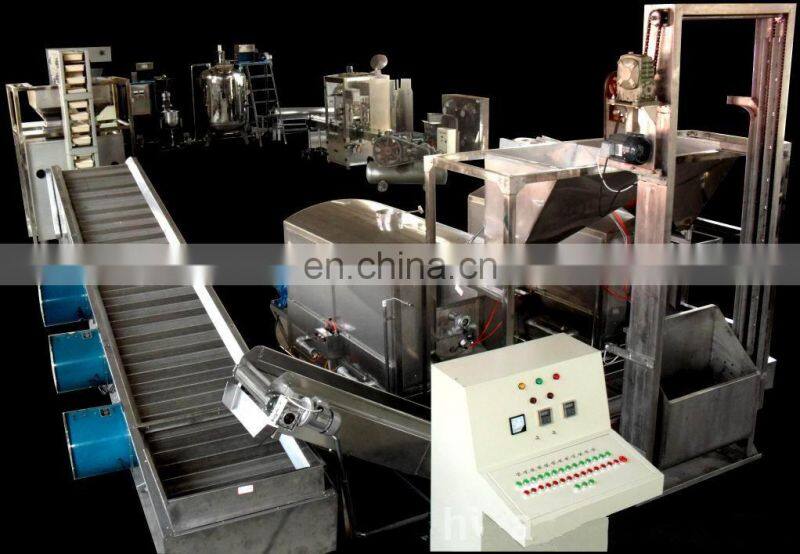

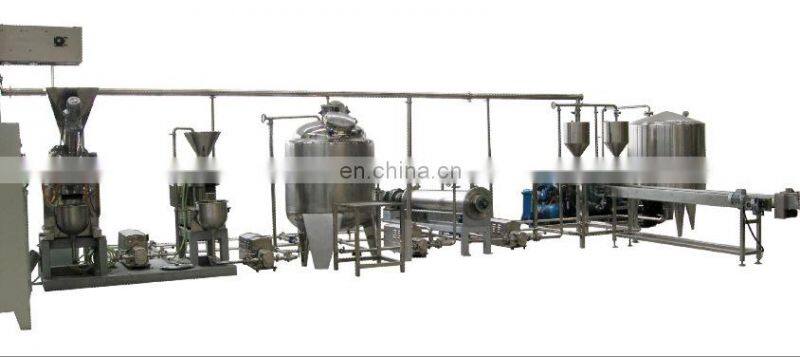

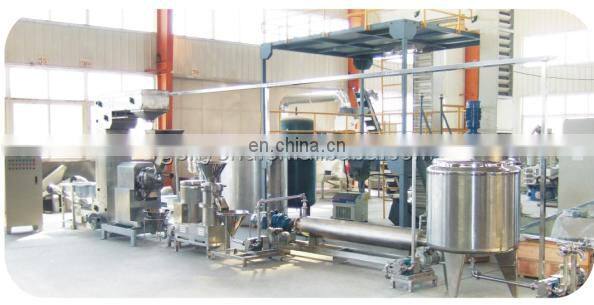

Equipment list:
Oven baker, cooling zone, peeling machine ,conveying picking belt , coarse grinder , ultrafine grinder , condensing machine , gas removing tank , filling machine .
Brief Introduction of each machine
1,Oven baker: to bake peanuts.
2,Cooling zone: use the principle of pulled out of heat by the fan , cooling the baked peanut .
3,Peeling machine: peeling the peanuts after drying and baking, in the process peanut meat and skin automatically separated to ensure t4,he quality of peanut after peeling .
5,Conveying picking belt: selection of the unqualified peanut and food debris .
6,Coarse grinder: grinding peanuts initially.
7,Ultrafine grinder: after coarse grinding peanuts for further grinding, to further improve the processing fineness.
8,Condensing machine: the cool grinded peanut butter .
9,Gas removing tank: degassing before filling the peanut butter .
10,Filling: The filling and packaging.
Model of the peanut butter&paste processing machine/line
|
Model |
GY-80 |
GY-130 |
GY-180 |
GY-240 |
|
Output size |
2-50 Micro |
2-50 Micro |
2-50 Micro |
2-50 Micro |
|
Capacity |
30-40kg/h |
200-250kg/h |
400-450kg/h |
1000-1500kg/h |
|
Voltage |
380v,50hz |
380v,50hz |
380v,50hz |
380v,50hz |
|
Power |
4kw |
15kw |
22kw |
37kw |
|
Die of rotor |
80mm |
130mm |
180mm |
240mm |
|
Size (mm) |
685*335*928 |
975*456*1054 |
981*471*1124 |
1319*500*1276 |
|
Weight(kg) |
210 |
400 |
420 |
1300 |
GENYOND MACHINERY INDUSTRIAL GROUP
It has 6 factories in China for food machine and packing machine.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Genyond machine has more than 100 engineers for the installation of oversea projects.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly.
A satisfying project will be given; A long-term cooperation will come.
