Shanghai Food Processing Machines Complete Ground Nut Processing Machines
- T/T Credit Card
You May Like
-
Groundnut Roasting Machine Grinding Machine
-
Small Scale Peanut Butter Production Plant / Peanut Butter Processing Machine
-
Complete Shredded Coconut Processing Plant
-
Industrial Instant Coffee Powder Processing/production Line
-
Shanghai Factory Spray Dried & Freeze Dried Granule Instant Coffee Powder Processing Plant Production Machine/equipment/ Line
-
Ground Coffee Powder Production Line
Product Description

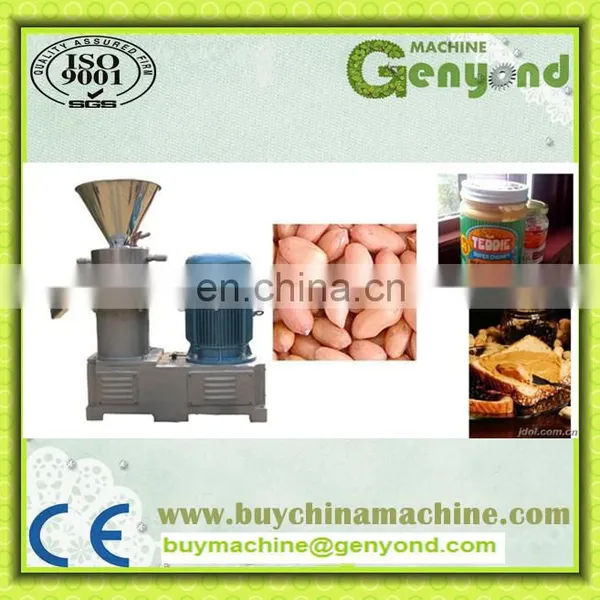

Ground nut peanut butter/paste grinder machine is using different shape of stators and rotors, crushing under the high circumgyration. Grinding the material through cutting, milling, high- frequent-shaking. The distance between stators could be adjusted and grinding by recirculation. This machine has many advantages. Compacted structure, stable working, low noise, rust-proof, easy to clear and maintain.
We can get smooth and fine butter by this machine.

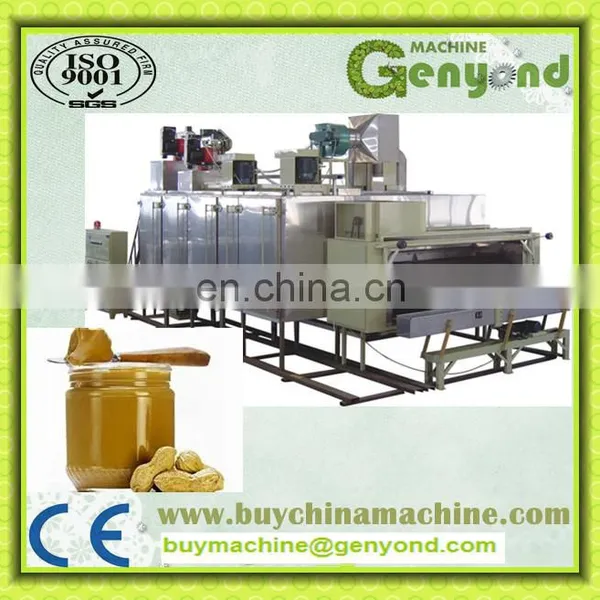

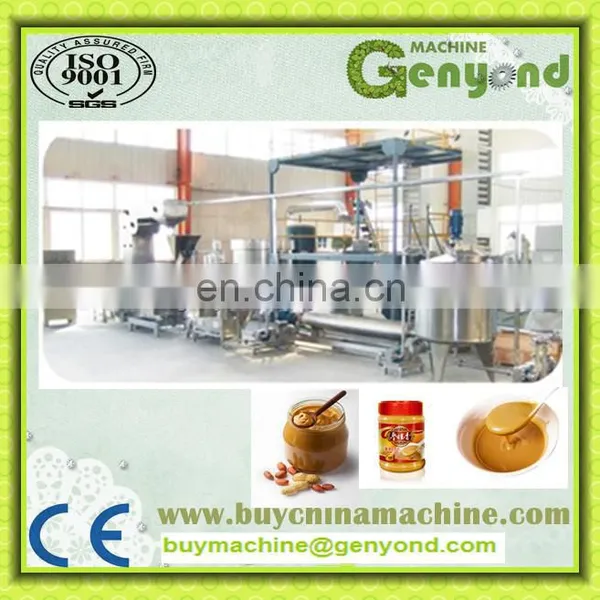

Processing flow chart
raw materials(peanut) → stone and foreign matters remover → Baking → Cooling→ peeling → picking → coarse grinding → deployment → fine grinding → cooling → degassing → filling .
Equipment list:
Oven baker, cooling zone, peeling machine ,conveying picking belt , coarse grinder , ultrafine grinder , condensing machine , gas removing tank , filling machine .
Brief Introduction of each machine

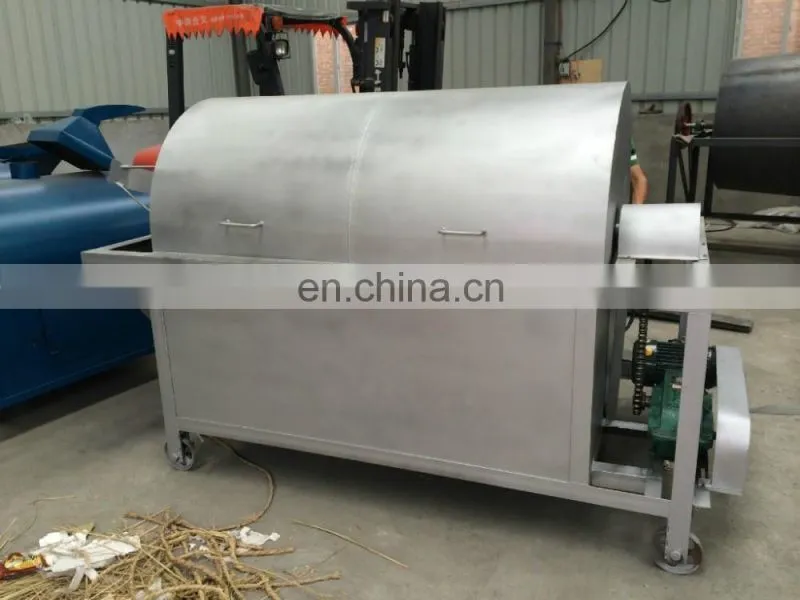

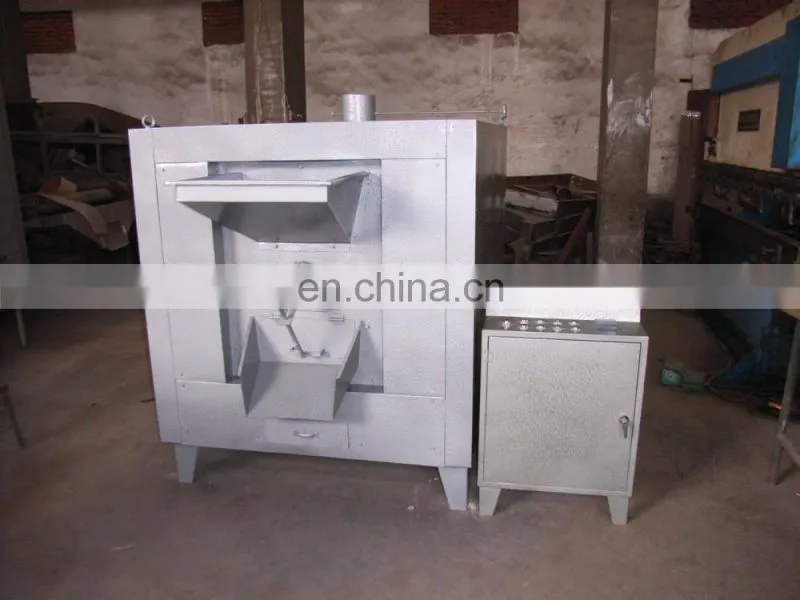

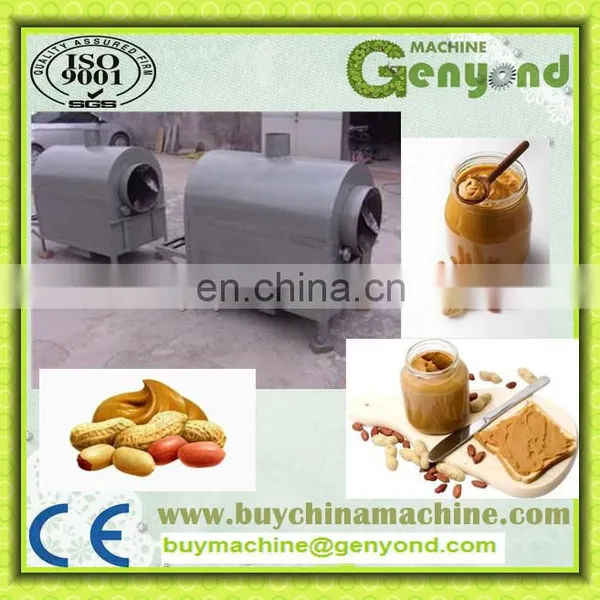

1,Oven baker: to bake peanuts.
2,Cooling zone: use the principle of pulled out of heat by the fan , cooling the baked peanut .
3,Peeling machine: peeling the peanuts after drying and baking, in the process peanut meat and skin automatically separated to ensure t4,he quality of peanut after peeling .
5,Conveying picking belt: selection of the unqualified peanut and food debris .
6,Coarse grinder: grinding peanuts initially.
7,Ultrafine grinder: after coarse grinding peanuts for further grinding, to further improve the processing fineness.
8,Condensing machine: the cool grinded peanut butter .
9,Gas removing tank: degassing before filling the peanut butter .
10,Filling: The filling and packaging.
Model of the peanut butter&paste processing machine/line
Model | GY-80 | GY-130 | GY-180 | GY-240 |
Output size | 2-50 Micro | 2-50 Micro | 2-50 Micro | 2-50 Micro |
Capacity | 30-40kg/h | 200-250kg/h | 400-450kg/h | 1000-1500kg/h |
Voltage | 380v,50hz | 380v,50hz | 380v,50hz | 380v,50hz |
Power | 4kw | 15kw | 22kw | 37kw |
Die of rotor | 80mm | 130mm | 180mm | 240mm |
Size (mm) | 685*335*928 | 975*456*1054 | 981*471*1124 | 1319*500*1276 |
Weight(kg) | 210 | 400 | 420 | 1300 |
