Specifications
1. Vacuum freeze dryer
2.Pharmacy and food industrial equipment
3.Semi and fully automatic
Advantages:
Customize the optimum freeze drying process
Multi-national collaboration
Global freeze drying system integrative supplier
Rich experience in Vacuum and refrigeration
Completed traceability and validation
Precise control and repeatable process
1. Chamber
Special O-ring gasket
One-piece fabrication slot
All the parts contacting the products are made of AISL316L stainless steel,The surface roughness reaches Ra≤0.5um
The Inner circle of the Chamber has a smooth transition without dead corner ,no objects accumulated consider for user ,the structure is easy to clean
Option for steam sterilization or chemical sterilization
2. Door/Locker
Pneumatic cylinder with protection &reset function
Automatic locking system pins
Eccentric locker
Whole-piece fabrication
3. Condenser
316L Electro-Polished Coil
Particular evaporator design
4. Shelves
Non-Leaking design
Two-Piece structure
Mechanized-moving
Flexible and non-contaminative thermal-Vitta
5. SIP
121℃ Pure steam
Equipped with cooling water jacket,after sterilizing it can fast reduce the temparature of the chest.
Optional pneumatic door lock ,it locks automatically
Adopting imported sterilization filter to ensure the absolutely sterilized air coming into the equipment
The Chamber and various kinds of container and tube are all wrapped with imported insulating layer to efficiently avoid from heat transmission
Can carry out constant humidity control to the refrigeration humidity
Equipped with water circulation pump capable to eliminate residual water in sterilization layer
6. Refrigeration System
The freeze drier uses the best refrigeration system to freeze the product and condensate the steam produced during freeze-drying procedure.Freeze-drying technology requires the refrigeration system to keep a low temperature status for a long period of time.
7. Vacuum System
The Vacuum system of the freeze drier provides a necessary pressure environment to freeze drying procedure .cooperating with condenser ,it can reach the vacuum level required by the freeze-drying procedure. To make the system run stably under high vacuum situation ,the key point is the performance of the vacuum pump,and the valve ,seal and instrument that cooperate with the pump.
8. Control System
Superstar control system based on international advanced configuration software development
Fully automated control
Auto Leak-detecting
Optimized recipe setting
Process monitor and annumciator
Access&Linkage to windows features
Batch reports printing
Multi-language support

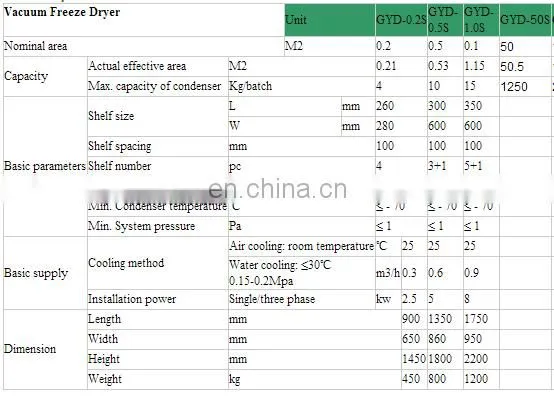

Technical parameters:
