450kg per Batch Air Circulation Drying Oven

Introduction

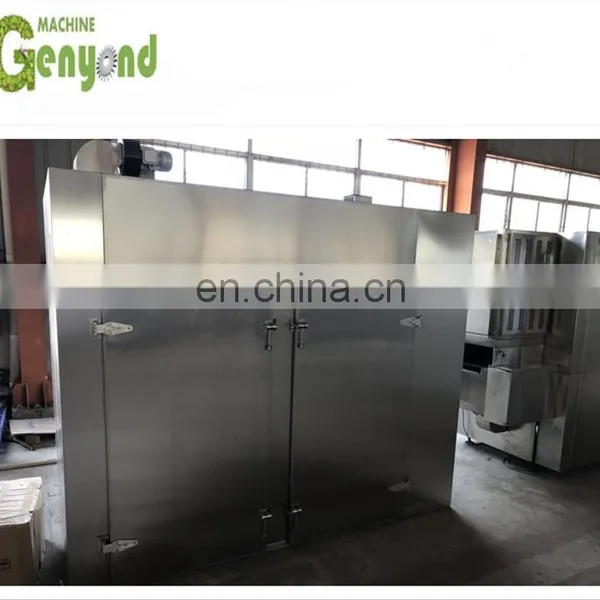

CT-C series hot air circulation drying oven, with electricity or steam as heat source, under the forced circulation of the fan, the hot air layer flows through the baking tray and the material for heat transfer, and takes away the humidity in the material, according to the different requirements of the material and The different states of the drying process, the ratio of the air discharge volume and the circulation volume can be adjusted to achieve the purpose of double the drying speed and the heat utilization rate. This is also the advantage of the hot air circulation drying oven.

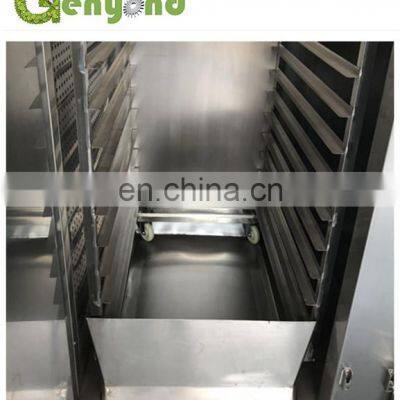

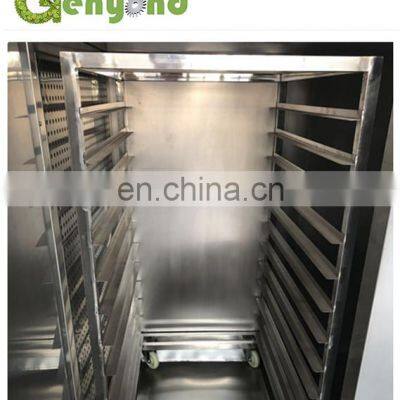

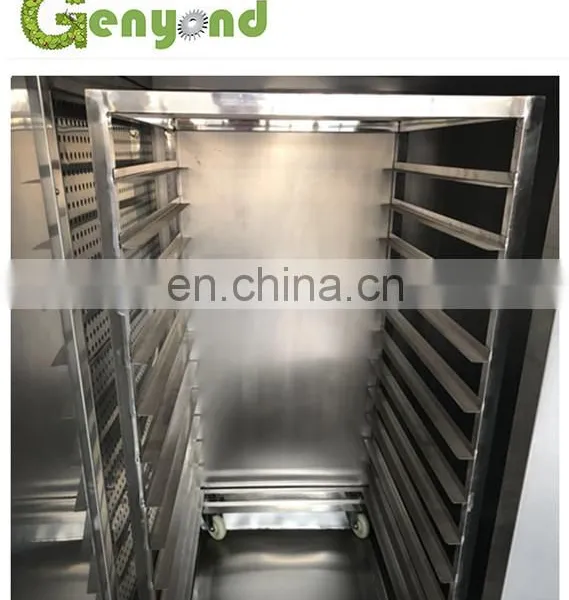

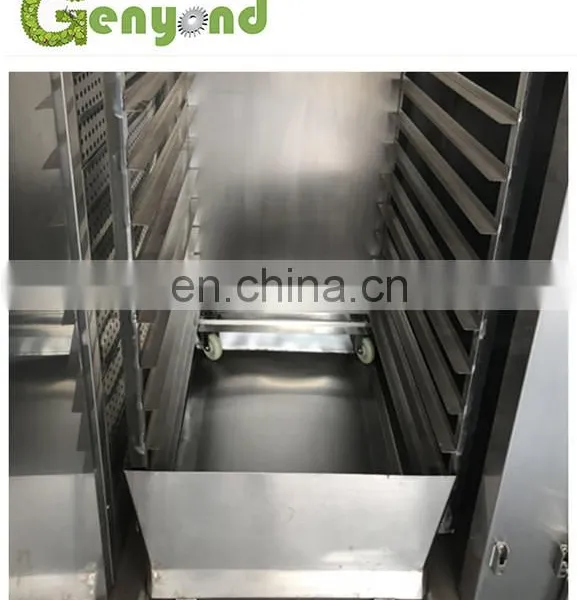

This oven is a shelf-type gap drying machine. It is a general-purpose drying equipment and is suitable for the dehumidification, solidification, and drying of finished materials in the pharmaceutical, chemical, food, light industry, and electronics industries. For example: raw material medicines, crude drugs, Chinese Herbal Pieces, Powders, Granules, Granules, Honey Pills, Pigments, Spices, Bottles, Dehydrated Vegetables, Food, Plastic Resin, Electrical Components, Drying Paint, etc.

Manufacturing requirements

1.The oven shell is made of 304 2B stainless steel matte laminating plate, riveted and shaped, no scratches on the surface, no welding trace, flat surface, flatness of 3/1000mm.
2.The inner arm of the oven is made of 3042B stainless steel, and the argon arc welded arc of the inner liner is polished. Cabinet easy to clean, smooth surface.
3.Box insulation layer filled with high-quality aluminum silicate fiber cotton, insulation layer 100mm, good insulation properties, the surface temperature must not exceed the ambient temperature 15 °C.
4.The convection wall inside the box is a blind, and the temperature inside the box is made uniform by the size of the ventilation gap of the convection wall. The uniformity of the no-load temperature in the box is ±3°C.
5.The cabinet hot air circulation adopts a low-noise axial fan, the circulating fan power is 0.55Kw/4, and the air volume is 16510m3/h, which is installed on the right side of the cabinet.
6.1 device at the top of the cabinet to remove moisture, 1 inlet for additional air inlet.
7.Oven control on the right side of the box.

Features

1.Most of the hot air is circulated inside the box, which has high thermal efficiency and saves energy.
2.With the principle of forced ventilation, there are adjustabLe air deflectors in the box and the materials are evenly dried. The heat source can be widely used in steam, hot water, electricity, and far infrared.
3.The whole machine has low noise and stable operation. Temperature control, easy installation and maintenance.
4.Wide range of applications, drying of various materials, is a general-purpose drying equipment.

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

Packaging

Standard export wooden package

Delivery

3-40 days aftert confirming, detail delivery date will be decided by the production season and oder quantity .

Company profile

Shanghai Genyond technology Co., Ltd. is belonging to GENYOND MACHINERY INDUSTRIAL GROUP. We are a group company which has six factories in China. We specialize in the production of food machine, medicine machine and packing machine. We have been focused on the design and production of food machine for more than 20 years. Our products have been exported to more than 100 countries. Our advantage is to offer you the turnkey project, and our rich experience can help you a lot at food production.
You just need to give us an idea of food production, then we will make different proposals to help you to get the best solution on the design, price and installation. You are always welcomed to visit us, we will offer you the free service of airport pickup, hotels and travel in China.
