Commercial Banana Chips Fruit Chips Vacuum Freeze Dryer

Commercial Banana Chips Fruit Chips Vacuum Freeze Dryer photo-1

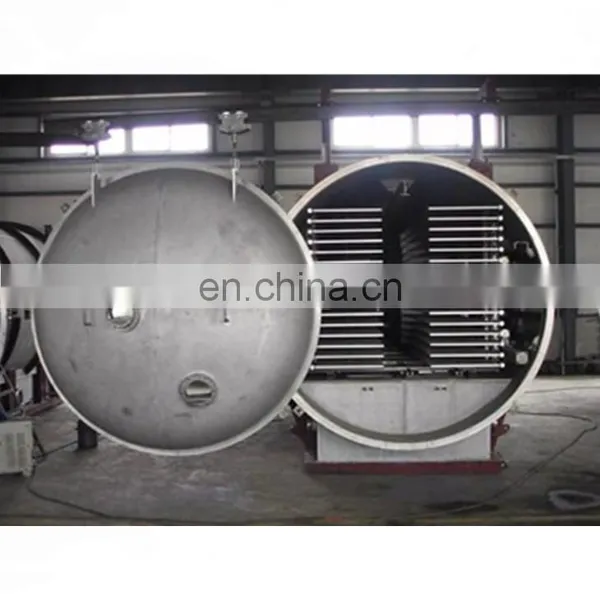

Commercial Banana Chips Fruit Chips Vacuum Freeze Dryer photo-2

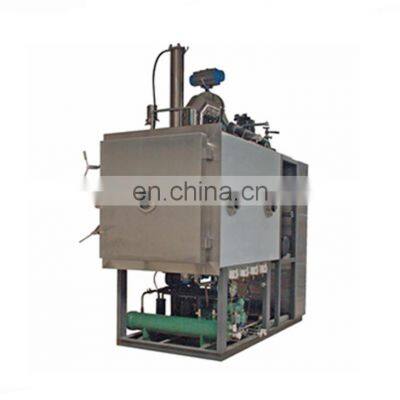

Commercial Banana Chips Fruit Chips Vacuum Freeze Dryer photo-3
Commercial Banana Chips Fruit Chips Vacuum Freeze Dryer photo-4

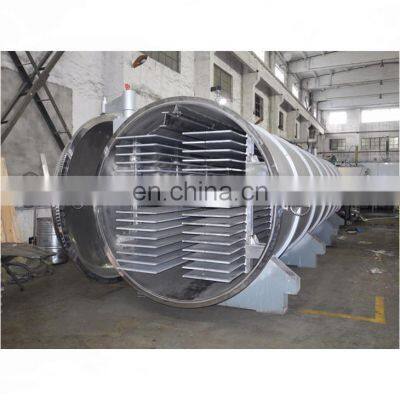

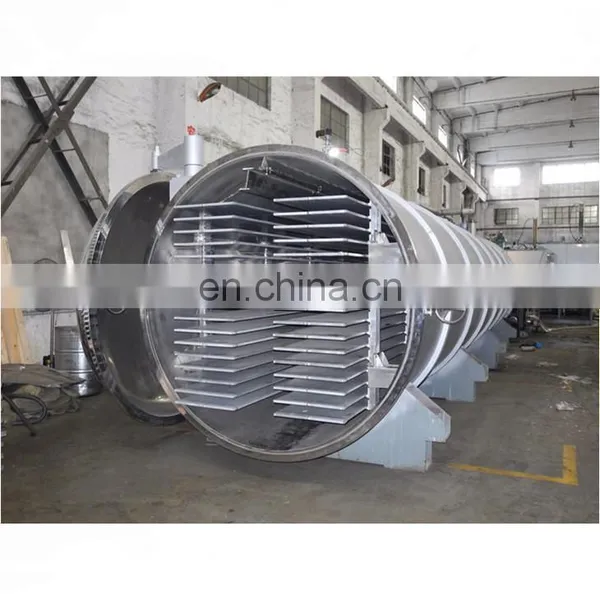

Commercial Banana Chips Fruit Chips Vacuum Freeze Dryer photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2013
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Commercial Freeze Dryer/Lyophilization Machine/Vegetable Dehydrator



Brief Introduction:

This freeze dryer is widely used in food, fruit, vegetable, fish, sea cucumer, shrimp, meat drying industry. the dried product dried by freeze dryer is with good taste, beautiful color and good shape.

The freeze dryer's working principle is based on vacuum freeze drying principle, the liquid in the material is freezed into solid shape quickly and then dried into gas type and be put out of the machine, so the material get dried.



Feature:

1).compact structure, convenient maintenance, low price, full automatic control and convenient operation;

2).multi-functional,can be used in many materials, like food, fruit, vegetable, fish, sea cucumber, etc;

3).excellent design, low energy cost.

4).quickly drying with good drying effect;



Main Technical Parameter:

Specification               Model

LG0.2

LG1.0

LG1.5

LG5

LG10

LG20

Heating Areas(m2)

0.2

0.8

1.5

5.3

10

20

Numbers of Vapor trap

Single

Single

Single

Single

Single

Single

Double

Trapping Capacity

>2kg/batch

>8kg/batch

>20kg/batch

>65kg/batch

>130kg/batch

>250kg/batch

>44kg/hr

Heating Medium

Electric

Electric

Electric

Water&electric

Water&electric

Water&electric

Water&Steam

Heating Mode

Double side radiation

Temperature range of Heating plates

Normal Temp.~+120℃

<95℃

<95℃

<95℃

Normal Temp.~+130℃

Vacuum Pressure (Pa)

20~133

Need Refrigeration Capacity (t0=-40℃,tk=-35℃) (Kw)

With Refrigeration System

18

35

44

Consumption of Steam (kg/h)

None

None

None

None

50

None

75

Electric Power Supply (Kw)

3.2

8.5

15

35

26

65

38

Tray Numbers

2

4

4

14

26

52

54

Loading Raw Material

3

8

20

>70

>130

>260

>270

 We still have other big models for you to choose.



Commercial banana chips fruit chips vacuum Freeze DryerCommercial banana chips fruit chips vacuum Freeze Dryer





Other Details:



1.Package: wooden cases for sea transportation

2.Delivery time: 30 working days after receiving the deposit

3.Installation : engineers available for installation and training overseas

4.Guarantee : 12 months after it is sent out



Plz feel free to contact me for any further information.
