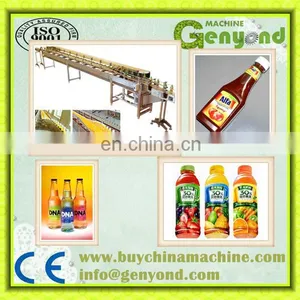

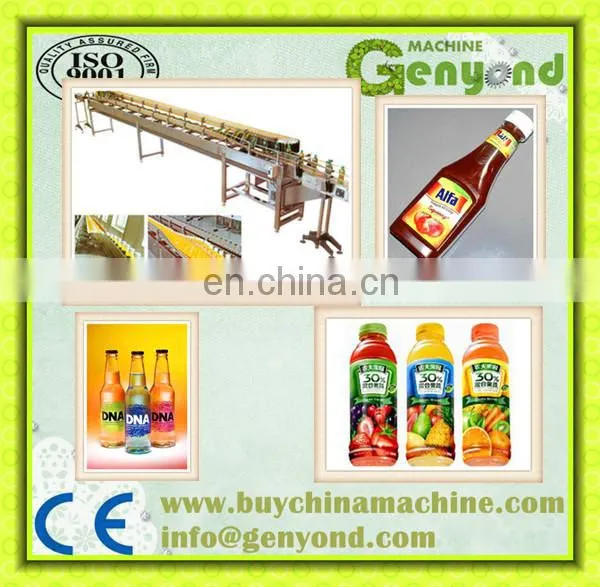

Juice Bottle inverting sterilizer

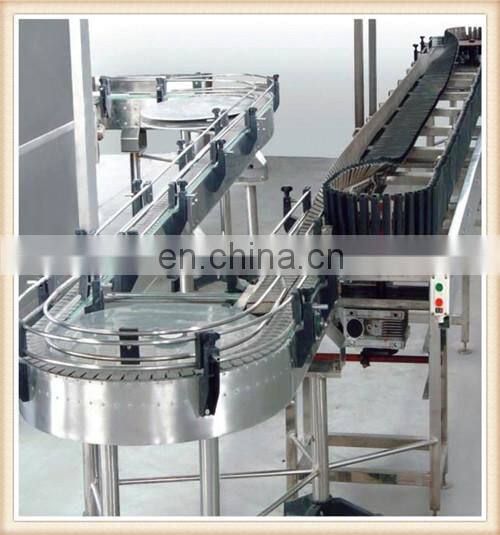

The machine is mainly used for sterilizing PET bottle mouth and inside surface of the caps

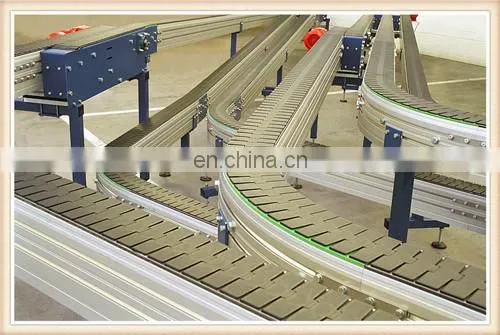

1.The machine is mainly composed of the local transmission chain system,a bottle body reversal chain system,rack,bottles flip guide,etcs
2.The machine with automatically flip sterilization ,self-reset,and the high temperature of material in the bottle carrying out disinfection during the process,do not have to add any heat source,reaching energy-saving purpose
3.The body of the machine uses SUS304 material,elegant and easy to use
Technical parameters
The juice bottle invert sterilizer is made of high quality stainless steel and other necessary material, in line with food hygiene requirements
The device dimensions: 8000 (L) X650 (W) X1250 (H); the total power: 1.75KW Sterilizing time: 15-30 seconds Output: 6000 bottles / hour
Bottle Inverter Sterilizer's Main Technical Parameter
| Model | DP-100 | DP-200 | DP-300 |
| Capacity | 4000-6000B/H | 8000-12000B/H | 12000-18000B/H |
| Application Range | Plastic bottle,glass bottle | ||
| Sterilizing Time | 30-45s | ||
| Chain Speed | 4.5-25m/min | ||
| Motor Power | 1.5kw | 1.5kw | 2.2kw |
| Dimension | 7350*731*1120mm | 8350*731*1120mm | 10350*731*1120mm |
2. products:

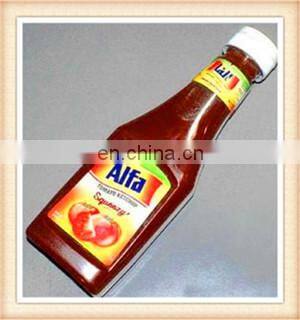

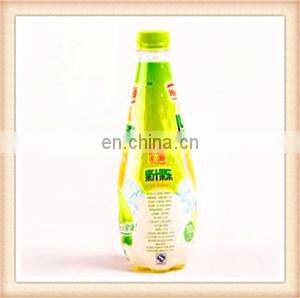

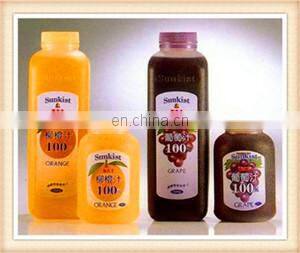

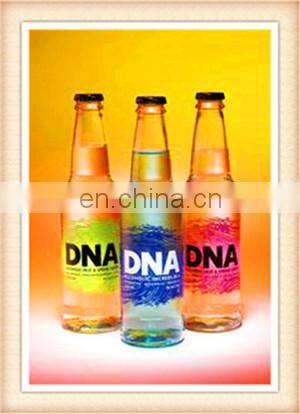

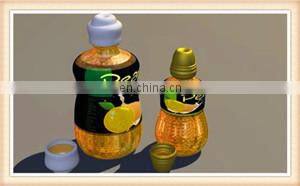

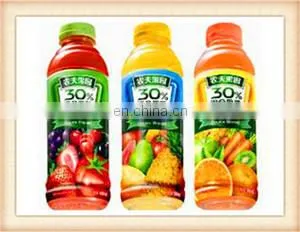

3.applications
