Description

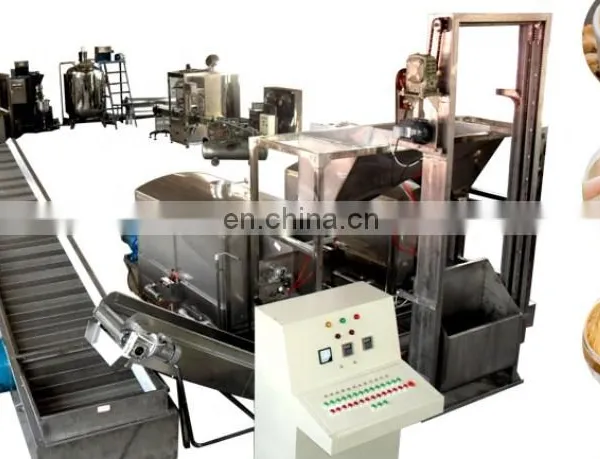

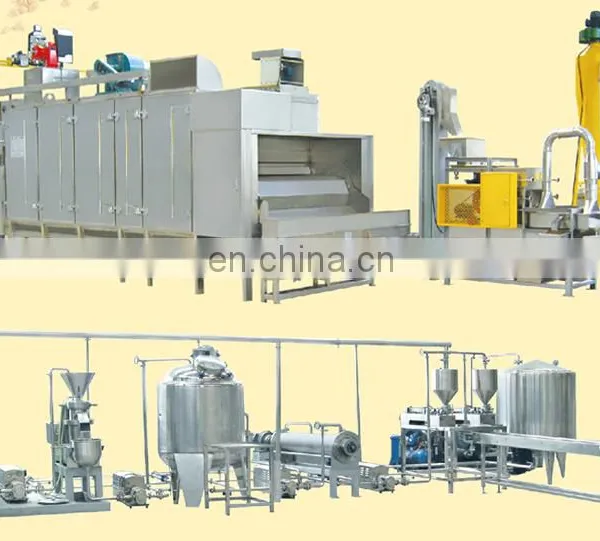

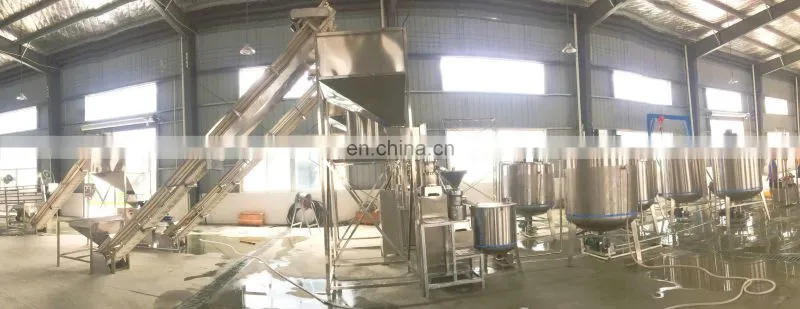

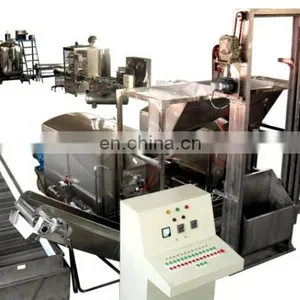

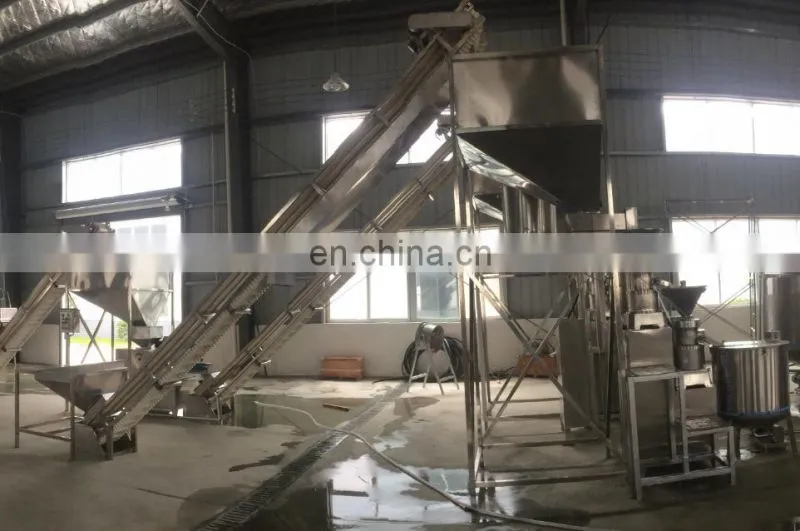

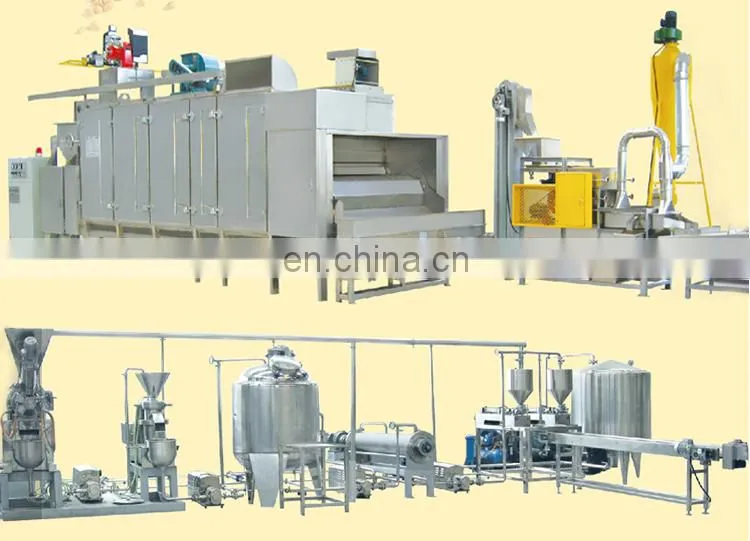

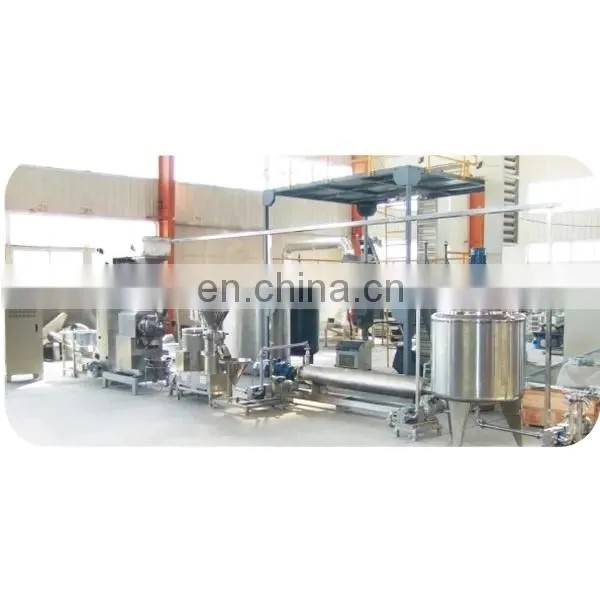

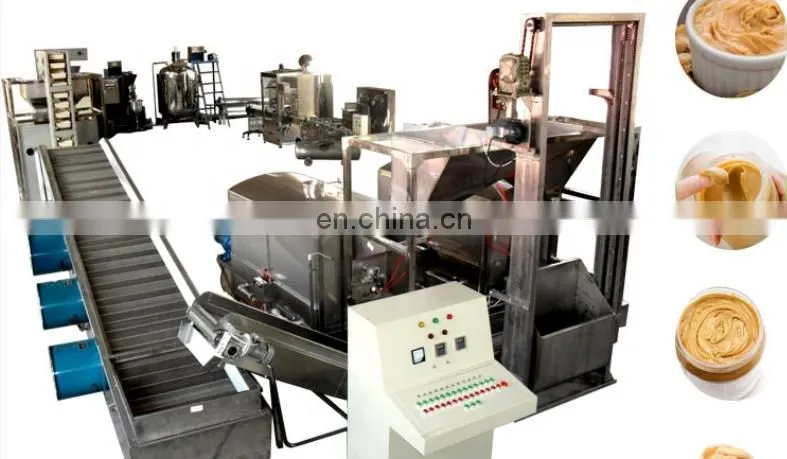

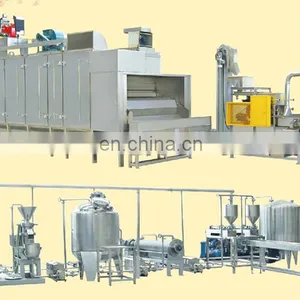

peanut butter production line
Capacity:150kg/hr,450-500kg/hr,900-1000kg/hr,2000kg/hr.
Flow chart: of peanut butter production line :
Roasting -- Cooling -- Peeling -- Selecting -- Milling -- Mixing -- Cooling -- De-gasing -- filling

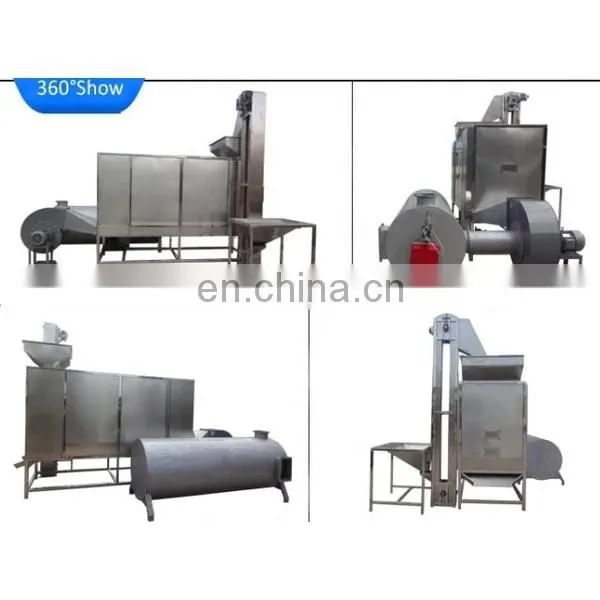

Roasting:
Batch roaster’s working temperature is 200-210 ºC, 20-30minutes.
Cooling:
Peanut will be send cooling belt to cool.
Peeling:
Put the roasted peanuts into peeler to take off the red skin, the double rollers will frication the red skin, the simple cyclone system will suck the red skins, most of them will be put in half-piece, then fall to the selecting conveyor, the over-roasted and un-blanched peanut kernel is picked up by manual or mechanical.
Primary grinding:
Using steel grinder to make the first grinding;

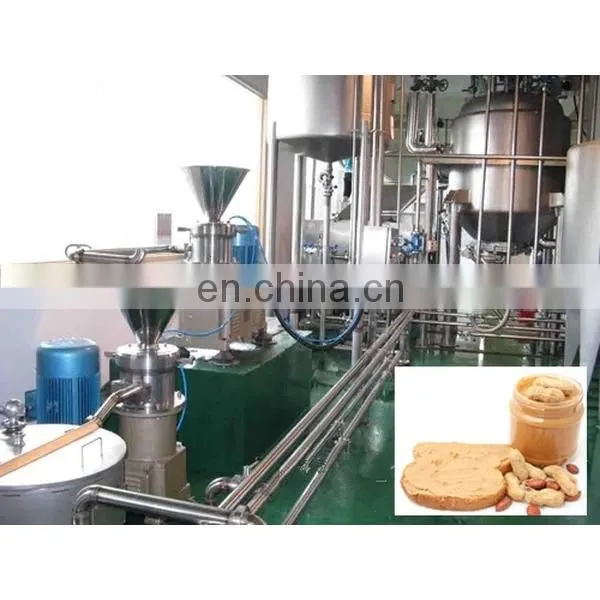

Second grinding:
Using colloid grinder to make the second grinding, the fineness of grinding is
controlled below 7um, temperature of grinding is controlled below 68℃.
Mixing:
Make the butter more homogeneous.
Cooling:
The butter through second grinding should be cooled immediately.
The temperature should go down 45℃.
Degasser:
Take out the air from peanut butter.
Storage tank:
Settling down in the storage tank till the temperature drop to air
temperature.
Packing:
By the filling machine, the finished peanut butter is packed into 200g/500g/1000g bottle.
GENYOND MACHINERY INDUSTRIAL GROUP
It has 6 factories in China for food machine and packing machine.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Genyond machine has more than 100 engineers for the installation of oversea projects.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly.
A satisfying project will be given; A long-term cooperation will come.
