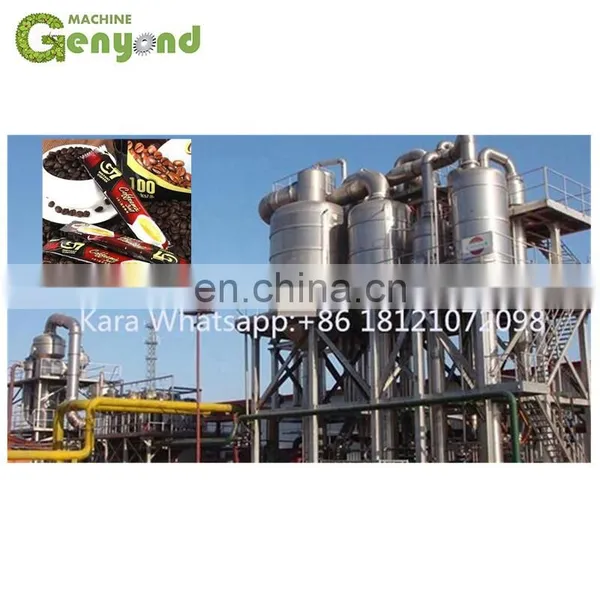

High Quality Instant Coffee Processing Plant
Instant coffee making process:
Pretreatment---baking---grinding---extracting---concentrating---drying---packaging
Sample product prodcued by this machine
Related instant coffee processing machine

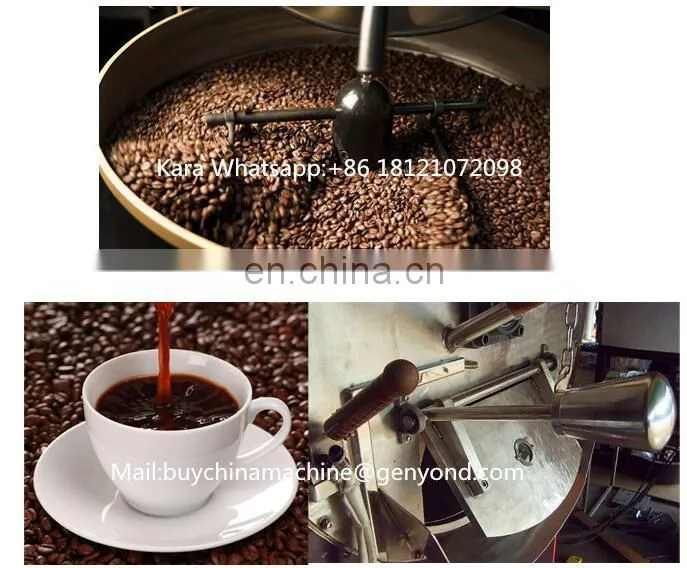

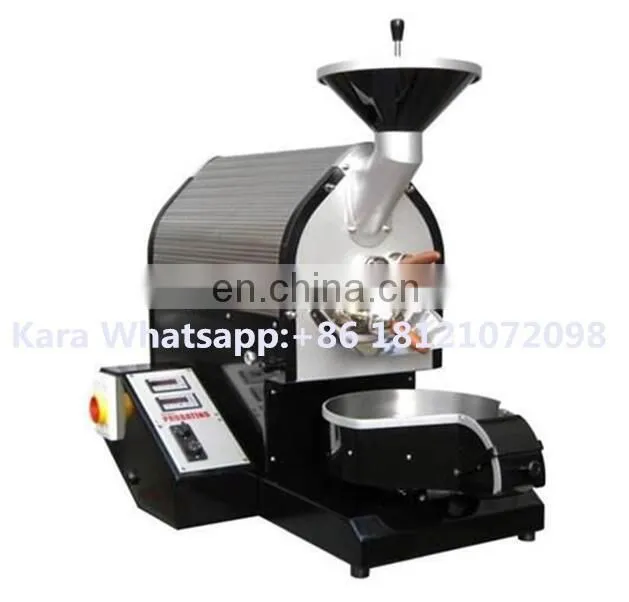

1.Roasting Machine

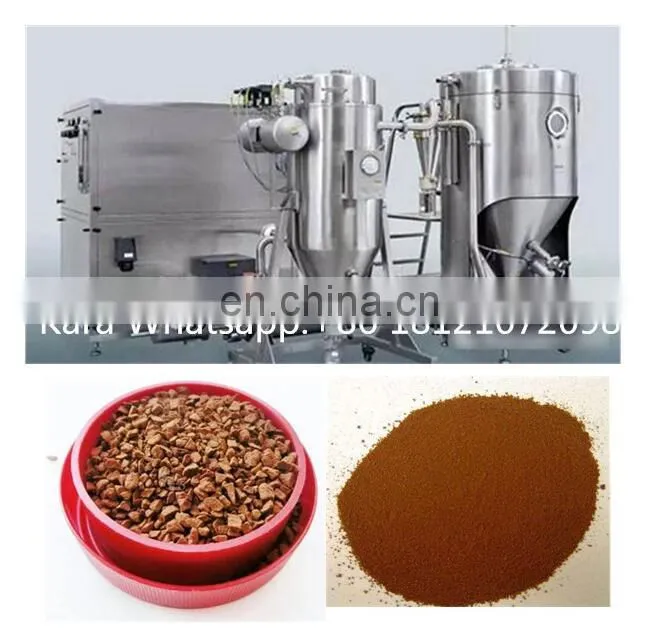

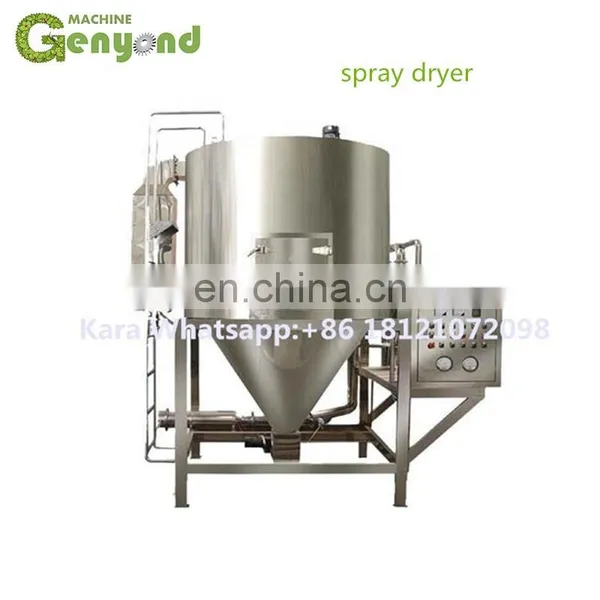

2. Dryer
Working principle:
The solution, emulsion, suspension liquid or slurry are sprayed into fine beads in the hot air, going down from the top of the drying chamber to the bottom, the water will be evaporated to and the product becomes powder or granular product.
Induce hot air from the top of drying tower, at the same time, pump the material liquid to the top of the tower by screw pump or peristaltic pump, the feeding solution becomes into fine beads or small droplets through the atomizer. When the droplets meet the high temperature hot air, the water will be evaporated immediately, and the material liquid is dried into dry product in a very short time, the product is discharged from the bottom of the drying tower, or from the cyclone (depend on the configuration). When the hot air contacts with the droplets, the temperature declines significantly, and the humidity increases greatly, and then will be exhausted by exhaust fan. The fine powder in the air will be collected through different separating devices
There’re different fine powder separation and recovery devices, such as cyclone (the common type and various combination type), bag filter, cyclone + bag filter, cyclone + wet scrubber, and bag filter + wet scrubber etc. We should different fine powder separation and recovery devices as per the characteristics of product and requirements of customer.
Depend on the product features and requirements, we might install secondary drying and cooling system (such as ZLG vibration fluid bed or pneumatic transportation), formulation system or powder sieving system etc after the spray dryer, or dehumidifier.

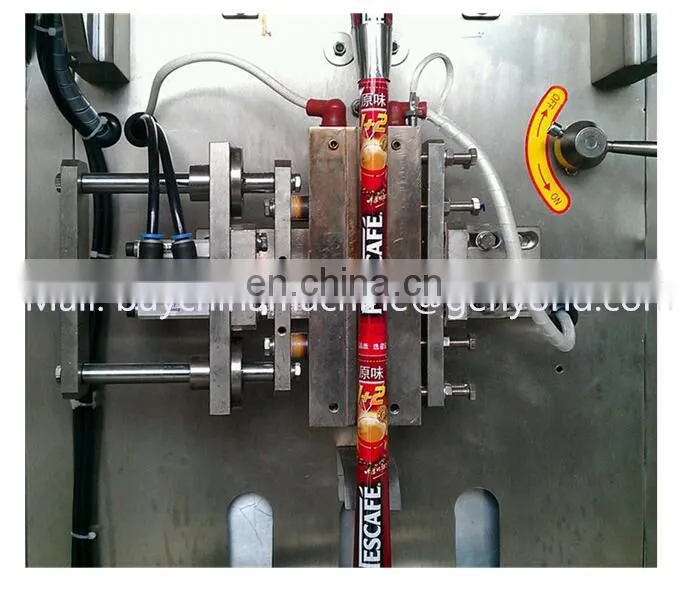

3. Packing Machine
Company Information:
GENYOND MACHINERY INDUSTRIAL GROUP
is a group company speciallizing in machine design, production and installation. Our head office is in Shanghai. It has 6 factories--Shanghai genyond technology Co., Ltd, Shanghai juyuan machinery Co. Ltd, Jiangsu zhangjiagang Jierong machinery Co., Ltd, Jiangsu Jiangyin fengyue machinery Co., Ltd, Zhejiang jouyond machinery Co.,Ltd and 4 subsidiaries.Our main product is food machine, medicine machine, chemicals machine.
As a group company, we have more than 10 factories in China. We have been in machines production more than 20 years. Our machines have been exported to more than 280 countries.
Welcome to visit our company and factories!
Certificate:
Our advantage:
1.High quality of machine
2.Low price in our product
3.Good after sale service
4.Warranty
