Home > Products > filling/packing machine & packing container maker > Factory complete Purified mineral water making & bottle filling machine bottle water production line for sale
Factory complete Purified mineral water making & bottle filling machine bottle water production line for sale
- 1000 per Month
- T/T Credit Card
- 1kg pouch mango jam packing machine
- Ice pop half fold label machine
- high quality stainless steel water bottle making machines
- water bottle production plant in shanghai
- automatic water bottle making machine
- Factory automatic mineral water bottle blowing filling capping labeling packing making machine purified water production line
Product Description
Factory produce spring water packing machinery
1.Descriptions

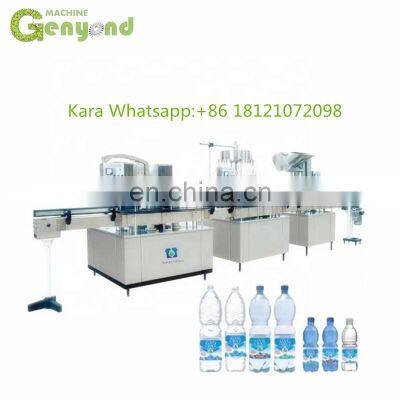

(1) This bottle filling equipment is mainly used for washing, filling and capping PET bottle which can fill non- carbonated drinks such as mineral water, pure water, wine and so on.
(2) Bottle washing, filling and capping are achieved in one machine.
(3) The contact time is shorten between material and the outside. And improved the health conditions, production capacity and economic benefits.
(4) CGF series bottling machine adopts hanging type conveying-bottle structure to make changing bottle mold more convenient, faster and more laborsaving.
(5) The main machine adopts advanced PLC control technology. The key electric elements adopt Mitsubishi, Omron, Siemens, etc international famous products.

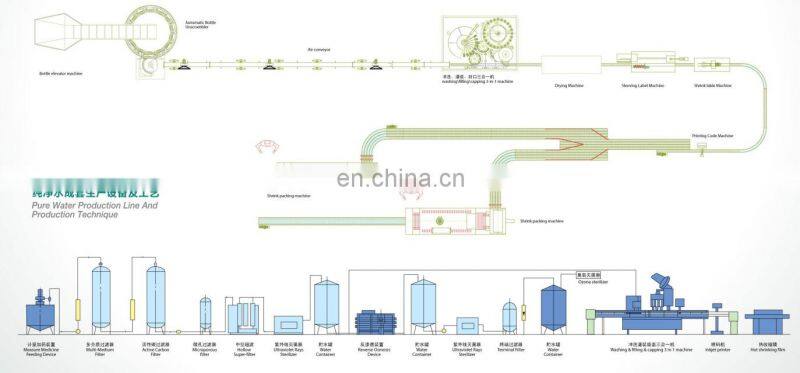

2. flowing chart:
3.Main configurations:
Model |
Brand name |
Frequency exchanger |
MITSUBISH |
PLC |
OMRON |
Touch screen |
DIGITAL PROFACE |
Contactor |
SCHNEIDER |
Thermal relay |
SCHNEIDER |
Air switch |
SCHNEIDER |
Proximity switch |
TURCK |
Photoelectric switch |
BANNER |
thoery
The bottle enters into the rinsing part of three-in-one machine through air conveyor. The gripper installed on the rotary disk catches bottle and turns it over 180 degrees and makes the bottleneck face ground. In the special rinsing area, the nozzle on the gripper sprays water to rinse bottle inwall. After rinsing and draining, the bottle turns over 180 degrees along the guide rail and make the bottleneck faces sky. Then rinsed bottle is transferred to the filling part through poking bottle star-wheel. The bottle that enters into the filler is hold by neck holding plate. The filling valve acted by the cam can realize up and down. It adopts pressure filling way. The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave the bottleneck when it finishes filling, the full bottle is transferred to the capping part through hold neck transition poking wheel. The stop screwing knife holds the bottleneck, keeps bottle upright not rotating. The screw capping head keeps in revolution and autorotation. It can finish a whole capping course including catching, pressing, screwing, discharging through the action of the cam. The full bottle is transferred to bottle outlet conveyor to the next process through bottle outlet thumb wheel.
Before sales:
we can supply full support for you to choose the suitable machines. We can design the layout drawing for you according to your workshop size.
During manufacturing:
we will finish the machine on time exactly. After the machine is finished, you can come to our factory to test the machine, or we can send the video for testing the machine to you.
After sales:
We will send technicians to your factory for installation, testing and operator training; our warranty period is 12 months in this period, we provide free parts for buyer as well as the necessary technical support. In our warranty period, we offer free technical support, and the spare parts are free.
Plywood case, if customers need fumigation, we can supply!
our are specialized in making liquid fill machines. full automatic type, semiautomatic type. we provide good
quality mahcines with competitive price. we hope our efferts can make a good purchase platform to you!
Exhibition:
Certificate:
* Are you a factory or a trader?
We are factories, specializing in the design and manufacture of fruit,vegetables,beverages,dairy machinery,essential oil refining equiment,filling and packaging equipemt.
* About price?
The price is negotiable. It can be adjustable according to yout requested quantity levels or package ways.
* Warranty?
We are very confident in our equipments. It will be packed very well in standard exporting carton. So usually you will receive your order in good condition. The warranty is 12 months. Also we can provide the best after-sales service.
* About installation?
We could send our engineer within 10 days after the machines reach your workshop. Our engineer will install machines and train your worker of operation and maintenance.
* Do you accept L/C?
Yes, we do L/C through one touch service company which belong to ALIBABA GROUP.
Company Profile
Shanghai Genyond Technology Co., Ltd. is a manufacturer of extracting unit and fruit & vegetable processing line with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and beverage and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
