10000pcs mineral water filling machine price

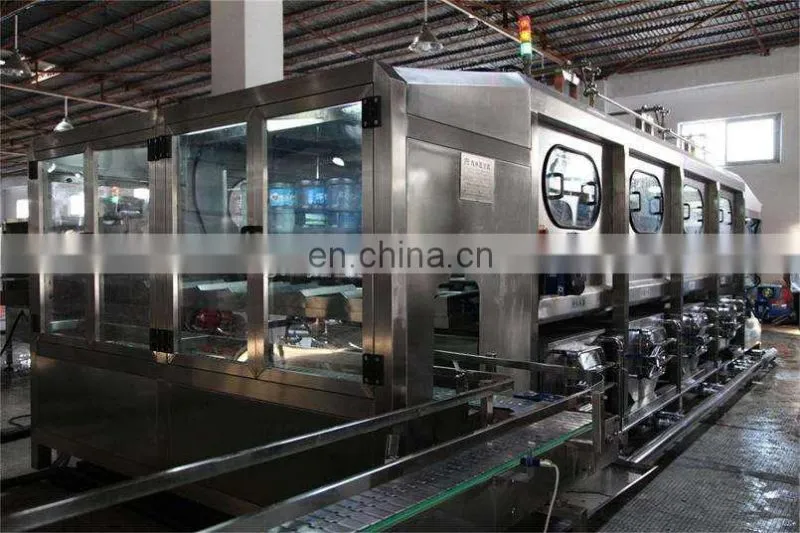

This Automatic 3-in-1 Wash-filling-capping Water Filling Machine is used to produce bottled mineral water, purified water, flavored water, alcoholic beverage and other non-gas Liquid. This Machine can be applied to all kinds of plastic products such as PET, PE. Bottles size varies from 250ml-2500ml meanwhile few changeover is needed. This series of filling machine capacity varies from 3000BPH to 32000BPH.
Our filling machine is designed for the low/middle capacity and small factory. It features low water and low electricity consumption, small space occupation as well as easy operation. At the same time It improves the sanitary conditions and simplifies the maintenance compared with the last generation water filling machine. it can perfectly complete the function of automatic washing, filling and capping, which has been aproved by our clients as technical matured and quality product.
Model of 3in1 juice filling machine
|
Model: |
GFY18-18-6 |
GFY24-24-8 |
GFY32-32-10 |
GFY40-40-12 |
|
capacity :500ml |
5000 bottle per hour |
8000 bottle per hour |
12000 bottle per hour |
16000 bottle per hour |
|
bottle shape: |
round or square |
|||
|
PET bottle: (mm) |
(Bottle Diameter):φ50-.φ110mm (Height):150-340mm |
|||
|
cap: |
PE screw cap |
|||
|
filling precision: |
≤±5mm |
|||
|
filling pressure:(Mpa) |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
|
rinsing pressure:(Mpa) |
0.2-0.25 |
0.2-0.25 |
0.2-0.25 |
0.2-0.25 |
|
filling volume :(L) |
3.5 |
4 |
6 |
8 |
|
overall size:(mm) |
2450*1800 |
2780*2200 |
3600*2650 |
3800*2950 |
|
weight: (kg) |
3500 |
4500 |
5500 |
6500
|
