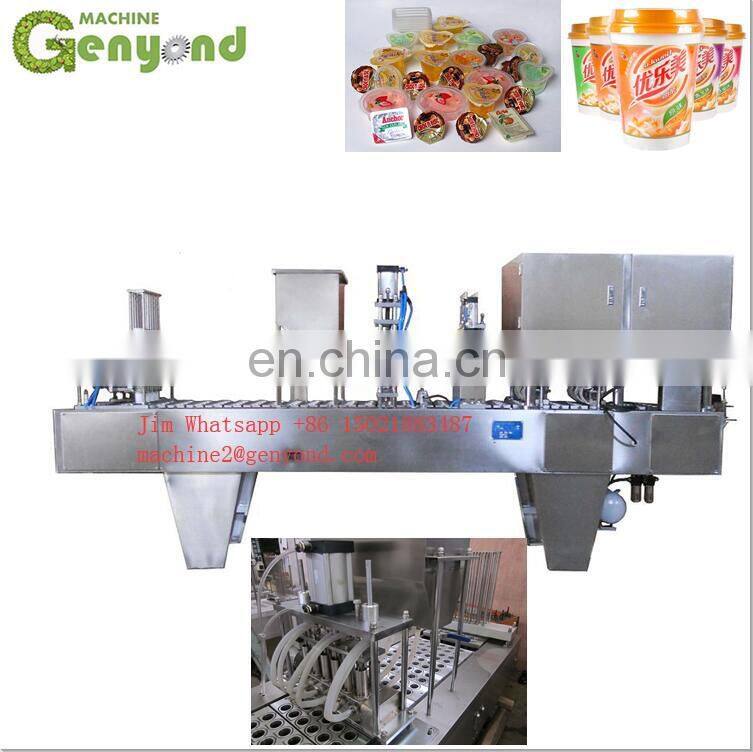

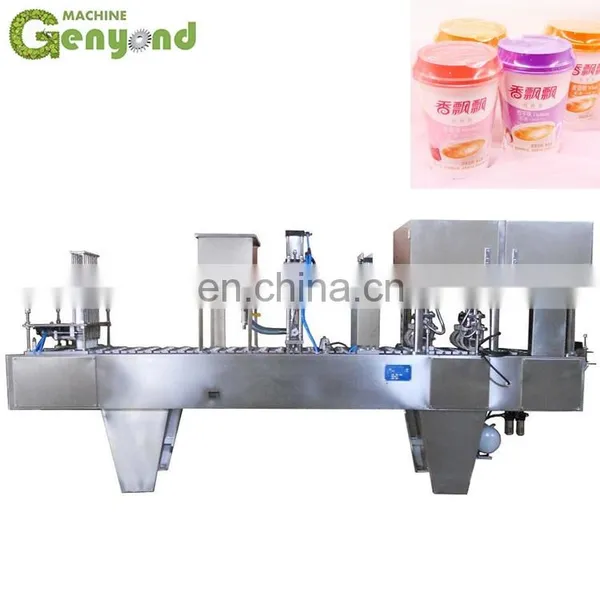

AUOTMATIC YOGHOURT CUP FILLING AND SEALING MACHINE
APPLICATIONS:
ALL works of container dropping, sterilizing by ultraviolet radiation, filling, auto coding ,
1st heat sealing ,photoelectric pattern proofreading,2nd heat sealing, film trimming, auto discharge.
Widely used in jelly, pudding, fruit juice, cupped water, milk products, bean curd, condiments,
cupped noodles,, chafing dish material, meat, various microwave frozen prepared food, pickled
food, agriculture products and sea food.
Rotary type cups filling sealing machine main function:
Empty cups/box dropping→Liquid/paste/powder filling→Pre cut foils/roll film putting→Date/other character printing→Caps putting→Double sealing→Out putting by pushing up/suckers/manipulator
FEATURES:
beautiful ,clean ,bright shape of machine .
made of stainless steel and meets the sanitation standard for foodstuff .
uses air pressure to drive .
complete function the whole process is completely automatic from container supply ,filling ,sealing ,leftover material cutting product being moved out to leftover material receiving .
can fill ,seal and cut several containers at the same time .
easy filling-volume adjusting device ,improve the production efficiency(filling head can be made according to speed requirement )
has photoelectric eyes can automatically correct the film sealing position and ensure the sealing position is right
fitting for filling and sealing all kinds of shape cups ,such as roundest ,peach ,panda ,hear etc. We also can design new model according to clients` requirements
Technical Parameter:
|
Model |
XBG50-1 |
XBG50-2 |
XBG50-3 |
|
Capacity |
700-1000cups/hour |
1000-2000cups/hour |
2000-3000cups/hour |
|
Power |
2kw |
2.5kw |
3kw |
|
Air consumption |
0.7m³/min |
||
|
Voltage |
220V/50HZ can be customized |
||
|
Dimension |
1200*1200*1850mm |
||
|
Weight |
350kg |
400kg |
450kg |
|
Packing |
1set/wooden case |
||
