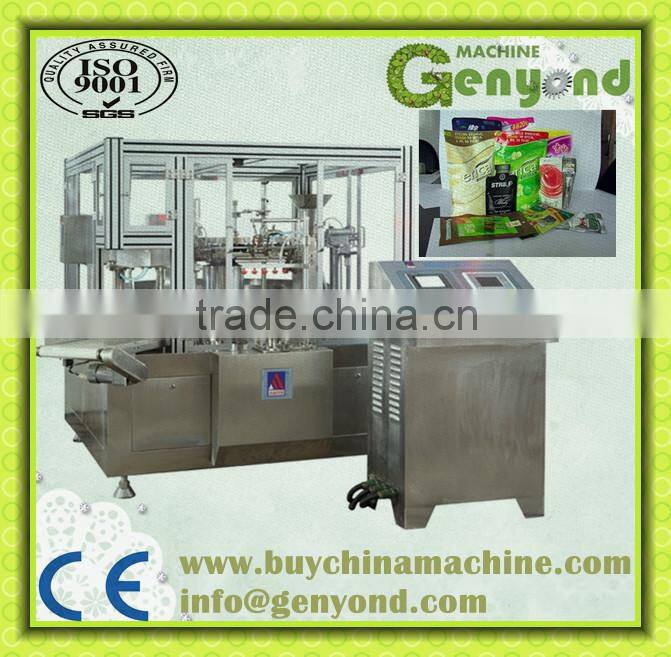

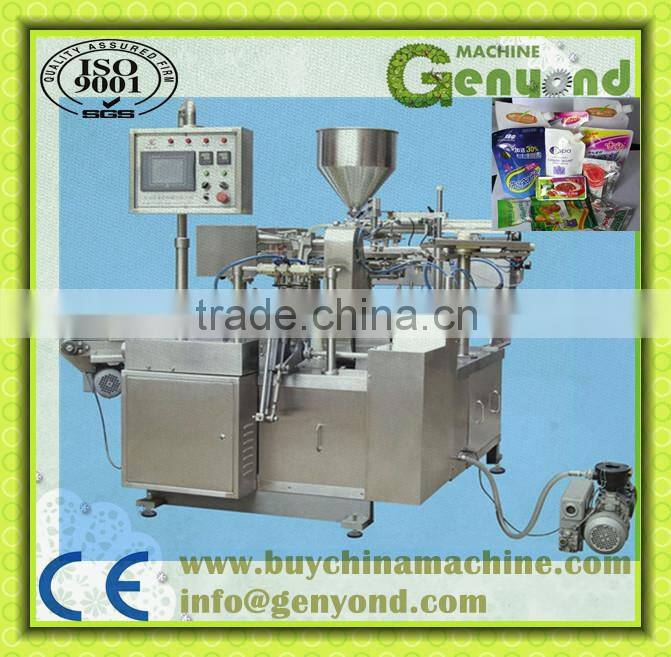

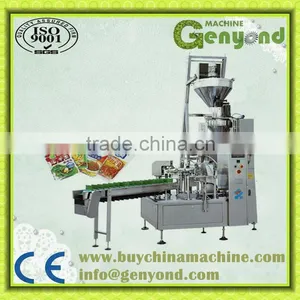

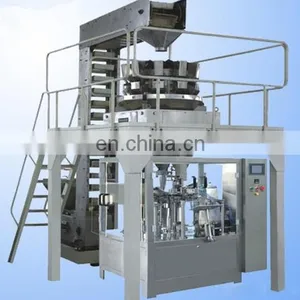

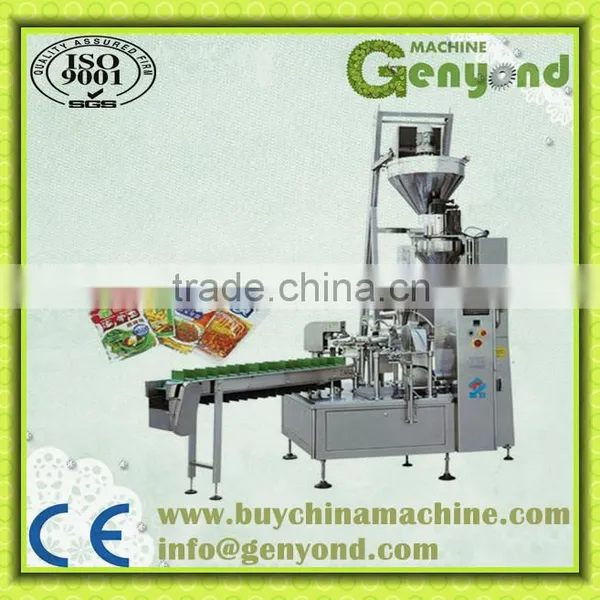

Pre-made Pouch Bag Given Filling and Sealing Machine for Food
- T/T Credit Card
You May Like
-
Automatic Preformed Pouch Ketchup Packing Machine
-
Container Ice Cream Filler
-
Rotary Type Ice Cream Cup Filling Sealing Machine
-
Full Automatic Shrink Wrapping Pillow Packaging Machine
-
Filling and Sealing Machine for Ice Lolly or Ice Pop or Popsicle Yogurt
-
Automatic Ice Lolly/Ice Pop Beverage Sealing Packing Machine
Product Description
Premade Pouch Filling Sealing Machine
|
Model |
Machine size |
Packag size |
N.W |
G.W |
|
GY8-200 |
2300*1600*1500mm |
2350*1670*1630mm |
1200Kg |
1400Kg |
|
Bag shape |
Bag width |
Bag length |
Bag volume |
Output |
|
Premade bag |
100-220mm |
100-350 |
Max 2400cm3 |
20-60bags/min |
|
Connected load |
Power supply |
Air supply |
Control |
Operation |
|
3.5Kw |
380V,3ph,50hz |
0.6Mpa, 0.8m3/min |
PLC |
Touch Scren |
Application
1- Solid species: candy, biscuits, peanuts, green beans, pistachios, crystal candy,
white sugar, brown sugar, cookies, cakes, daily commodities, cooked food, pickles
2-Granule species: relish, sodium glutamate, granular drugs, seeds, chemistry condiment, natural condiment, granulated sugar, chicken essence, melon seeds, nuts,
pesticide, fertilizer
3-Liquid species: detergent, yellow wine, soy sauce, vinegar
4- Liquid species: tomato ketchup, peanut butter, jam
5-Scattered substance species: grain, spaghetti, beans, bean products, puffed food,
stationery, commodities, groceries

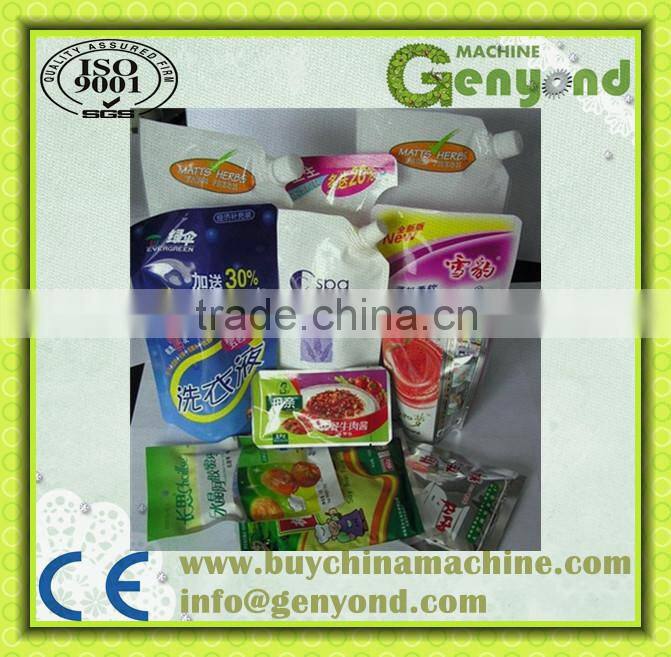

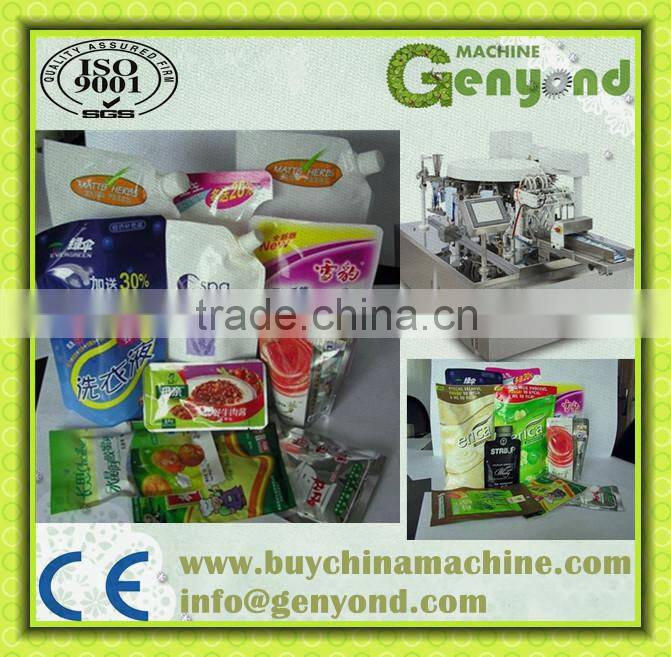

6-Materials that can be packed in bags

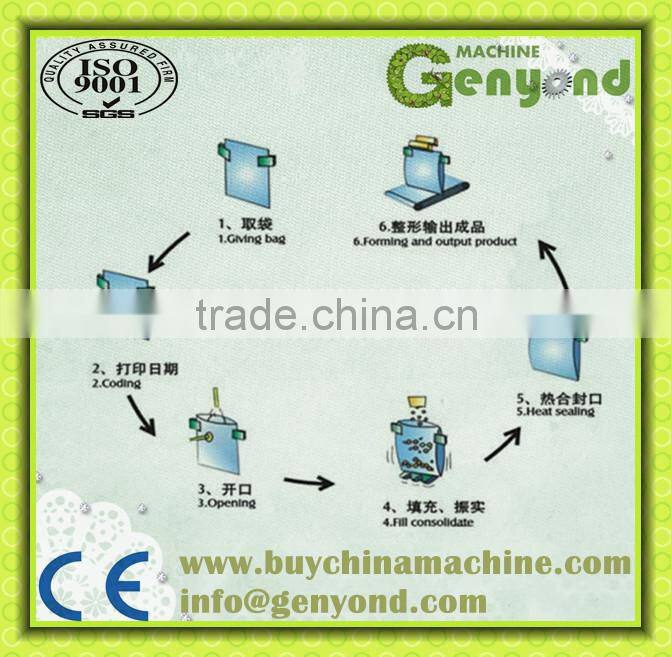

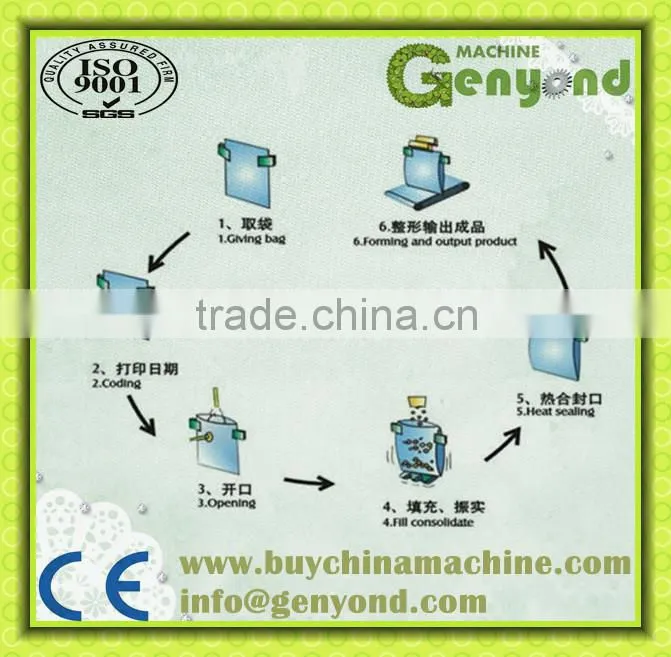

Product Process: Feeding and giving pouch------Coding date------Open pouch------Filling-----Exhaust and Sealing-----Neaten and finished product output
Function and characteristics
1-Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2-Frequency conversion adjusts the speed: This machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.
3-Automatic checking: No pouch or pouch open error, no fill, no seal. The bag can be used again, avoid wasting packing materials and raw materials.
4-Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
5-Horizontal conveyer style to giving bag: It can put on more bags on the bag storage and have a low requirement about the quality of bags.
6-The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.
7-It matches with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.
8-Use the plastic bearing, don't need put on oil, less pollution.
9-Use no oil vacuum pump, avoid polluting the environment in the production.
10-The packing materials loss low, what this mach
ine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
11-Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food
12-With different feeders changed to pack solid, liquid, thick liquid, powder and so on.
13-The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE, PP and so on Preformed bag made by film and paper
