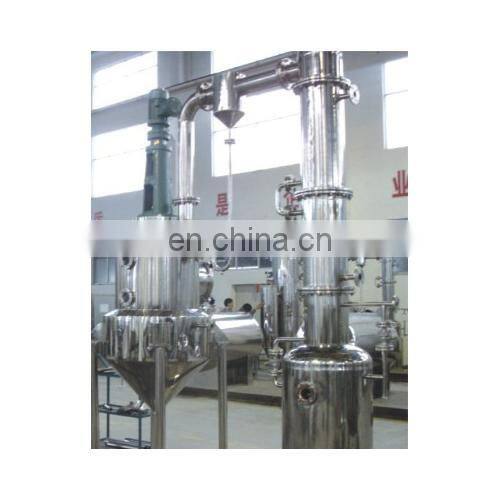

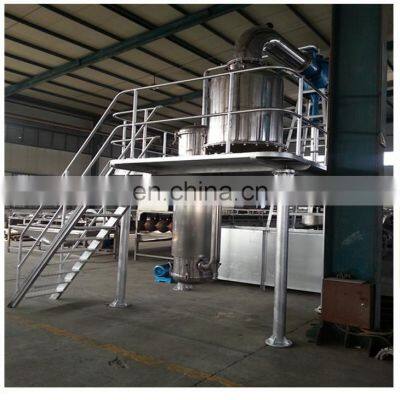

Tomato Paste MVR Evaporator for Concentration Processing
- T/T Credit Card
You May Like
-
Industrial Belt Press Juice Extractor For Apple/ Pear/pineapple/etc
-
Tomato Paste Ketchup Making Machine/ Tomato Sauce Fruit Jam Processing Machine
-
Lab Size Complete NFC Juice Milk Processing Plant
-
Small Scale Lab Size Industrial NFC Blueberry Juice Extraction Sterilization Making Equipment Processing Machine Production Line
-
Tomato Paste Ketchup Pulping Making Machine Evaporator/tomato Paste Production Line/tomato Sauce Processing Plant
-
Automatic Commercial Fruit Juice Production Line Fully Auto Industrial Complete Juice Processing Plant Machine
Product Description
shanghai tomato paste evaporator
Industrial concentration paste processing craft
From the beginning of raw fruits washing, lifting, selecting, crushing, peeling, coring, pulping etc, to various vacuum concentration, UHT sterilization, Triowin can provide whole solution for either BID (bag in drum) packaging or small bottles packaging (RTD, ready to drink).
fruit→washing→pulper→mixing→homogenizing→ degassing→ sterilizing→ concentrating
→ cooling→aseptic filling
Machine introduction:
This machine is suitable for plants, pharmaceutical, food, chemical and other industries mixing, vacuum evaporation and concentration, high pasteurization, vacuum degassing, and other production processes.
structure diagram for reference
Main components:
1. vacuum concentrated sterilization 2. scraper agitator 3. scraper bracket
4. steam separator device 5. tube condenser 6. condensed water buffer tank
7. stirring motor
Technical parameters:
1, vacuum pump: SZ-2.25kw
2, temperature control proportional valve: pneumatic
3, concentration tank heating area: 1.27m2
4, condenser cooling area: 3.50m2
5, cooler area: 0.55 m2
6, sandwich working pressure: 0.3MPa
7, water concentration temperature: 55~65° C
8, alcohol concentration temperature: 45~55° C
9, vacuum degree: -0.05~0.08MPa
10, machine inner: 3mm SUS304
11, machine jacket: 3mm SUS304
12, jacket heater: 400L
13, vacuum evaporator: 600L
14, oil-water separator: 20 liter
15, explosion-proof reducer: 1.2kw
16, speed: 25 rpm
17, standard configuration: manhole, vacuum meter, sight hole.
18, material: whole machine uses high quality 2B SUS304, health grade valve.
19, steam consumption: 300kg/h, 0.2 ~ 0.3MPa
20, evaporation capacity: 100kg/h
21, equipment control: touch-screen automatic control
22, condensed water consumption: 1T/ hour
23, temperature control: pressure relief valve, proportional valve, drain valve, steam trap, globe valve, temperature sensor PI100
24, size: 1800*1700*2500mm
25, weight: 900 kg
1. We provide English manual, one year warranty,life-long maintenance.
2. If customer need, our engineers will provide assembling and training the workers.
The buyer shall bear the engineers round trip tickets fees, basic accommodation and Transportation,the allowance shall be paid by buyer.
3 we are factory
4.what capacity do you want. and we provide both half automatic and full automatic machines
5. pls tell me detail functions of machine , so that we can recommend the best quality and the best price machine for you.
