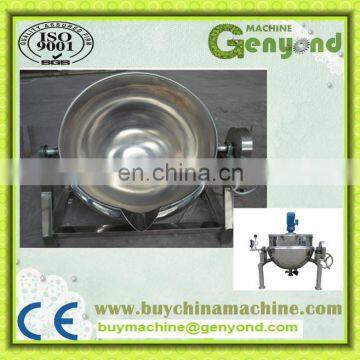

Industrial cooking pot with mixer
- 1000 per Month
- T/T Credit Card
- carrot machine composite vegetable fruit juice production line for sale
- Factory price automatic canned tomato sauce fruit jam production line
- Tomato paste processing machine/tomato paste processing line
- Automatic tomato paste machine tomato paste processing plant
- Fruit juice production line fruit juicer processing line filling machine
- Dates Sauce Gounda Dates Syrup Machine Dates Palm Paste Making Machine
Product Description
The basic structure and installation profile

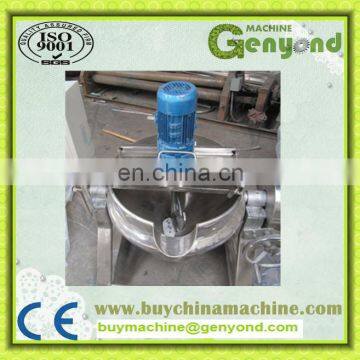

1, tilting pan sandwich mainly by tilting the pot body and frame composition, stirred the pot and stir mainly by the device component
2. Tighten the bracket of the two set screws, turn the pot when you shake, the inlet and outlet ends allowed to rotate with the pot.
3, installed on the mezzanine stirred the pot, empty commissioning checks should be made until after the transmission parts in normal operation, only put into use
4, into the air, such as joints leak, can tighten the nut until no leakage so far.
Use note
1, using the vapor pressure shall not exceed the quota for a long time to work pressure.
2, into the steam inlet valve should be opened slowly, until the required pressure up, shut-off valve at the outlet of the condensed water, such as air-trap, you should always open the valve; if there is no trap, the first valve open until vapor overflow valve off small and then open a small amount of water vapor in the degree to keep overflows.
3, for the safety valve, according to the user's own use steam pressure, self-adjusting.
4, steam boiler in use, should always pay attention to changes in vapor pressure, with the inlet valve adjust.
5, after stopping the intake should pot straight cock mouth open, I put the finished water.
6, tilting pan and stirred sandwich before class use, should be in the rotating parts of refueling; agitating parts decent sandwich pot on pot, recommended cooked vegetable oil; others are used throughout the 30 # - 40 # machinery oil.
Technical parameters:
Metric volume(L) | 50 | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 |
Caliber (mm) | Φ600 | Φ700 | Φ800 | Φ900 | Φ1000 | Φ1100 | Φ1200 | Φ1300 | Φ1400 |
Depth of pot(mm) | 400 | 450 | 530 | 630 | 680 | 730 | 780 | 830 | 900 |
Heating area(m2) | 0.45 | 0.58 | 1.12 | 1.42 | 1.75 | 2 | 2.3 | 3.2 | 3.9 |
Electric power(kw) | 9 | 9 | 15 | 18 | 18 | 24 | 24 | 27 | 30 |
Heat transfer oil QTY.(L) | 30 | 36 | 45 | 60 | 70 | 80 | 100 | 200 | 250 |
Working pressure | ≤0.09Mpa(can be adapted according to customer requirement) | ||||||||
Mixing speed | 36 r/min(can be adapted according to customer requirement) | ||||||||
Mixing power(Kw) | 0.55 | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 |
1. We provide English manual, one year warranty,life-long maintenance.
2. If customer need, our engineers will provide assembling and training the workers.
The buyer shall bear the engineers round trip tickets fees, basic accommodation and Transportation,the allowance shall be paid by buyer.
3 we are factory
4.what capacity do you want. and we provide both half automatic and full automatic machines
5. pls tell me your detail requirement , so that we can recommend the best quality and the best price machine for you.
Company Profile
Shanghai Genyond Technology Co., Ltd. is a manufacturer of extracting unit and fruit & vegetable processing line with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and beverage and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
