The Complete Prickly pear juice & jam production line
processing line is mainly used for processing juice and jam from prickly pears.
Process

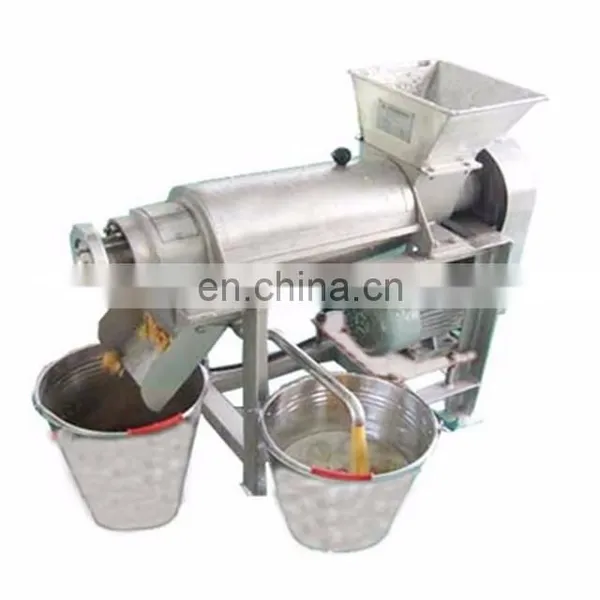

Fruits cleaning ----pulping / juicing-----mixing-----homogenization-----sterilization----filling & packing
Features and Application
1. There are some features such as compact conformation, good shape, cozy operation, excellent automatic and poor labor intensity.
2. We adopt air conveyor bottle-feeding technology instead of the feeding screw and conveyor chain. Easily change the bottle change over parts.
3. It adopts the blocking bottleneck technology to convey bottles. It does not adjust the height of equipment when the type of bottle is exchanged. According to the diameter of bottle, you could exchange corresponding nylon elements such as arc slipper guide, thumb wheel etc.
Technology Parameters
|
Model |
RXGF8-8-3 |
RXGF12-12-5 |
RXGF16-12-6 |
RXGF-18-18-6 |
|
Production capacity (500ml)(b/h) |
1500-2000 |
2000-2500 |
3000-4000 |
4000-6000 |
|
Filling precision |
2mm(Liquid Level) |
|||
|
Polyester bottle standard(mm) |
(Bottle Diameter):50-100(Height):150-310 |
|||
|
Suitable cap shape |
Plastic Screw Cap |
|||
|
Water pressure of washing bottle(MPa) |
0.2-0.25(Mpa) |
|||
|
Wash bottle consumption water (kg/h) |
600 |
700 |
800 |
1200 |
|
Spraying position |
5 |
5 |
5 |
5 |
|
Dripping bottle position |
3 |
3 |
3 |
3 |
|
Gas source pressure(Mpa) |
0.6 |
0.6 |
0.6 |
0.6 |
|
Gas consumption(M3/min) |
0.1 |
0.1 |
0.1 |
0.1 |
|
Power(kw) |
2.2 |
2.2 |
4.4 |
4.4 |
|
Weight(kg) |
2000 |
2100 |
2200 |
2800 |
|
Dimensions(LWH)(mm) |
2000*1600*2200 |
2100*1650*2200 |
2230*1630*2250 |
2360*1830*2250 |
About Factory
20 years’ experience in Complete fruits juice and jam processing line
About Quality
brand-new equipments with latest design and suitable material made.
About After Sale Service
One year warranty period and life time technical support.
