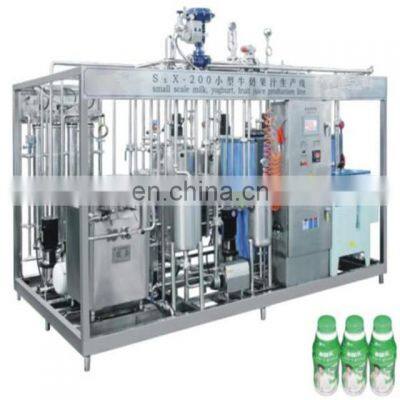

1.fresh fruit juice processing plant /line
We provide turn key project for beverage filling line, which it is juice / pulp, milk, drinking water, juice and
others.
Part I: Water treatment system
|
Raw water -> raw water tank -> raw water high pressure pump->multi- medium filter (Quartz sand filter) -> active carbon filter-> sodium ion exchanger-> water pump-> precision filter -> RO device ->ozone device ->pure water tank |
|
Remark: Supply water for juice blending tank and washing-filling-capping units |
2. general instruction
Juice Washing Station:
-Rotative rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.
Juice Filling Station:
-The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
-Product bowl is to reduce the loss of heat.
-If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.
Juice Capping Station:
-Rotative capping turret, suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating
the capping heads.
