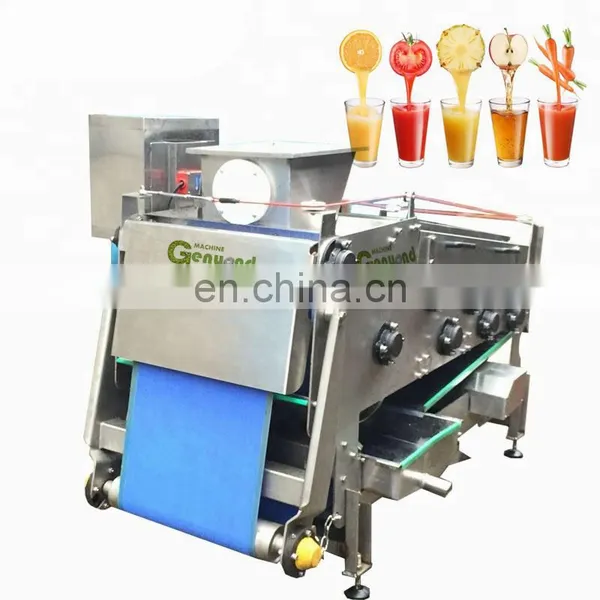

Industrial Cold Press Belt Type Apple Juice Extraction Machine Juicer Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2013
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Industrial Cold Press Belt Type Juice Extractor With Good QualityNegotiableMOQ: 1 -
Industrial Cold Press Belt Type Juice Extraction Machine for NFC Juice ProductionNegotiableMOQ: 1
-
Industrial Belt Type Cold Press for NFC JuiceNegotiableMOQ: 1
-
Cold Press NFC Orange Juice Production Plant Making MachinesNegotiableMOQ: 1
-
Factory 1000kgs per Hour NFC Mangoes Juice Extraction Sterilization Filling Production Line Making Machines Processing PlantNegotiableMOQ: 1
Product Description
Application
It's using in extracting juice for tomato pineapple apple orange, watermelons, grapes, strawberries pears, apples, lemons,
oranges, oranges, tomatoes, papaya, carrot, ginger and other fruit and vegetables. It is widely used in solid and liquid
separation process of the half end product in VC project, alcohol project and brewing, starch, and feedstuff, and industrial
polluted water and salted dished salt removing projects. It works automatically and continuously. The aerocyst controls inflating bags, revision, And adding pressure. The cleaning water is filtered by an angle net sterilizer and can be recirculated.
It's using in extracting juice for tomato pineapple apple orange, watermelons, grapes, strawberries pears, apples, lemons,
oranges, oranges, tomatoes, papaya, carrot, ginger and other fruit and vegetables. It is widely used in solid and liquid
separation process of the half end product in VC project, alcohol project and brewing, starch, and feedstuff, and industrial
polluted water and salted dished salt removing projects. It works automatically and continuously. The aerocyst controls inflating bags, revision, And adding pressure. The cleaning water is filtered by an angle net sterilizer and can be recirculated.
Products Description
This equipment is suitable for the juice extraction industry of Chinese medicine, berries and various fruits and vegetables. This equipment is very suitable for universities, research institutes and laboratories of enterprises and institutions as well as various fruit juice production enterprises.

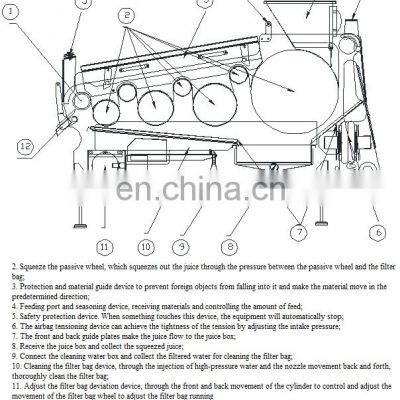

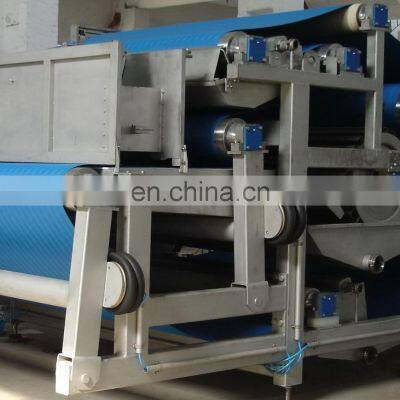

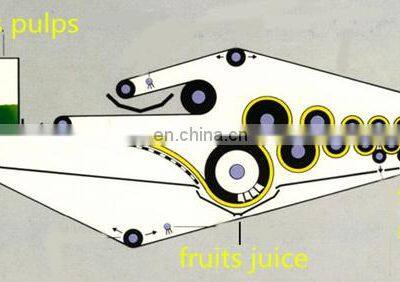

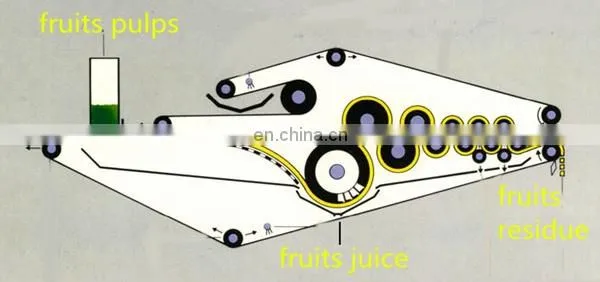

The belt juicer is used to use two looped mesh belt to clamp the fruit paste and bypass the multistage diameter, and rely on the tension of the mesh belt to make the outer mesh belt around the press roll to produce pressure on the fruit paste sandwiche between the two mesh belts and squeeze out the juice. In order to overcome the shortcoming of low pressing force produced only by the tension of the mesh belt, a linear pressure roller is often added to the end of the roller and the pressure roller is combined. The fruit paste sandwiched in the middle of the two mesh belt is subjected to double pressure from the outer mesh belt and the pressure roller when the squeezing roller meshes with the pressure roller, which is more than the pressure only produced by the mesh tension. The strength of the press is several times higher.
The juicer technology of the Genyond Juicer fully embodies the characteristics of the combined press rolling and pressing, tha is, the rolling press with pressure, the pressing force to win the wide adaptability, the high yield of the juice and the low
water content of the fruit residue. In addition to the press of apples and grapes, this type of juicer can also be used to process materials with higher fiber content such as eucalyptus, apple pears and fresh ginger.
The belt juicer is used to use two looped mesh belt to clamp the fruit paste and bypass the multistage diameter, and rely on the tension of the mesh belt to make the outer mesh belt around the press roll to produce pressure on the fruit paste sandwiche between the two mesh belts and squeeze out the juice. In order to overcome the shortcoming of low pressing force produced only by the tension of the mesh belt, a linear pressure roller is often added to the end of the roller and the pressure roller is combined. The fruit paste sandwiched in the middle of the two mesh belt is subjected to double pressure from the outer mesh belt and the pressure roller when the squeezing roller meshes with the pressure roller, which is more than the pressure only produced by the mesh tension. The strength of the press is several times higher.
The juicer technology of the Genyond Juicer fully embodies the characteristics of the combined press rolling and pressing, tha is, the rolling press with pressure, the pressing force to win the wide adaptability, the high yield of the juice and the low
water content of the fruit residue. In addition to the press of apples and grapes, this type of juicer can also be used to process materials with higher fiber content such as eucalyptus, apple pears and fresh ginger.
1.The machine is used in fruit and vegetable pressing with high juicing rate 70-85%.
2. All stainless steel, in line with food hygiene
standards.
standards.
3. Accessory devices are used mainly famous brand-name products, stable and reliable.
4. Continuous automatic working,airbag control up with, correction,pressure,frequency control.
5. Fully automatic CIP cleaning system,without manual operation.
6. Control system with touch screen operation, intuitive interface, simple and efficient.
Specification
Capacity | 500KG/H |
Power | 3.5kw 380v 50hz |
Size | 2200*900*1600mm |
Juice yield | 75-83% |
Product name | industria belt type sugar cane sugarcane apple lemon orange fruit vegetable radish juice extractor with high rate 75-83% |

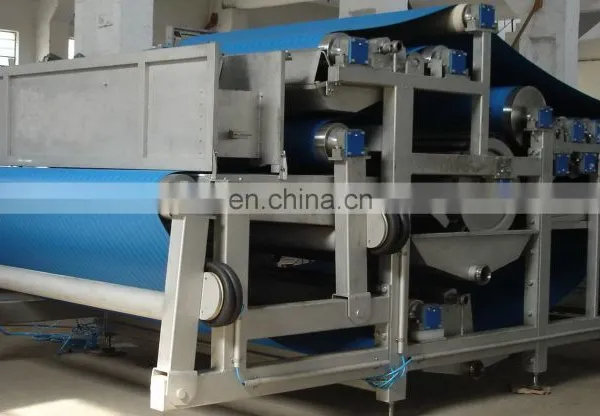

Industrial big capacity belt press
Model | GYDY-800 | GYDY-1200 | GYDY-1750 | GYDY-2500LR | GYDY-2500HK |
Output(T/H) | 1~3 | 4~7 | 8~12 | 18~22 | 18~22 |
Belt Length (MM) | 92000 | 14100 | 14500 | 14500 | 17200 |
Belt width(MM) | 800 | 1200 | 1750 | 2500 | 2500 |
Press rate (Apple Juice) | ≥75% | ≥75% | ≥75% | ≥75% | ≥78% |
GENYOND MACHINERY INDUSTRIAL GROUP
It has 6 factories in China for food machine and packing machine.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Genyond machine has more than 100 engineers for the installation of oversea projects.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly. A satisfying project will be given; A long-term cooperation will come.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly. A satisfying project will be given; A long-term cooperation will come.
