Efficient cages cleaning line steam heating plastic basket washing machine

Specifications

Plastic crate washing machine,use hot water and alcali solution for cleaning, SUS304 material. wash the crates that contain packages; for juice and other foods.

Main parameter:

1. Capacity: 300-900 pcs/H
2. External dimension: 7000*1250*1110mm
3. Electrical Power consumption: 9.1 KW
4. Steam consumption: 250KG/H
5. Water consumption: 300KG/H
6. Washing agent: alkali solution and hot water

Structure and description

Material: SUS304 stainless steel

Main parts: conveying system, water tank with filtration, water recirculation pumps, steam heating, spray nozzles, electrical control system.

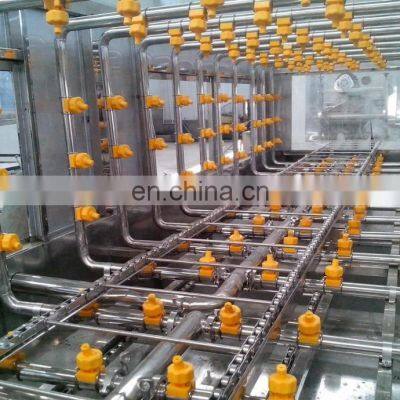

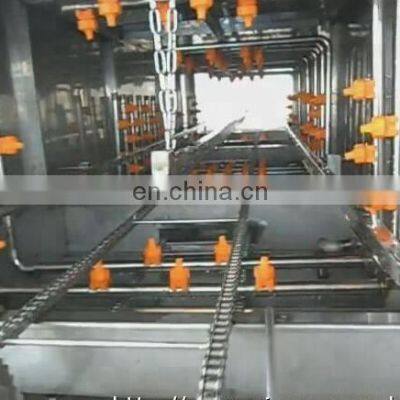

  Working principal: steam is injected to water directly for heating; the spraying nozzles are used in all

     directions, so crates can be  cleaned from different directions; there are three washing sections, 1^st section

   by spraying alkali solution, cleaning temperature 80 degrees; 2^nd section by spraying hot water, temperature

    80 degrees; 3^rd by normal water cleaning and meanwhile cool the crates before output;

    This machine is driven by chain so the machine works continuously

Cleaning speed: adjustable to exact requirement.

Use: mainly used to wash the plastic crates, for example the storage crates of milk bottle, juice bottle and beer

       bottles.
