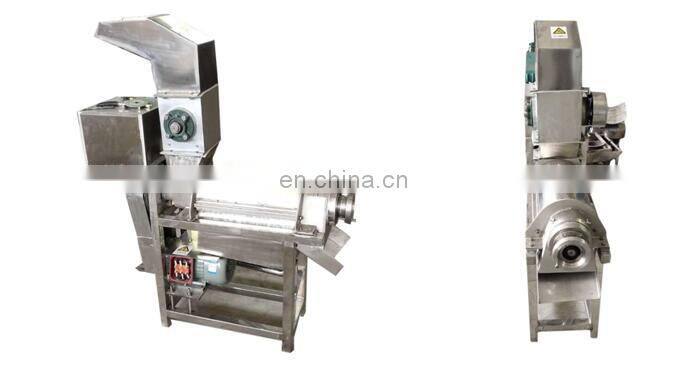

Mango NFC Juice Extractor Machine/mango Pulp Juice Plant
- T/T Credit Card
You May Like
-
Industrial Electric Apple Peeling Machine
-
Small Shallot Garlic Onion Harvester for Sale
-
1.3m Garlic Shallot Potato Harvester With Auto Picking System
-
Manufacturer Shanghai Factory Industrial New Green Banana Plantain Peeler Equipment Ripe Banana Peeling Machine Price
-
Shanghai Factory Genyond Small Garlic Potato Peanut Digger Harvesting Machine Peanut Picker Picking Machine One Row Harvester
-
GYC Industria Belt Type Sugar Cane Sugarcane Apple Lemon Orange Fruit Vegetable Radish Juice Extractor With High Rate 75-83%
Product Description
|
No. |
Specification |
Output |
Spiral diameter |
Crushing motor power |
Main motor power |
Filter |
Outside size |
|
1 |
0.5T juicer |
0.5T/H
|
88mm
|
|
1.5kw |
0.6mm |
780*380*800 |
|
2 |
Square broken 0.5T juicer |
0.5T/H
|
88mm
|
1.5kw |
1.5kw |
0.6mm |
990*380*1100 |
|
3 |
Round broken 0.5T juicer |
0.5T/H
|
88mm
|
1.5kw |
1.5kw |
0.6mm |
990*380*1100 |
|
4
|
1T juicer |
1T/H |
125mm |
|
3kw |
0.6mm |
909*320*833 |
|
5 |
Square broken 1T juicer |
1T/H
|
125mm |
1.5kw |
3kw |
0.6mm |
950*350*1200 |
|
6 |
Round broken 1T juicer |
1T/H
|
125mm |
1.5kw |
3kw |
0.6mm |
950*350*1200 |
|
7 |
1.5T juicer |
1.5T/H |
175mm |
|
7.5kw |
0.6mm |
1400*500*1380 |
|
8 |
Square broken 1.5T juicer |
1.5T/H
|
175mm |
2.2kw |
7.5kw |
0.6mm |
1400*550*1700 |
|
9 |
Round broken 1.5T juicer |
1.5T/H |
175mm |
2.2kw |
7.5kw |
0.6mm |
1400*550*1700 |
Use and scope of application:
For pressing pineapple, apple, pear and other fruits;
For pressing mulberry, grape, orange, orange and other berries;
For pressing tomatoes, ginger, garlic, celery and other vegetables.
Spiral push extrusion;
Fully automatic berry, pome fruit and vegetable fruit and vegetable juice extraction and slagging process;
Contact with the material is made of GB 304 stainless steel.
The frame material can be selected from the national standard 304 stainless steel, depending on customer requirements.

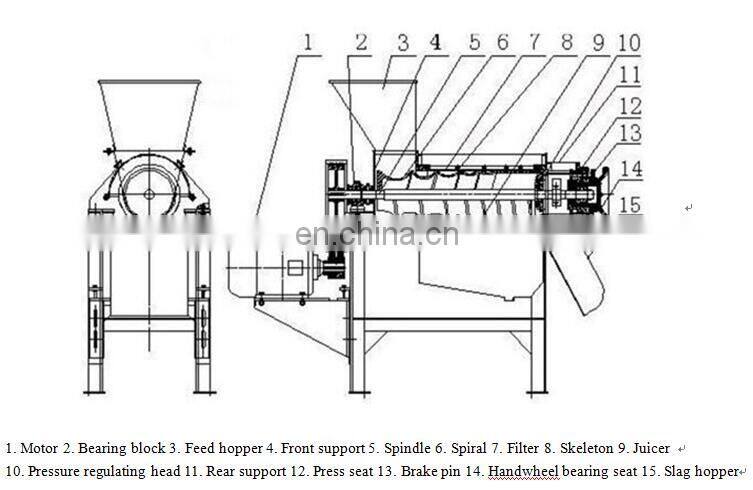

1. structure:
from the front support, feeding hopper, crushing, spiral, filter, juice, rear support, slag trough and other parts, the left end of the spiral spindle is supported by the rolling bearing Inside, the right end is supported in the hand wheel bearing housing, and the motor is driven by a pair of V-belt drive screws.
2. Working principle:
The main component of the equipment is that the spiral diameter gradually increases along the direction of the slag outlet and the pitch gradually decreases. When the material is propelled by the spiral, the volume of the spiral cavity is reduced to form the pressing of the material. The direction of rotation of the helical main shaft is viewed from the feed hopper toward the slag groove in a clockwise direction. The raw material is added to the feed hopper, pressed under the advancement of the spiral, and the pressed juice flows through the filter into the bottom of the juicer, and the waste is discharged through the annular gap formed between the spiral and the tapered portion of the pressure regulation. The movement of the pressure regulating head in the axial direction adjusts the size of the gap. For clockwise (when the seat is turned from the slag tap of the equipment to the end of the feed hopper, the pressure head is turned to the left, the gap is reduced, and the gap is enlarged.) The size of the gap is changed, that is, the row is adjusted. The resistance of the slag. The slag removal rate can be changed, but if the void is too small, under strong extrusion, some of the slag particles will be extruded through the filter together with the juice. Although the juice is increased, the quality of the juice is relatively decreased, and the size of the void should be regarded as User specific process requirements. Stainless steel spiral fruit and vegetable juicer is suitable for a variety of fresh fruit and vegetable beating separation. Products such as: orange meat, grapes, kiwi, mulberry, bayberry, peach (nuclear), etc., can reach the jam juice, separate the core, fruit seeds and thin skin, and also can cut the vegetables (cut) Tomato, pepper, celery (cutting) and other vegetable juices are obtained, and vegetable gluten is separated. It is an ideal machine for making jam, juice and vegetable juice, and is an important equipment for food processing enterprises.
