Fruit vegetable belt juice processing machine

Name: Fruit vegetable belt juice processing machine
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

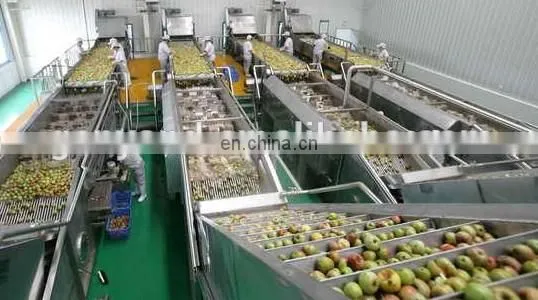

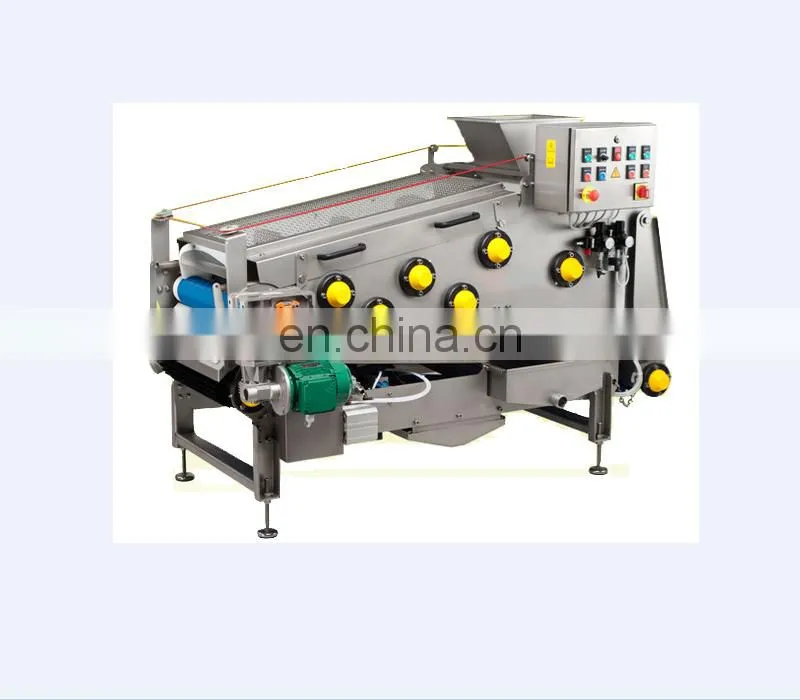

Fruit vegetable belt juice processing machine

1. Wide range of raw fruits are available, this line is applicable for all kinds of hard seed fruits with pulp, such as peach, apricot, plum etc;

2. Flexible configuration to make this line, according to different requirements of the end products, some exact equipments with different functions are flexible chosen, for example: enzymolysis, evaporation etc.

3. According to different investment and product structure prefered, client can require average, middle level or high level processing equipments.

4. End product with pure flavor, bright colour, and high juice output percentage.

5. Whole line with features as high level automatically, low labour intensity, easy operation, safe function and low operation cost.

6. Whole line adopt sanitary design, can clean thoroughly, with high level sanitation.

Parameters:

Nominal rating kg/h	700 kg/h
Motor rating	Drive motor 0,55 (0,75) washing system motor 0,12 (0,16) kW (PS)
Connected load	400V 50Hz (3-phase)
Electrical protection	16 A
Machine size	1940 x1160x1300(mm)
Discharge height	1300 mm
Belt width	500 mm
Strip length	6600 mm
Conveyor width	300 mm
Conveyor height	0-50 (9 levels) mm
Weight	520 kg
Material	1.4301 / AISI 304
Juice yield	75 % (high )
Belt speed	1,4 - 3,6 (continuous) m/min
Water consumption for cleaning	3 l/min
Connection for waste water	Ø76,1mm
Connection for juice outlet	1 1/2 "
Height juice outlet	300 mm
Height waste water drain	170 mm
Height pomace ejector	480 mm
Scope of supply	High pressure cleaner, compressor

Applications

Fruit vegetable belt juice processing machine

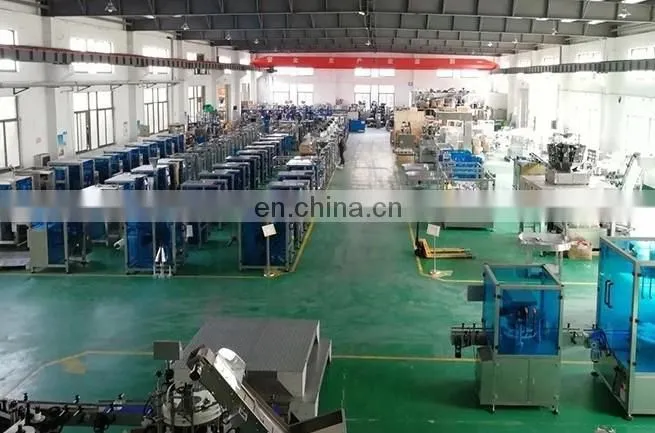

Company Profile

Shanghai Genyond Technology Co., Ltd.

Shanghai Genyond Technology Co., Ltd. is a manufacturer of extracting unit and fruit & vegetable processing line with well-equipped testing facilities and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and beverage and other industries.

Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.

We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
