Home > Products > dairy/milk/ice cream processing line > Factory Dairy making machine/mini pasteurized milk & yogurt processing plant/long life UHT milk production line machinery

Factory Dairy making machine/mini pasteurized milk & yogurt processing plant/long life UHT milk production line machinery

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

End Products

End Product Containers Of Pasteurized Milk

Plastic pouches:
100g-1000g small pouches transported and stored in 2-6℃with shelf life 5-7 days.

PE or glass bottles:
200ml-3000ml bottles transported and stored in 2-6℃with shelf life 5-7 days

Gable top cartons:
100g-1000g small roof cartons transported and stored in 2-6℃with shelf life 5-7 days.

Product Description

Pasteurized milk uses raw milk as raw material and requires high milk sources and is processed by pasteurization. The purpose is to kill all pathogenic microorganisms in the milk, the production process is to heat at 75-85 ℃ holding for 10-15 seconds, then cold filling into containers. The shelf life is generally not more than 7 days keep refrigerated at 2-6 degrees. Because it is low-temperature sterilization, on the basis of killing microorganisms, it can retain the natural and original nutrients of milk to the greatest extent.

Item	Whole Pasteurized Milk	Partially Skimmed Pasteurized Milk	Skimmed Pasteurized Milk

Fat Content	≥3.1%	1.0%-2.0%	≤0.5
Protein Content	≥2.9
Non-fat Milk Solids	≥8.1%
Acidity Value	≤18.0°T
Impurity	≤2mg/kg
Total Number Of Colonies	≤30,000cfu/ml
Escherichia Coli	≤90MPN/100ml
Pathogenic Bacteria	NA

Work flow

Flow chart

System Overview

Scope range:

Milk process line, dairy process machine
Capacity of plant: 2Ton-300Ton Per Day.
Products type: 1 or 2 or more kinds.
milk process line, dairy process machine
1. Milk Reception or Powder Dissolving Mixing Section
2. Mixing and Sugar Melting Section
3. Pasteurizer and Homogenizer
4. Milk Storage or Yogurt Producing Unit
5. Filling or Packing Unit
6. CIP Cleaning Systems
7. After Treatment Equipment, like conveyor, package or pallet, etc.
8. There are other assistant equipments used such as steam boilers, air compressor, cold water unit, etc.
9. Installation materials for the material pipeline, non-material pipeline as well as electrical installation are provided

Filling types Line

Filling types can be decided by the customer then designed accordingly.Capacity of plant: 2Ton-300Ton Per Day.
Products type: 1 or 2 or more kinds.
Filling types can be decided by the customer then designed accordingly.
Our company can design customized production lines in accordance to the customers' requirements.
We are a major milk beverage, yogurt production line manufacturer based in China. We are approved by ISO9001:2008.
We provide :
1. Professional technical design , flow chart, factory layout, equipment drawing design, civil engineering suggestion etc.
technical support
2. Manufacturing whole production line equipment
3. Delivery equipment, arrange engineer go to client workshop installation and commissioning
4. Training client's operators to runing each equipment, until end product comes out

System components

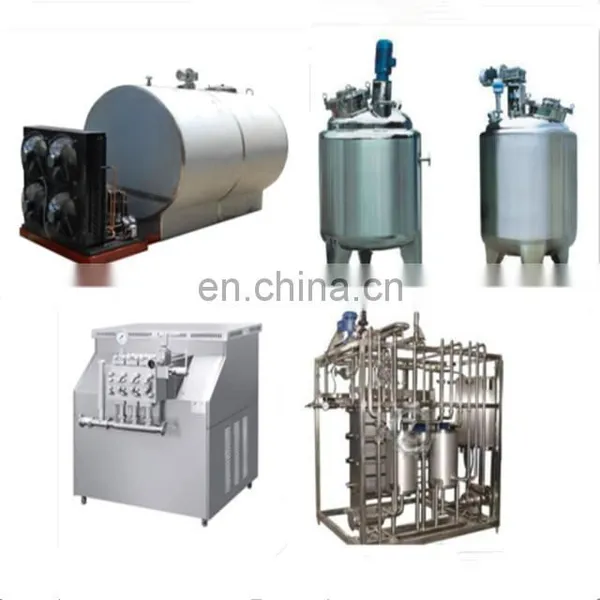

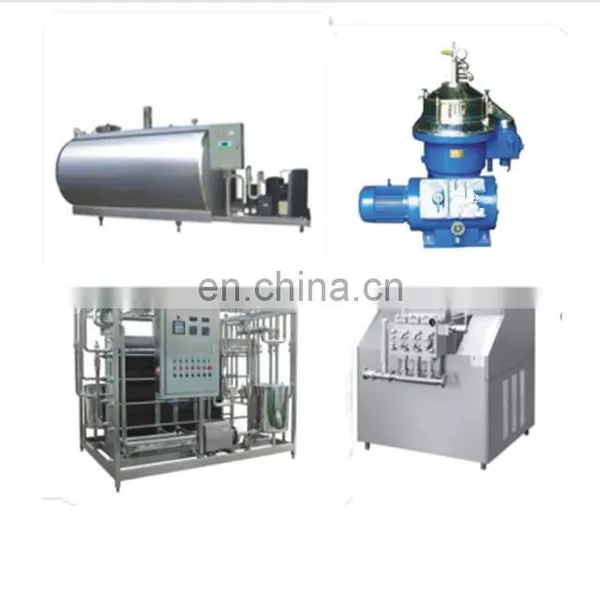

1. Milk weighing and receiving tank > 2. Milk Cooling System >3. Milk storage tank > 4. Milk Pasteurizing system > 5. Pasteurized milk filling system > 6. CIP cleaning system

1. Milk weighing and receiving tank	2. Milk Cooling System

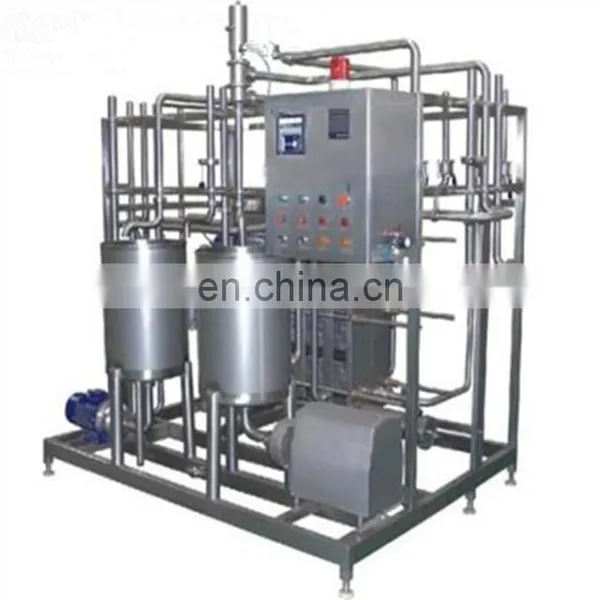

3. Milk storage tank	4. Milk Pasteurizing system

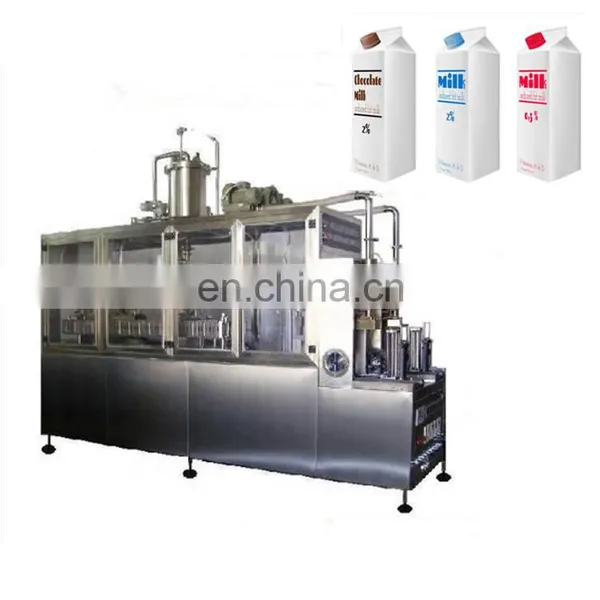

5. Pasteurized milk filling system	6. CIP cleaning system

Advantages

As a group company, we have more than 10 factories in China. We have been in machines production more than 20 years. Our machines have been exported to more than 280 countries.

High quality of machine

From the raw material, we just buy the top quality product. For motor, electronic part, we use top quality brand in the world.

Low price in our product

For we buy high quantity raw material and spare part, we can get low price from our cooperated suppliers. So it reduce a lot cost.

Good after sale service

Before the machine is ship, it will test well. We will send our engineers for installation within 10 days after the goods reach your factory.

Warranty

We can offer 2 years warranty for free. Any problem for our machine, we can provide the spare parts for free.

Company Profile

Shanghai Genyond Technology Co., Ltd.

Shanghai Genyond Technology Co., Ltd. is a manufacturer of extracting unit and fruit & vegetable processing line with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and beverage and other industries.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
