Turnkey Project Pasteurized Milk/yogurt Production Line
- T/T Credit Card
You May Like
-
Yogurt Cup Filling and Sealing Machine
-
Soft Ice Cream Production Line Factory in 300L
-
Electric Centrifugal Milk Spray Drying Machine
-
China 2000kg Age Tank for Ice Cream Processing
-
Small Scale Uht Milk Processing Plant/uht Milk Plant
-
Full Automatic Tiger Nuts Milk Almond Milk Processing Machine Processing Line
Product Description
Description of Milk processing line
This Milk processing line produce several types of market milk products, i.e. whole milk, skimmed milk and standardized milk of various fat contents.
This Milk processing line raw milk can be fresh milk or powder milk, the procedure method can be pasteurization or HTST pasteurizer or UHT processing.
End product package of this Milk processing line can be plastic pouches, plastic cups, plastic bottles, glass bottles, roof top box, pre-pak pouches , Tetra pak etc. for this Milk processing line according to different end product and package type, the production technology is differently designed, but commonly include the following steps:
Milk Reception → Pasteurization → Homogenization → Yogurt making →Milk Storage → Packing → Refrigeration → Hot water generator → Laboratory → Install and commissioning.
As a professional milk and juice production line supplier, we can design,
manufacture, install milk production line and milk plant for producing all kinds of dairy products, such as pure milk, flavored milk, sour milk, yogurt, milk drinking and ice cream, butter, soy milk, tea drinking, energy drinking and so on.The whole milk production line includes the following units:
1. Milk reception or powder & water mixing unit.
This part is to prepare and mix the raw material. If the fresh milk is in urgent need or not enough for production, powder milk can be used to replace it.
2. Mixing and sugar melting unit.
Mixing machine and heat system are needed to melt the sugar and supply hot water, and then before entering the mixing tank (blending tank) for further mixing, the syrup should be cooled.

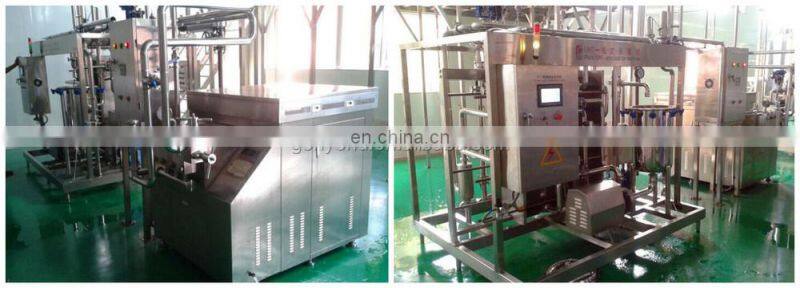

3. Pasteurizer and homogenizer.
This part is to kill the bacteria, thus ensuring the safety of products.
The homogenizer is used to make the products more homogeneous which can help to improve the quality and prolong the shelf life of products.
The degasser is used to remove the air that is mixed in the product. According to different products types and filling types, the pasteurizer is strictly chosen to suit the plant.
4. Storage or yogurt producing unit.
5. Filling or packing unit.
We can provide many kinds of filling types, such as plastic bag, PRT bottle, HDPE bottle, glass bottle, gable bottle, and plastic cups and so on. You can choose what you want.
6. CIP cleaning system.
7. After treatment equipments such as conveyer, package or pallet etc.
8. Some assistant equipments like steam boiler, air compressor and cold water unit etc.
9. Materials for the product pipes installation, power pipes installation and
also electrical installation.
Standard Equipment list of DAIRY PRODUCTION LINE | ||
NO. | NAME | MAIN TECHNOLOGY PARAMETER |
1 | MILK RECEIVESTORAGE | |
2 | milk receiving tank | SUS304 stainless steel,single layer,CIP cleaning ball |
3 | milk pump | SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
4 | double filter | SUS304 stainless steel,two pipe,Stainless Steal Filter Element 100 Mesh |
5 | dish separator | auto residue discharge |
6 | cooling tank | SUS304 stainless steel,alveolate jacket,attached with compressor |
7 | milk pump | SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
8 | blending tank | SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet |
9 | milk pump | SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
10 | mini set of plate-type heat exchanger | SUS304 stainless steel,two stages, |
11 | milk pump | SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
12 | UHT sterilizer | tub-type,sterilizing temperature 137 C,holding time 4S,full automatic control |
13 | high pressure homogenizer | 40MPa,(starting box included) |
14 | CIP system | |
15 | semi-auto CIP system | outer coat of SUS304 stainless steel material,inner shell of SUS316,single cleaning way,Concentrated acid/alcali tank adding system based on US technology, 100L×2 acid/alcali Concentrate tanks |
16 | CIP return pump | SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
17 | installation part | whole milk processing line installation and commissioning |
