China 2000kg Age Tank for Ice Cream Processing
- T/T Credit Card
You May Like
-
Small Scale Uht Milk Processing Plant/uht Milk Plant
-
Full Automatic Tiger Nuts Milk Almond Milk Processing Machine Processing Line
-
Factory Automatic Plant Base Nuts Soybean Coconut Milk Almond Making Machine Milk Processing Line Uht Milk Production Plant
-
Full Automatic Goat Milk Processing Small Plant Price Almond Milk Processing Machine Processing Line
-
Small Scale Tiger Nuts Milk Almond Milk Uht Milk Processing Plant / Line / Machine
-
Coconut Milk Tiger Nuts Almond Milk Processing Machine Processing Line
Product Description

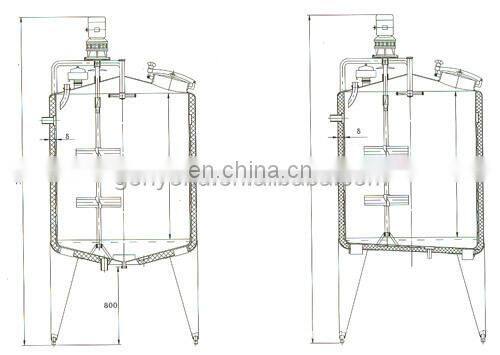

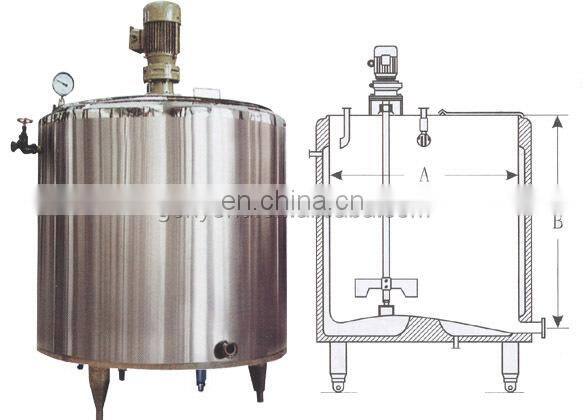

2000L tank
Working pressure: atmospheric pressure
Maximum working temperature: 100 ° C
Effective volume: 2m3
skills requirement
1, the equipment in accordance with JB/T4735-1997 "steel welded atmospheric pressure vessel", GB16798-1997 "food machinery safety and health" for manufacturing, acceptance and inspection
2, the equipment adopts argon arc welding machine, the welding form and the dimensions are shown in the drawings according to HG20583-1998 "Steel Chemical Container Structure Design Regulations"
3, the surface of the welded joint shall not have cracks, pores, craters, undercuts, etc., the fillet weld height shall be the thickness of the thin plate, and the height of the strengthened version shall be 70% of the plate thickness, and not more than the thickness of the plate, all The welded joints shall be ground to the base material, and all fillet welds shall be smoothed and smoothed to the base material.
4, the equipment is applied mechanically polished, the inner surface should be polished to 300mesh

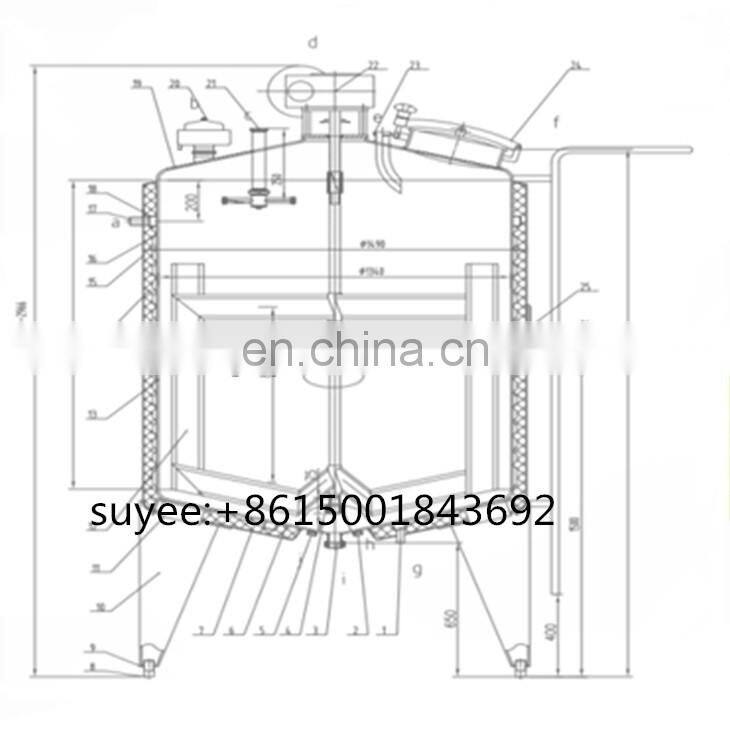

5, nozzle orientation according to the top view
6, all the height of the nozzle is not marked as 50mm
7, all interfaces should be smooth transition of the flanging, the center line of each take-up should be coaxial with its phase-filled pipe, the deviation is not more than 1% of the pipe diameter, and not more than 2mm
8, X is the nameplate, dial
9, all live connections are based on SMS standards
No | Connect size | connect | use |
a | Φ38*1.5 | Light pipe | Steam import |
b | Φ76*1.5 | Clamp | Breathable cover |
c | Φ51*1.5 | Male head | CIP port |
d |
|
| Stirring hole |
e | Φ51*1.5 | Male head | Inlet |
f | Φ400 |
| Manhole |
g | Φ38*1.5 | Light pipe | Cooling nozzle |
h | M27*2 | internal thread | Thermometer interface |
i | Φ38*1.5 | Live two-piece | Outlet |
j | 1’’ | internal thread | Temperature sensor interface |
