Home > Products > dairy/milk/ice cream processing line > GYC Mini Small Pasteurized Soy Milk Fruit Apple Juice Pasteurizer
GYC Mini Small Pasteurized Soy Milk Fruit Apple Juice Pasteurizer
- T/T Credit Card
You May Like
-
High Quality Cheese Mixer Cheese Emulsification Mixer
-
Soy Milk / Camel Milk /Milk Pasteurization Machine for Sale
-
Factory/industrial /commericalsoy Milk / Camel Milk /Milk Pasteurization Machine for Sale
-
Industrial Tank CIP Washing Systems
-
Gas Heating Automatic Peanuts Roaster/cashew Almond Roasting Machine/roasting Machines Sunflower Seeds
-
Factory Discount Automatic Peanuts Nuts Roast Machine/sunfolwer Seed Roasting Machine
Product Description

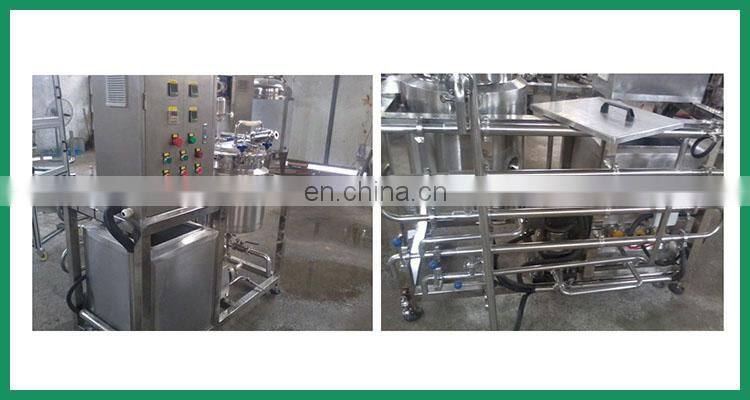

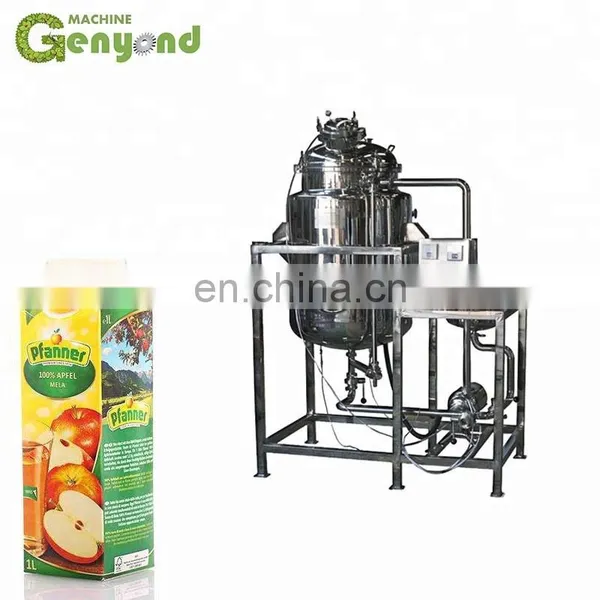

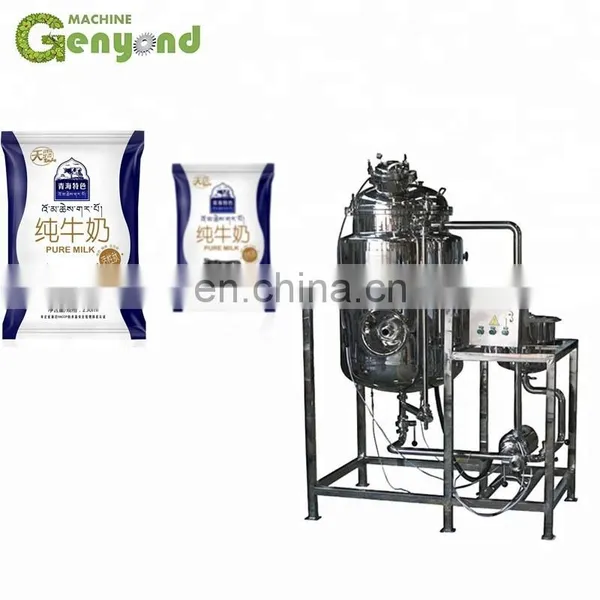

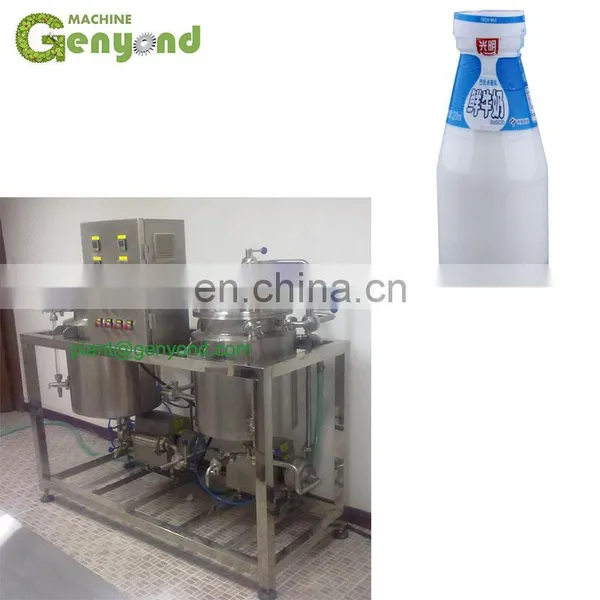

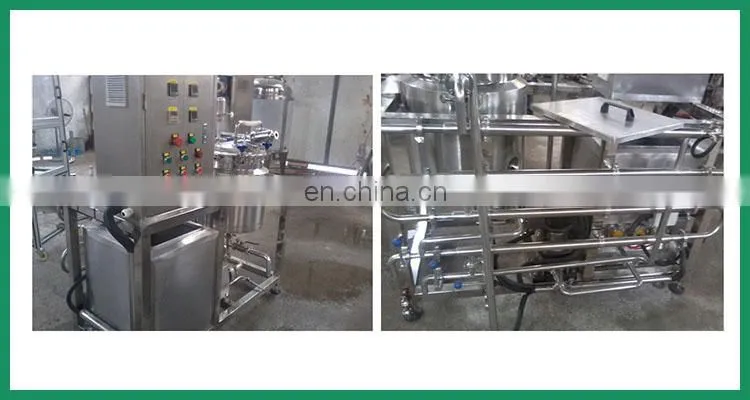

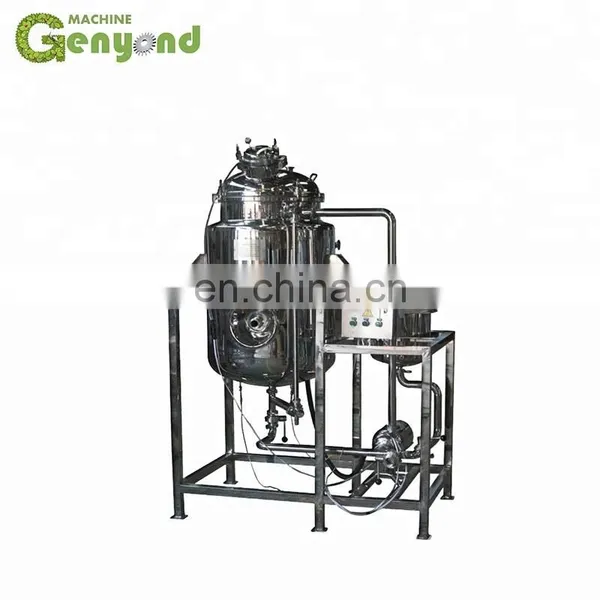

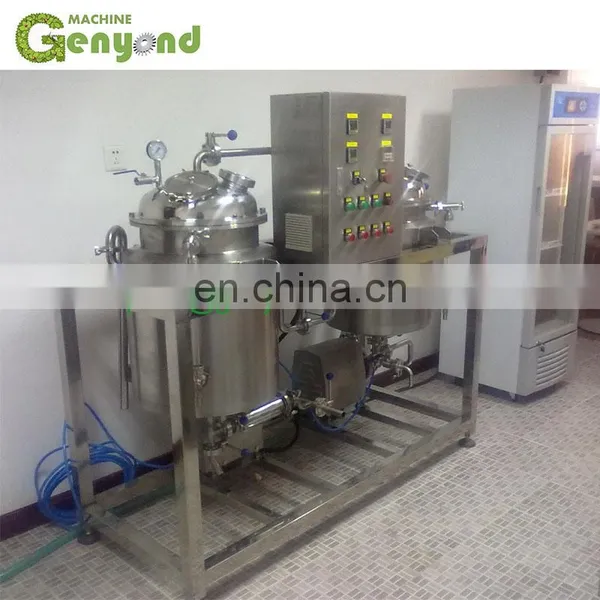

GYC mini small pasteurized soy milk fruit apple juice pasteurizer
Scope of use
This equipment is widely used in raw milk, soy milk, bio pharmaceutical, bean products, liquid condiments and other materials to determine and update raw materials, product taste identification, color evaluation, stabilizer / emulsifier application, new product research and development and batch production of pasteurized milk products. This production pasteurizer is integrated with heating, sterilization, cooling and hot filling. It is an ideal set of equipment for small pasteurized milk enterprises in schools and communities.
Features
The sterilization temperature of the equipment can be set according to the requirements of pasteurization or high temperature sterilization. The equipment adopts casing sterilization, the area of heat transfer is large, the heat exchange rate is fast, and the sterilization temperature of the equipment can be adjusted at 62 degree C~85 C. All the equipment in contact with the product are made of SUS 304 stainless steel. The pipe washer and seal are made of polytetrafluoroethylene with food grade. The product line is connected to the DIN pipe connector. In the display output, the production pasteurizing machine is equipped with digital display temperature control system and timing sterilization control system, and can select the sterilization temperature and time as well as the clearance time of the pump cycle time according to the user's requirements. The equipment is a multi tank combined structure, which is very suitable for small batch and multi variety production.
| Packaging size |
1800mm*750mm*1900mm (customized according to customer needs) |
| Product name | GYC mini small pasteurized soy milk fruit apple juice pasteurizer |
Parameter
1. the equipment occupies an area of only 2 square meters, with a miniature superheater generator and no external steam generator or steam boiler.
2. cooling water consumption 200-350L / H
3. rated capacity: 20-150L/H (production on demand), the maximum throughput of this device is 150L (according to customer needs).
4. the temperature of 75~85 is up to 90 degrees C, which can be adjusted according to the actual needs. The control technology of PID constant temperature can be regulated in real time, so that the temperature control of the whole temperature area is true and the precision of sterilization temperature control is 1.
5. the sterilization time is fixed according to the industrial standard according to the sterilization temperature. 6. the cycle is the power of the pump: 0.37KW cycle time can be fixed, and the cycle time can be fixed.
7. pipe filter: food grade stainless steel filter screen, filtration accuracy 120~300 mesh optional.
8. the area of sterilization and heat transfer of equipment: 1.85M2
9. equipment heat transfer pipe diameter: 19mm
10. equipment working pressure: normal pressure
11. the equipment has its own pipeline and tank cleaning circulating pump, which can automatically clean the sterilization pipes and valves.
12. design power 17.5KW
13. the whole machine is made of high quality SUS304 stainless steel, and food grade seamless SUS304 pipes are used for material contact parts.
14. built-in Mini hot water generator
15. built-in PT100 temperature sensor
16. equipment structure: totally enclosed structure with health level auditions.
17. power supply: 3 phase 380V
PACKAGE:
Standard export packing.
DELIVERY TIME:
10-60 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Genyond is a group company which is speciallizing in extraction machine design, production and installation. Our head office is in Shanghai, China. It has 6 factories and 4 subsidiaries in China.
Our main products are food and beverage dairy machine, medicine machine, chemicals machine, filling and packing machine and so on. For more details, please visit sino-machine.en.china.cn.
YOU ARE WELCOME TO VISIT OUR COMPANY AND FACTORIES!
Any other questions, please contact us directly.
GYC mini small pasteurized soy milk fruit apple juice pasteurizer
Company Profile
Shanghai Genyond Technology Co., Ltd. is a manufacturer of extracting unit and fruit & vegetable processing line with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and beverage and other industries.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
