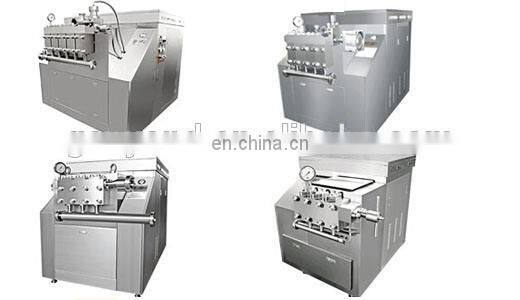

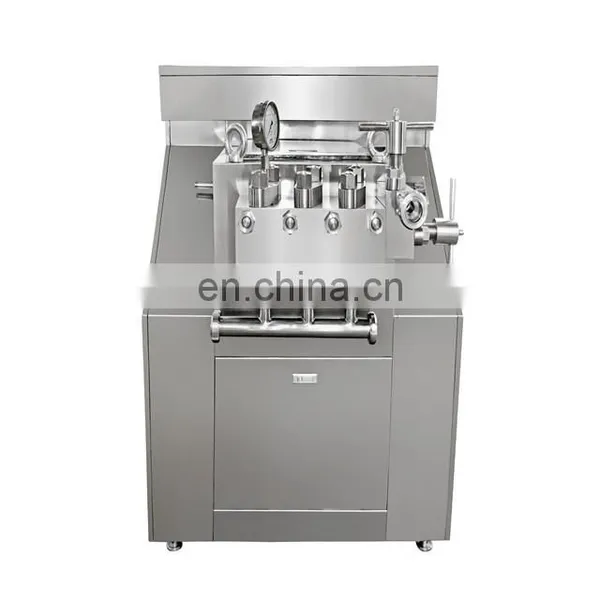

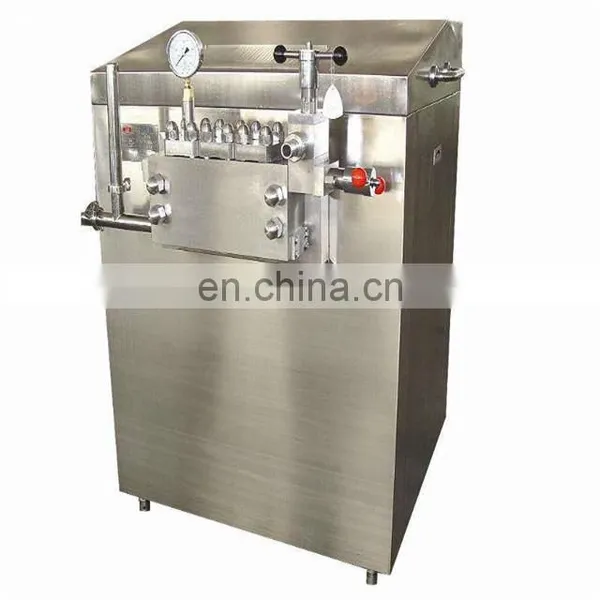

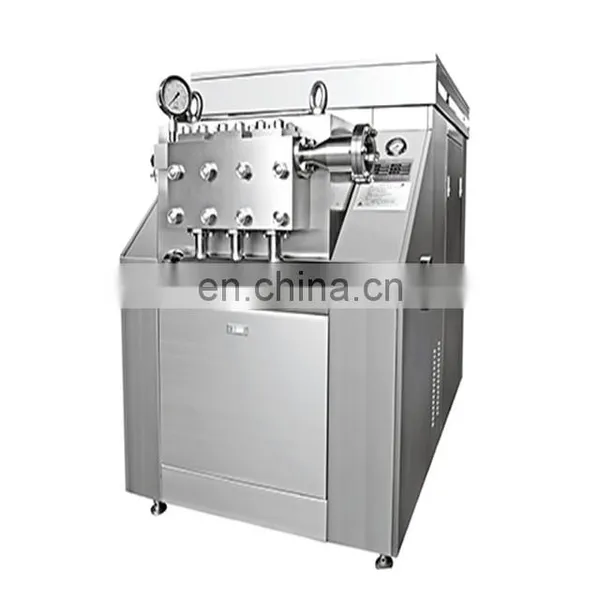

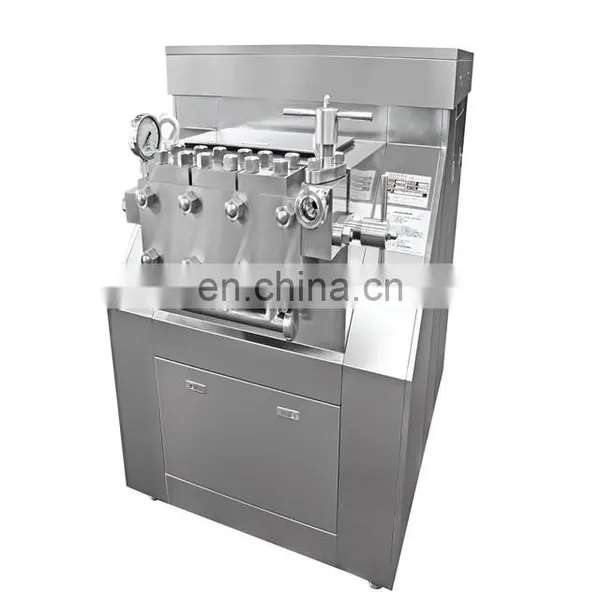

Commercial High Shear Homogenizer for Dairy Milk
- T/T Credit Card
You May Like
Product Description
High-pressure homogenizer (high-pressure homogenizing pump) is a special equipment for homogenizing and high-pressure conveying of liquid materials. It is used for liquid materials with a viscosity lower than 0.2Pa.s and a temperature lower than 85 degrees Celsius (liquid-liquid or liquid- Solid emulsification. Mainly used in food or chemical industry, such as: homogenization and emulsification process in the production process of dairy products, beverages, cosmetics, pharmaceuticals and other products. The device pulverizes particles and oil droplets in the liquid into small sizes through an integrated effect of pressure loss, expansion, shearing and high-speed impact in an adjustable flow-limiting slit process, while establishing ideal emulsions and dispersions. . It is a combination of functional principles such as ultrasonic pulverizer, colloid mill, ball mill and jet machine. The stability, consistency, mixing, easy absorption, nutritional value, shelf life, taste, color and activity of the product can be achieved in homogenization.
As a high-pressure homogenizer: It can make the material liquid refine and mix under the triple action of crushing and strong impact on the pressure-loss expansion. This equipment is an important processing equipment in the food, dairy and beverage industries. . The milk liquid such as milk and soy milk is homogenized under high pressure, which can make the fat globule in the dairy liquid remarkably refine, so that the product is easy to be digested and absorbed after eating, and the edible value is improved. In the production of products such as ice cream, the fineness and looseness of the liquid material can be improved, and the internal texture is obviously improved. Used in the production of emulsions, glues, juices, slurries, etc., it can prevent or reduce the stratification of the liquid, improve the appearance of the liquid, make the color more vivid, the fragrance is more concentrated, and the taste is more alcohol.
As a high-pressure pump, the material liquid is generated by the equipment to generate high pressure, and the powder is prepared by a spray drying device. It is an important equipment in the production of powder. This equipment can be used in the homogenization and high pressure conveying of other liquids, and in high pressure spraying.
Model:
Model | Flow capacity L/H | Max. pressure(MPa) | Rated pressure(MPa) | Power (KW) | Dimension (L×W×H) |
GJJ-0.2/25 | 200 | 25 | 20 | 2.2 | 755×520×935 |
GJJ-0.3/25 | 300 | 25 | 20 | 3 | 755×520×935 |
GJJ-0.5/25 | 500 | 25 | 20 | 4 | 1010×616×975 |
GJJ-0.8/25 | 800 | 25 | 20 | 5.5 | 1020×676×1065 |
GJJ-1/25 | 1000 | 25 | 20 | 7.5 | 1100×676×1065 |
GJJ-1.5/25 | 1500 | 25 | 20 | 11 | 1100×770×1100 |
GJJ-2/25 | 2000 | 25 | 20 | 15 | 1410×850×1190 |
GJJ-2.5/25 | 2500 | 25 | 20 | 18.5 | 1410×850×1190 |
GJJ-3/25 | 3000 | 25 | 20 | 22 | 1410×960×1280 |
GJJ-4/25 | 4000 | 25 | 20 | 30 | 1550×1050×1380 |
GJJ-5/25 | 5000 | 25 | 20 | 37 | 1605×1200×1585 |
GJJ-6/25 | 6000 | 25 | 20 | 45 | 1671×1260×1420 |
GJJ-8/25 | 8000 | 25 | 20 | 55 | 1671×1260×1420 |
GJJ-10/25 | 10000 | 25 | 20 | 75 | 2725×1398×1320 |
GJJ-12/25 | 12000 | 25 | 20 | 90 | 2825×1500×1320 |

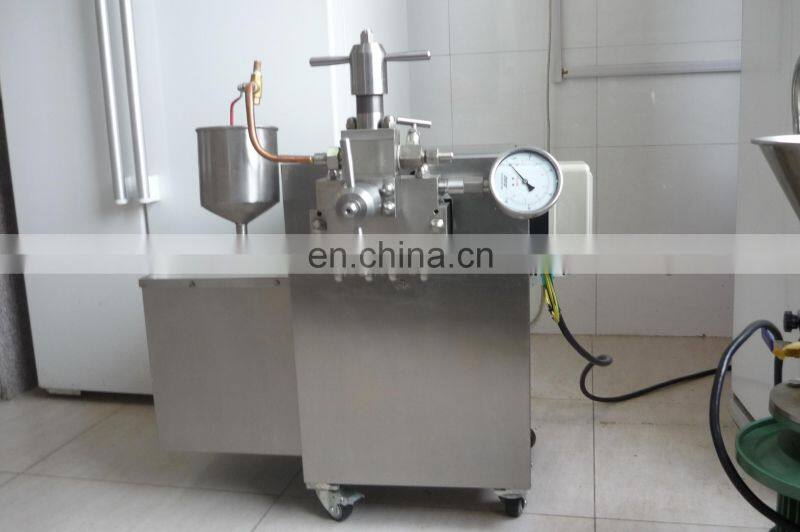

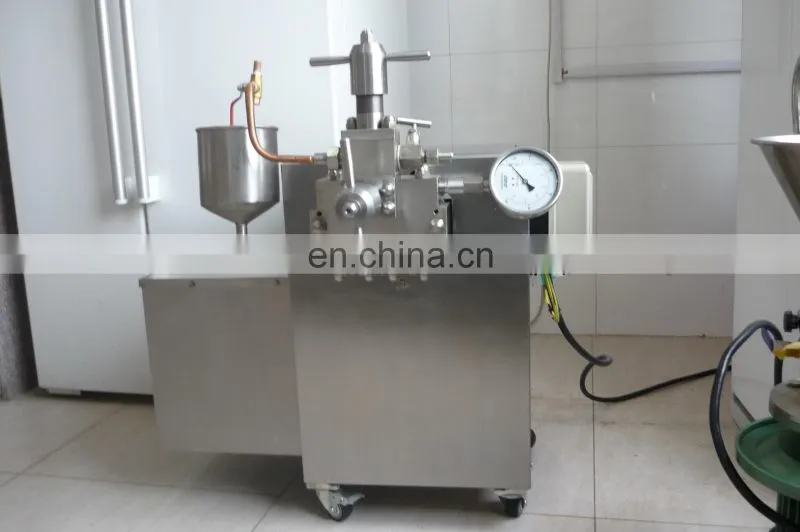

High-pressure homogenizers are widely used in production, scientific research and technology development in the fields of food, dairy, beverage, pharmaceutical, fine chemical and bioengineering. The small laboratory homogenizer (laboratory homogenizer) is suitable for colleges and universities, research institutes and food, pharmaceutical, cosmetics related professional experiments, but also for small-scale manufacturers.
