Uht Milk Beverage Fruit Juice Jam Paste Pasteurizer Sterilizer
- T/T Credit Card
You May Like
-
Soy Milk Sterilization Machine
-
Spray Dryer for Powder/milk Powder Spray Dryer/purple Potato Powder Production Line
-
Spray Drying Machine for Milk Whey Powder With Good Price
-
Commercial Tiger Nuts Drinks Processing Line / Tiger Nuts Milk Making Machine
-
Commerical Tiger Nuts Milk Making Plant / Process Machine
-
Cold Temperature Milk Sterilizer/ Milk Pasteurizer / Drink Sterilizer (CE TUV) for Milk,can Packing Paste Product Range
Product Description
Sterilizing Machine

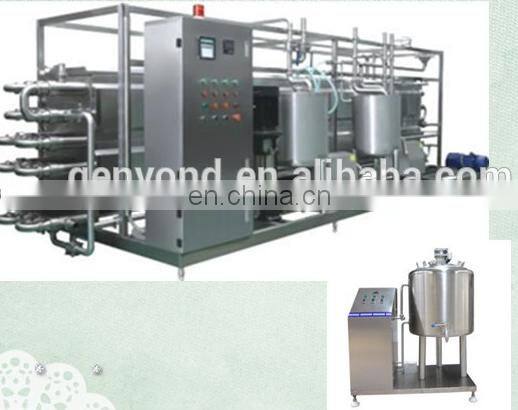

UHT tubular Sterilizing machine
Introduce
This machine adopts the present most advanced welding technology, selects the import high quality polish stainless steel pipeline. It is suitable for fresh milk, beverage and wine etc. If completing with the high-pressure even machine, it also can be used for thick material.
According to the various technology request from customers for heating, sterilization, heat-preservation, coolness of various material, we can design several process combination to meet technology standard and make the equipment has all kinds of safeguard measures, the character of high-temperature alarm and reflux. Meantime, we can am high-accuracy automation control system according to the requirement of customers.
Classification
there are there kinds of sterilized equipments:
♦plate sterilized machine,
♦ drivepipe sterilized machine
♦ UHT sterilized equipment
Model | GY-APS10 | GY-APS20 | GY-APS40 | GY-APS50 |
Operational Capacity (t/h) | 0.5~ 1.0 | 1.5~ 2.0 | 3.0~ 4.0 | 5.0~ 6.0 |
Sterilizing Temperature (°C) | 115 ~ 135 | 115 ~ 135 | 115 ~ 135 | 115 ~ 135 |
Steam Pressure Used(Mpa) | <0.78 | <0.78 | <0.78 | <0.78 |
High Temperature Heated Time | 4 ~ 6S | 4 ~ 6S | 4 ~ 6S | 4 ~ 6S |
Inlet Material Temperature (°C) (added cooling pipe) | <45 | <45 | <45 | <45 |
Outlet Material Temperature (°C) | <65 | <65 | <65 | <65 |
Steam Consumption (Kg/L) | <0.12 | <0.15 | <0.15 | <0.20 |
Motor Power (kW) | 1.5 | 2.2 | 3 | 4 |
Outside Size (mm) | 920*920*1400 | 1100*1100*1700 | 1200*1200*1800 | 1400*1400*2000 |
Floor Area (m2) | 0.8 | 1.0 | 1.5 | 2.0 |
weight (kg) | 280 | 380 | 550 | 700 |
Application
Use Range: Dairy products, Fruit, Drink, Syrup, Sauce, Vinegar.

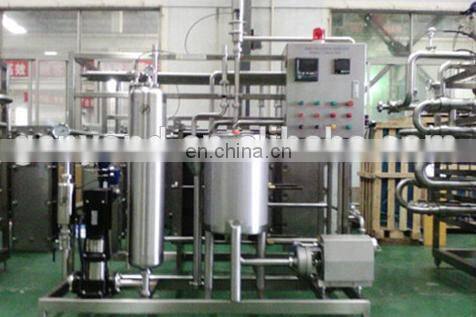

Pasteurization Sterilizing machine
Introduce
This equipment is widely used in milk, goat's milk, camel milk and milk pasteurization and cooling.
This device can be configured according to the needs of small scale aseptic filling machine, glass bottles, plastic bag filling machines.
This equipment includes feeding, loop filter, pasteurization and cooling.
The machine adopts electric heating.
Application
Milk, low-temperature meat products, ham, sausage, fruit, fruit juice, vegetable juice, pickles, pickles, salted vegetables, pickled vegetables,mustard, wild vegetables, jams, jelly, soy and other food vacuum flexible packaging hose soft bottle packaging, glass packaging for sterilization.
Model
| GY-300L | GY-500L | GY-1000L |
1680*1100*1700 | 2150*1250*1750 | 2500*1350*1850 |
1. We provide English manual, one year warranty,life-long maintenance.
2. If customer need, our engineers will provide assembling and training the workers.
The buyer shall bear the engineers round trip tickets fees, basic accommodation and Transportation,the allowance shall be paid by buyer.
3 we are factory
4.what capacity do you want. and we provide both half automatic and full automatic machines
5. pls tell me your detail requirement , so that we can recommend the best quality and the best price machine for you.
Suyee Li
GENYOND MACHINERY INDUSTRIAL GROUP LIMITED
NO.1328 Hengnan Road Minhang District 200000 Shanghai
Mob: +86 15001843692
