Dairy Making Machine/mini Milk Processing Plant/long Life Milk Production Line Machinery
- T/T Credit Card
You May Like
-
Uht Milk Beverage Fruit Juice Jam Paste Pasteurizer Sterilizer
-
Soy Milk Sterilization Machine
-
Spray Dryer for Powder/milk Powder Spray Dryer/purple Potato Powder Production Line
-
Spray Drying Machine for Milk Whey Powder With Good Price
-
Commercial Tiger Nuts Drinks Processing Line / Tiger Nuts Milk Making Machine
-
Commerical Tiger Nuts Milk Making Plant / Process Machine
Product Description
Introduce
This machine adopts the present most advanced welding technology, selects the import high quality polish stainless steel pipeline. It is suitable for fresh milk, beverage and wine etc. If completing with the high-pressure even machine, it also can be used for thick material.
According to the various technology request from customers for heating, sterilization, heat-preservation, coolness of various material, we can design several process combination to meet technology standard and make the equipment has all kinds of safeguard measures, the character of high-temperature alarm and reflux. Meantime, we can am high-accuracy automation control system according to the requirement of customers.
Classification
there are there kinds of sterilized equipments:
♦plate sterilized machine,
♦ drivepipe sterilized machine
♦ UHT sterilized equipment
|
Model |
GY-APS10 |
GY-APS20 |
GY-APS40 |
GY-APS50 |
|
Operational Capacity (t/h) |
0.5~ 1.0 |
1.5~ 2.0 |
3.0~ 4.0 |
5.0~ 6.0 |
|
Sterilizing Temperature (°C) |
115 ~ 135 |
115 ~ 135 |
115 ~ 135 |
115 ~ 135 |
|
Steam Pressure Used(Mpa) |
<0.78 |
<0.78 |
<0.78 |
<0.78 |
|
High Temperature Heated Time |
4 ~ 6S |
4 ~ 6S |
4 ~ 6S |
4 ~ 6S |
|
Inlet Material Temperature (°C) (added cooling pipe) |
<45 |
<45 |
<45 |
<45 |
|
Outlet Material Temperature (°C) |
<65 |
<65 |
<65 |
<65 |
|
Steam Consumption (Kg/L) |
<0.12 |
<0.15 |
<0.15 |
<0.20 |
|
Motor Power (kW) |
1.5 |
2.2 |
3 |
4 |
|
Outside Size (mm) |
920*920*1400 |
1100*1100*1700 |
1200*1200*1800 |
1400*1400*2000 |
|
Floor Area (m2) |
0.8 |
1.0 |
1.5 |
2.0 |
|
weight (kg) |
280 |
380 |
550 |
700 |
Application
Use Range: Dairy products, Fruit, Drink, Syrup, Sauce, Vinegar.
we also provide Dairy making machine/mini milk processing plant/long life milk production line machinery

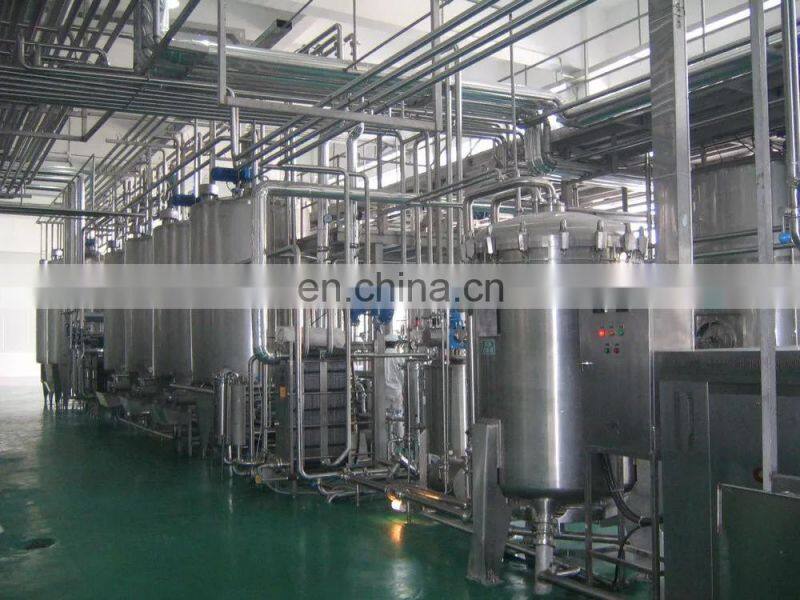

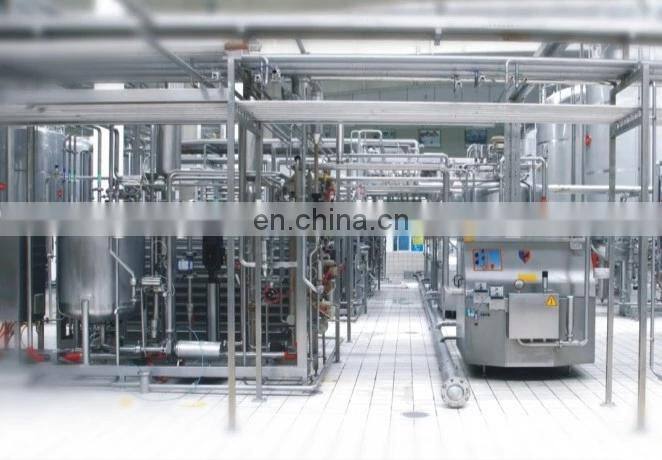

This Milk processing line produce several types of market milk products, i.e. whole milk, skimmed milk and standardized milk of various fat contents.
This Milk processing line raw milk can be fresh milk or powder milk, the procedure method can be pasteurization or HTST pasteurizer or UHT processing.
End product package of this Milk processing line can be plastic pouches, plastic cups, plastic bottles, glass bottles, roof top box, pre-pak pouches , Tetra pak etc. for this Milk processing line according to different end product and package type, the production technology is differently designed, but commonly include the following steps:
Milk Reception → Pasteurization → Homogenization → Yogurt making →Milk Storage → Packing → Refrigeration → Hot water generator → Laboratory → Install and commissioning.
As a professional milk and juice production line supplier, we can design,
manufacture, install milk production line and milk plant for producing all kinds of dairy products, such as pure milk, flavored milk, sour milk, yogurt, milk drinking and ice cream, butter, soy milk, tea drinking, energy drinking and so on.The whole milk production line includes the following units:
1. Milk reception or powder & water mixing unit.
This part is to prepare and mix the raw material. If the fresh milk is in urgent need or not enough for production, powder milk can be used to replace it.
2. Mixing and sugar melting unit.
Mixing machine and heat system are needed to melt the sugar and supply hot water, and then before entering the mixing tank (blending tank) for further mixing, the syrup should be cooled.
3. Pasteurizer and homogenizer.
This part is to kill the bacteria, thus ensuring the safety of products.
The homogenizer is used to make the products more homogeneous which can help to improve the quality and prolong the shelf life of products.
The degasser is used to remove the air that is mixed in the product. According to different products types and filling types, the pasteurizer is strictly chosen to suit the plant.
4. Storage or yogurt producing unit.
5. Filling or packing unit.
We can provide many kinds of filling types, such as plastic bag, PRT bottle, HDPE bottle, glass bottle, gable bottle, and plastic cups and so on. You can choose what you want.
6. CIP cleaning system.
7. After treatment equipments such as conveyer, package or pallet etc.
8. Some assistant equipments like steam boiler, air compressor and cold water unit etc.
9. Materials for the product pipes installation, power pipes installation and also electrical
installation.
| Equipment parematers | |||
| Model | Capacity | Steam consumption | Plant area |
| GY-200 | 200L/H | 0.1T | 150M2 |
| GY-500 | 500L/H | 0.3T | 200M2 |
| GY-1000 | 1000L/H | 0.5T | 500M2 |
| GY-2000 | 2000L/H | 1T | 800M2 |
1. We provide English manual, one year warranty,life-long maintenance.
2. If customer need, our engineers will provide assembling and training the workers.
The buyer shall bear the engineers round trip tickets fees, basic accommodation and Transportation,the allowance shall be paid by buyer.
3 we are factory
4.what capacity do you want. and we provide both half automatic and full automatic machines
5. pls tell me your detail requirement , so that we can recommend the best quality and the best price machine for you.
