Automatic milk processing line intruduce :

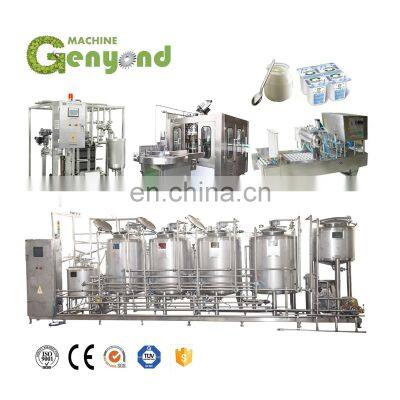

Turnkey pasteurized milk production line/UHT milk processing line/milk drink processing machines.

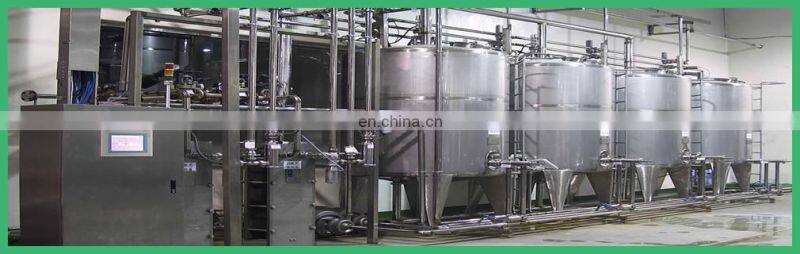

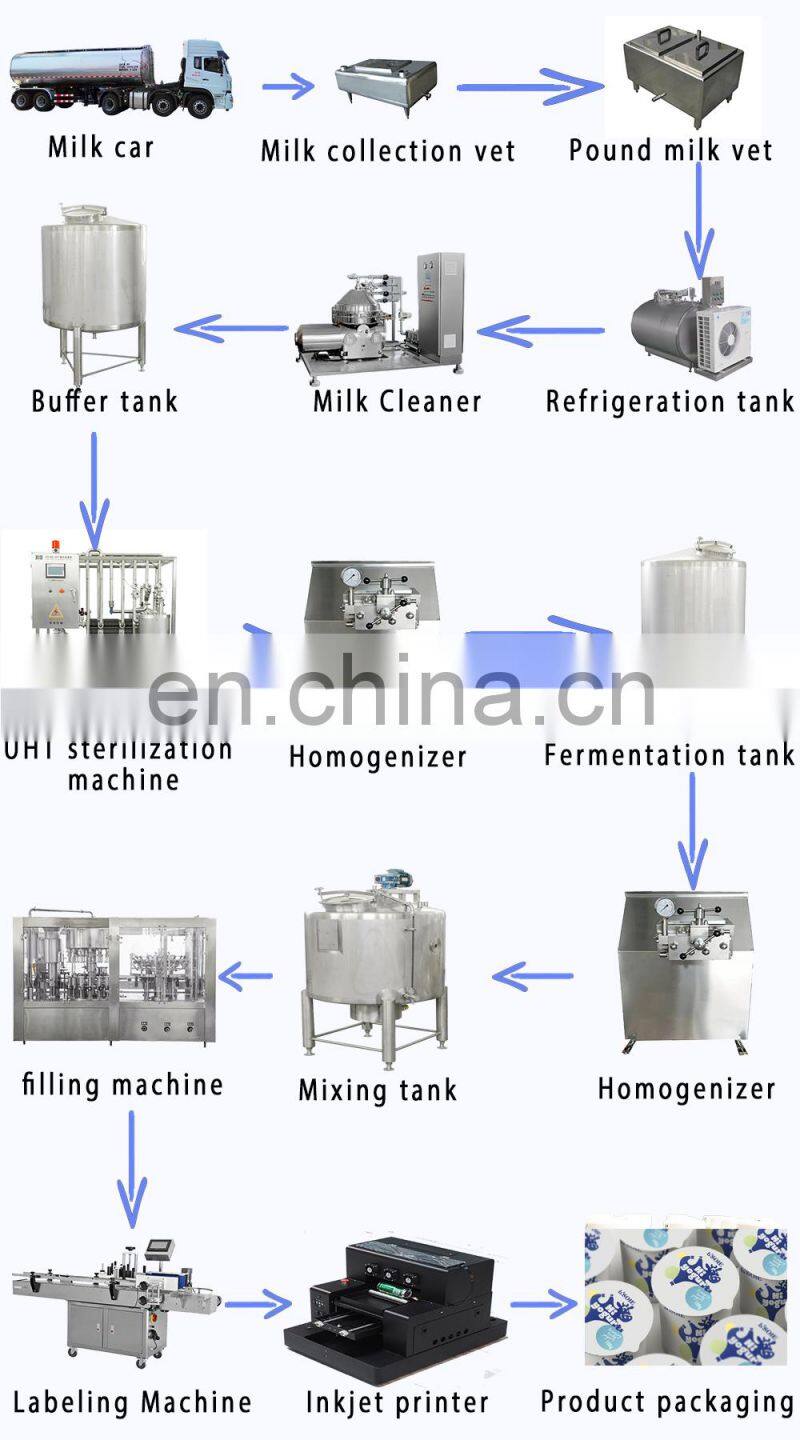

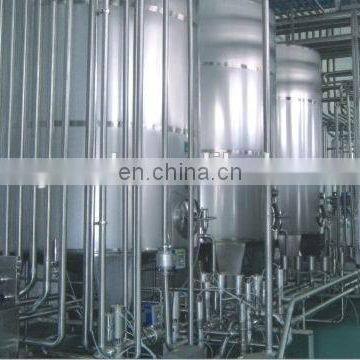

The whole milk production line consists of the following systems:
1. Water treatment system
2. Suger melt system
3. Sterilizer system
4. Filling and packing system
5. CIP cleaning system
6. After treatment equipments, like conveyor, package or pallet, etc.
7. There are other assistant equipments used such as steam boilers, air compressor, cold water unit, etc.
8. Installation materials for the process pipline, utility pipeline as well as electrical installation are provided.
Filling and packing types can be decided by the customer then designed accordingly.
Our company can design customized milk production lines in accordance to the customers' requirements. The production capacity varies from 1000L/h to 10000L/h according to customer's need
Note: this milk production lines can be widely used to produce UHT milk, pasteurized milk, setted milk, stirred milk, milk drink, yogurt, ice cream, condensed milk and milk powder, and so on.
|
MILK RECEIVESTORAGEAND CREAM SEPARETOR UNIT |
|
|
electron pound scale |
maximum weighing 500KG |
|
milk weighing tank |
made of SUS stainless steal,single layer,product feeded in through 40 mesh filter net,CIP cleaning ball |
|
milk acceptor |
SUS304 stainless steel,single layer,CIP cleaning ball |
|
milk pump |
SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
|
twin piping filter |
SUS304 stainless steel,two pipe,Stainless Steal Filter Element 100 Mesh |
|
dish separator |
auto residue discharge |
|
chiling tank |
SUS304 stainless steel,alveolate jacket,attached with compressor |
|
milk pump |
SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
|
PREPARING UNIT |
|
|
blending tank |
SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet |
|
milk pump |
SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
|
mini set of plate-type heat exchanger |
SUS304 stainless steel,two stages, |
|
high speed emulsification tank |
SUS304 stainless steel,heat insulated,bottom high speed emulsifier,digital readout thermometer, supporters with adjustable feet |
|
milk pump |
SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
|
twin piping filter |
SUS304 stainless steel,two pipe,Stainless Steal Filter Element 100 Mesh |
|
sterilizing,homogenizing unit |
|
|

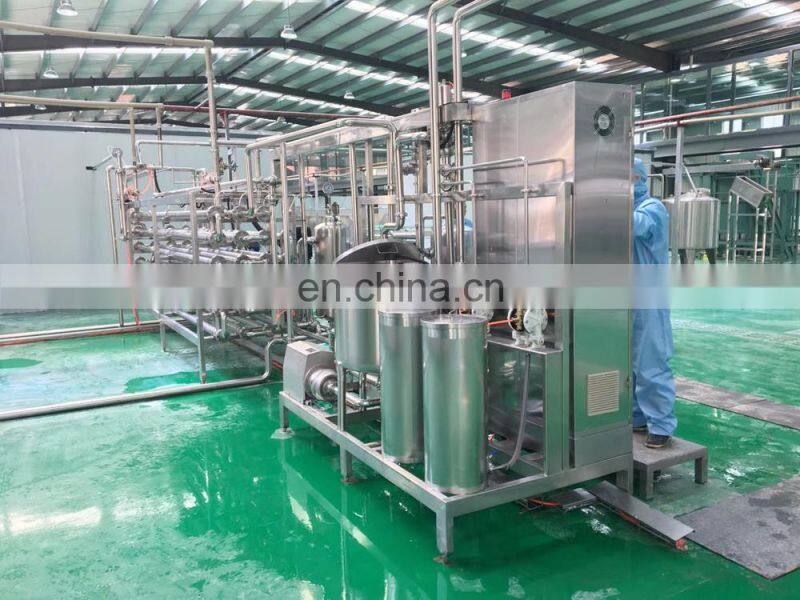

UHT sterilizer |
tub-type,sterilzing temperature 137 C,holding time 4S,full automatic control |
|
high pressure homogenizer |
40MPa,(starting box included) |
|
temperature holding |
SUS304,holding 300S |
|
distributing plate |
SUS304,3 holes |
|
cheesebutter processing unit |
|
|
bufferying tank |
SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve, digital readout thermometer,anti-eddy baffle,supporters with adjustable feet |
|
milk pump |
SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
|
cream seperator |
|
|
bufferying container |
SUS304,with cover |
|
milk pump |
SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
|
butter-churner |
SUS304,stepless timing |
|
cheese vat |
SUS304,with heating jacket and insising device |
|
pressor |
SUS304,6 heads |
|
mould |
SUS304,10L,with cover |
|
yogurt fermentation unit |
|
|
fermentation tank |
SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet |
|
rotary pump |
SUS304 stainless steel,Hard Alloy Mechanical Seal,manual stepless shift |
|
plate cooler |
SUS304,single stage,milk discharge at 4C |
|
rotary pump |
SUS304 stainless steel,Hard Alloy Mechanical Seal,manual stepless shift |
|
filling unit |
|
|
higher position tank |
SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet |
|

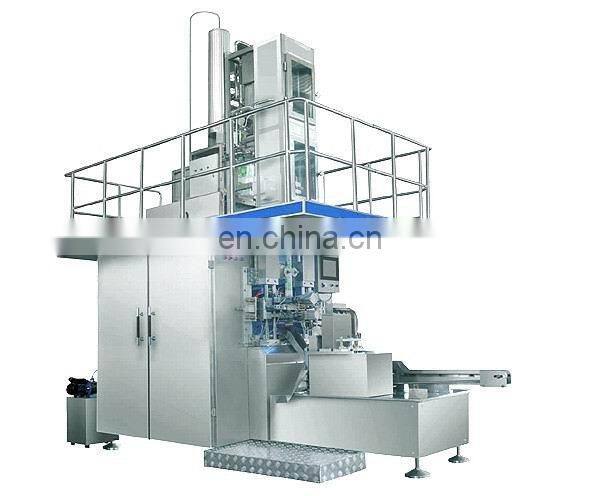

pasteurized milk filling machine |
|
|
yogurt filling machine |
|
|
CIP system |
|
|
semi-auto CIP system |
outer coat of SUS304 stainless steel material,inner shell of SUS316,single cleaning way,Concentrated acid/alcali tank adding system based on US technology, 100L×2 acid/alcali Concentrate tanks |
|
CIP return pump |
SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
|
installation part |
whole milk processing line installation and commissioning |
As a professional milk and juice production line supplier, we can design,
manufacture, install milk production line and milk plant for producing all kinds of dairy products,
such as pure milk, flavored milk, sour milk, yogurt, milk drinking and ice cream, butter, soy milk, tea drinking,
energy drinking and so on.
GENYOND MACHINERY INDUSTRIAL GROUP
It has 6 factories in China for food machine and packing machine.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Genyond machine has more than 100 engineers for the installation of oversea projects.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly.
A satisfying project will be given; A long-term cooperation will come.
