Mini Dairy Machine Pasteurized Milk Yogurt Fermentation Equipment/ Small Milk Pasteurization Sterilization Processing Line Plant
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Combined UHT/pasteurized Milk Processing Line/yogurt Processing Plant
-
Automatic Dairy Processing Equipment Machine Pasteurized Milk UHT Milk Yogurt Cheese Butter Cream Ghee Production Line Plant
-
Small Industrial Milk Powder Processing Plant Factory Spray Dryer Making Machine/dairy Equipment/milk Powder Production Line
-
Dairy/milk Processing Machinery Equipment
-
Milk Processing Machine/small Milk Processing Plan/mini Dairy Plant
-
Shanghai Factory Genyond Industrial Small Milk High Pressure Homogenization Machine Homogenizer and Pasteurizer for Milk
Product Description
Product Description
This Milk processing line produce several types of market milk products, i.e. whole milk, skimmed milk and standardized milk of various fat contents.
This Milk processing line raw milk can be fresh milk or powder milk, the procedure method can be pasteurization or HTST
pasteurizer or UHT processing. End product package of this Milk processing line can be plastic pouches, plastic cups, plastic bottles, glass bottles, roof top box, pre-pak pouches , Tetra pak etc.
This Milk processing line raw milk can be fresh milk or powder milk, the procedure method can be pasteurization or HTST
pasteurizer or UHT processing. End product package of this Milk processing line can be plastic pouches, plastic cups, plastic bottles, glass bottles, roof top box, pre-pak pouches , Tetra pak etc.
for this Milk processing line according to different end product and package type, the production technology is differently designed, but commonly include the following steps:

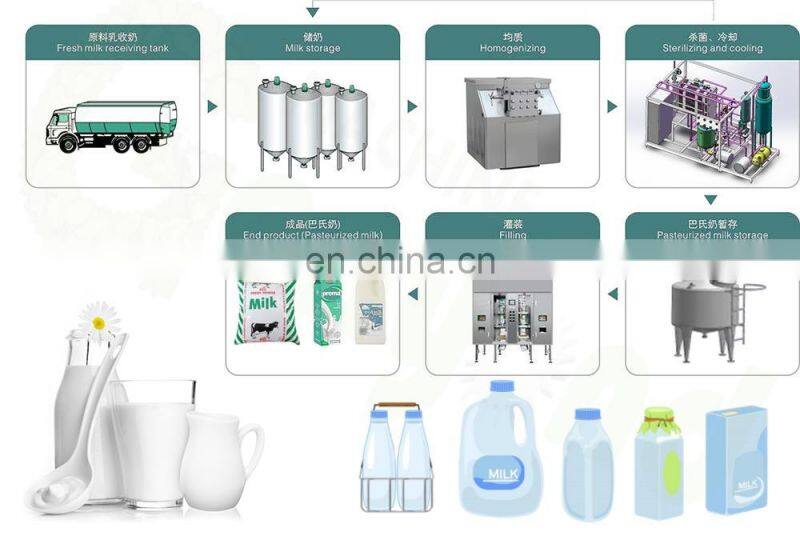

Milk Reception → Pasteurization → Homogenization → Yogurt making →Milk Storage → Packing → Refrigeration → Hot water generator →Laboratory → Install and commissioning.
As a professional milk and juice production line supplier, we can design, manufacture, install milk production line and milk plant for producing all kinds of dairy products, such as pure milk, flavored milk, sour milk, yogurt, milk drinking and ice cream, butter, soy milk, tea drinking, energy drinking and so on.The whole milk
production line includes the following units:
1. Milk reception or powder & water mixing unit.
This part is to prepare and mix the raw material. If the fresh milk is in urgent need or not enough for production, powder milk can be used to replace it.
2. Mixing and sugar melting unit.
Mixing machine and heat system are needed to melt the sugar and supply hot water, and then before entering the mixing tank (blending tank) for further mixing, the syrup should be cooled.
3. Pasteurizer and homogenizer.
This part is to kill the bacteria, thus ensuring the safety of products. The homogenizer is used to make the products more homogeneous which can help to improve the quality and prolong the shelf life of products.
The degasser is used to remove the air that is mixed in the product. According to different products types and filling types, the pasteurizer is strictly chosen to suit the plant.
4. Storage or yogurt producing unit.

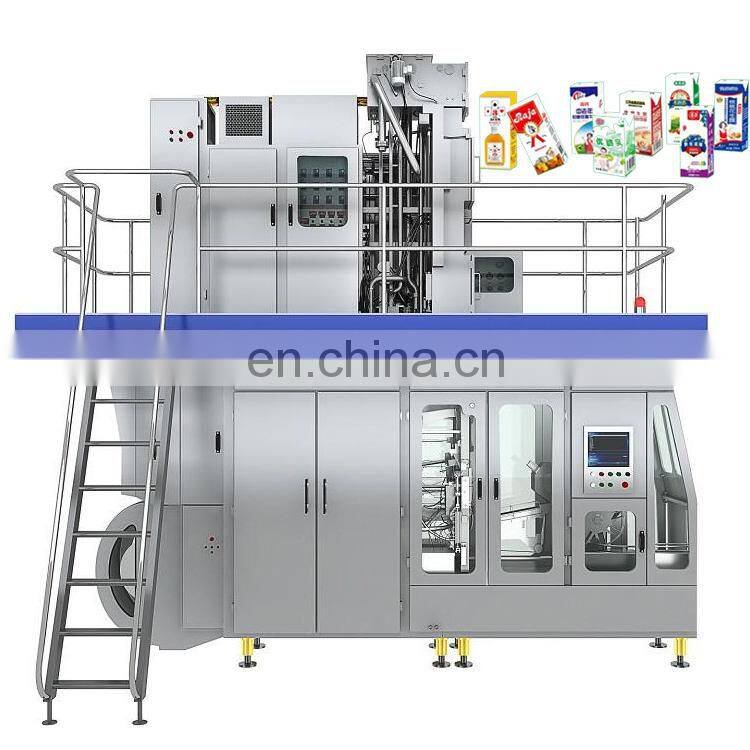

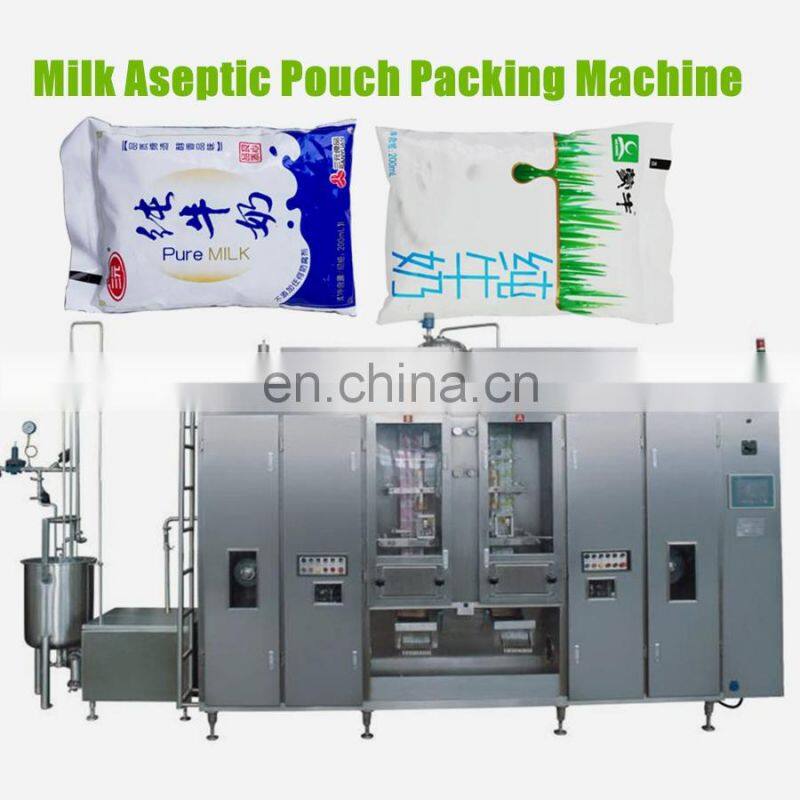

5. Filling or packing unit.
We can provide many kinds of filling types, such as plastic bag, PRT bottle, HDPE bottle, glass bottle, gable bottle, and plastic cups and so on. You can choose what you want.
6. CIP cleaning system.
7. After treatment equipments such as conveyer, package or pallet etc.
8. Some assistant equipments like steam boiler, air compressor and cold water unit etc.
9. Materials for the product pipes installation, power pipes installation and also electrical installation.
Milk Reception → Pasteurization → Homogenization → Yogurt making →Milk Storage → Packing → Refrigeration → Hot water generator →Laboratory → Install and commissioning.
As a professional milk and juice production line supplier, we can design, manufacture, install milk production line and milk plant for producing all kinds of dairy products, such as pure milk, flavored milk, sour milk, yogurt, milk drinking and ice cream, butter, soy milk, tea drinking, energy drinking and so on.The whole milk
production line includes the following units:
1. Milk reception or powder & water mixing unit.
This part is to prepare and mix the raw material. If the fresh milk is in urgent need or not enough for production, powder milk can be used to replace it.
2. Mixing and sugar melting unit.
Mixing machine and heat system are needed to melt the sugar and supply hot water, and then before entering the mixing tank (blending tank) for further mixing, the syrup should be cooled.
3. Pasteurizer and homogenizer.
This part is to kill the bacteria, thus ensuring the safety of products. The homogenizer is used to make the products more homogeneous which can help to improve the quality and prolong the shelf life of products.
The degasser is used to remove the air that is mixed in the product. According to different products types and filling types, the pasteurizer is strictly chosen to suit the plant.
4. Storage or yogurt producing unit.
5. Filling or packing unit.
We can provide many kinds of filling types, such as plastic bag, PRT bottle, HDPE bottle, glass bottle, gable bottle, and plastic cups and so on. You can choose what you want.
6. CIP cleaning system.
7. After treatment equipments such as conveyer, package or pallet etc.
8. Some assistant equipments like steam boiler, air compressor and cold water unit etc.
9. Materials for the product pipes installation, power pipes installation and also electrical installation.
Specification
Raw material | Fresh cow(goat) milk or milk powder or combined |
End product | Various kinds of pasteurized milk, yogurt, flavored milk, milk beverage,etc |
Capacity | 2000 – 1000,000 liters per day |
End product package | Pre-pak soft pouch, Tetra Brick, Gable Top box, plastic bottle, plastic cup, glass bottle,plastic pouch etc |
NO. | NAME | MAIN TECHNOLOGY PARAMETER | |
1 | MILK RECEIVESTORAGE | ||
2 | milk receiving tank | SUS304 stainless steel,single layer,CIP cleaning ball | |
3 | milk pump | SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished | |
4 | double filter | SUS304 stainless steel,two pipe,Stainless Steal Filter Element 100 Mesh | |
5 | dish separator | auto residue discharge | |

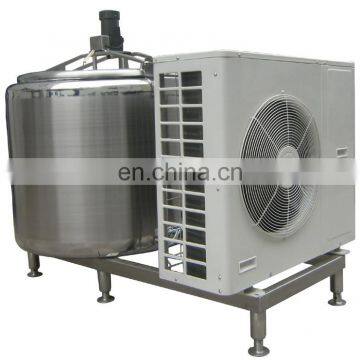

6 | cooling tank | SUS304 stainless steel,alveolate jacket,attached with compressor | |
7 | milk pump | SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished | |
8 | blending tank | SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet | |
9 | milk pump | SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished | |
10 | mini set of plate-type heat exchanger | SUS304 stainless steel,two stages, | |
11 | milk pump | SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished | |
12 | UHT sterilizer | tub-type,sterilizing temperature 137 C,holding time 4S,full automatic control | |

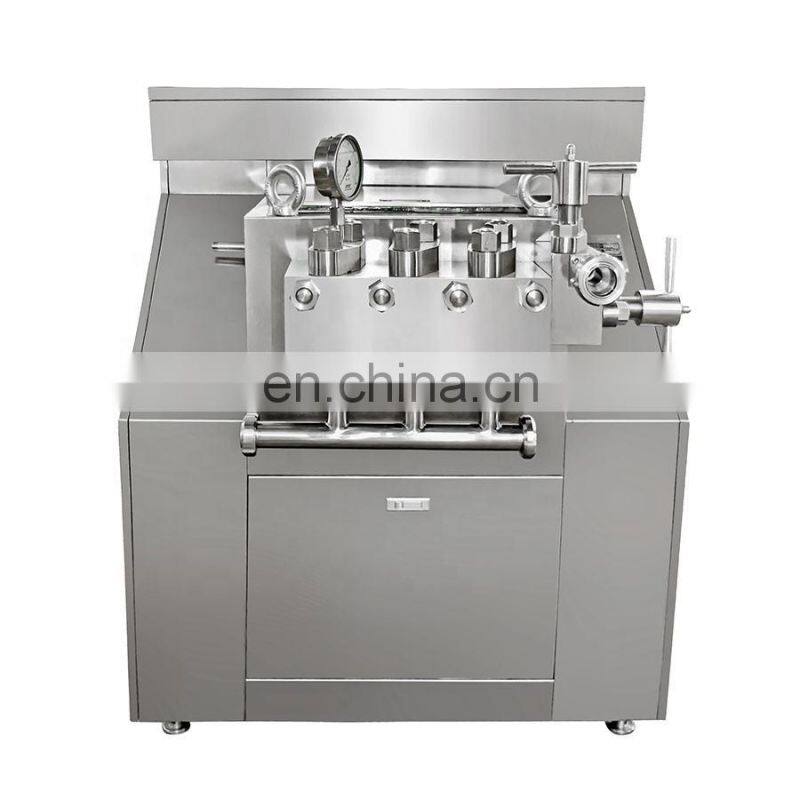

13 | high pressure homogenizer | 40MPa,(starting box included) | |
14 | CIP system | ||
15 | semi-auto CIP system | outer coat of SUS304 stainless steel material,inner shell of SUS316,single cleaning way, Concentrated acid/alcali tank adding system based on US technology, 100L×2 acid/alcali Concentrate tanks | |
16 | CIP return pump | SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished | |
17 | installation part | whole milk processing line installation and commissioning | |
GENYOND MACHINERY INDUSTRIAL GROUP
It has 6 factories in China for food machine and packing machine.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Genyond machine has more than 100 engineers for the installation of oversea projects.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly. A satisfying project will be given; A long-term cooperation will come.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly. A satisfying project will be given; A long-term cooperation will come.
