Milk powder production line, for pasteurized milk, flavoured milk, yoghurt, cheese, butter, cream, ice cream, etc
We supply small dairy process line, turnkey project, complete process line.
The final product can be pasteurized milk, flavored milk, yogurt, cheese, butter, cream, ice cream, etc.

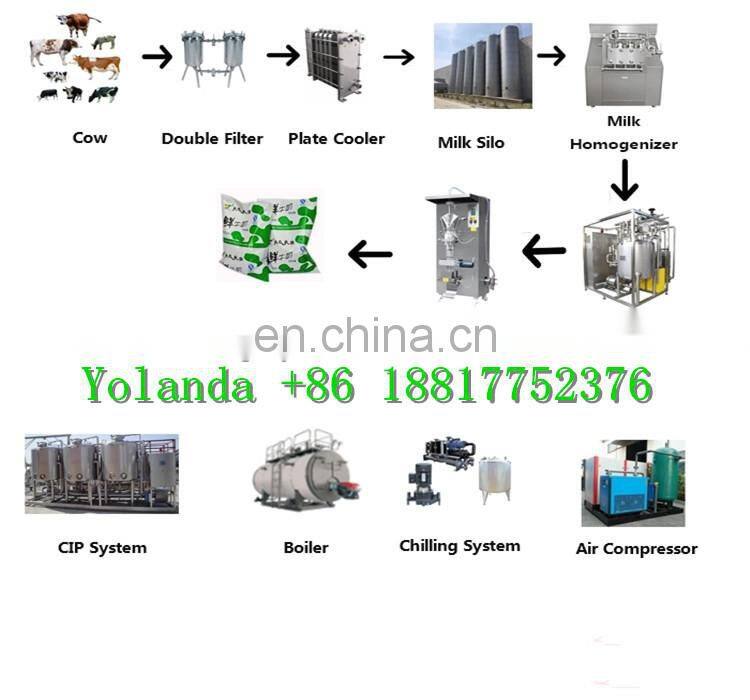

The whole milk powder production line consists of the following units:
1. Milk Reception or Powder Dissolving Mixing Section
2. Mixing and Sugar Melting tanks
3. Pasteurizer and Homogeniser
4. Milk Storage or Yogurt Producing Unit
5. Falling film Evaporator
6. Spray dryer
7. Filling or Packing machine
8. CIP Cleaning System
9. After Treatment Equipment, like conveyor, package or pallet, etc.
10. There are other assistant equipments used such as steam boilers, air compressor, cold water unit, etc.
11. Installation materials for the material pipes, no-material pipes as well as electrical system are provided.
Specifications of Milk Powder Production Line
Capacity of plant: 2T-300T/D.
Products type: 1 or 2 or more kinds.
Filling types can be decided by the customer then designed accordingly.
Our company can design custom production lines in accordance to the customers' requirements.
|
Standard Equipment list of DAIRY PRODUCTION LINE |
||
|
NO. |
NAME |
MAIN TECHNOLOGY PARAMETER |
|
1 |
MILK RECEIVESTORAGE |
|
|
2 |
milk receiving tank |
SUS304 stainless steel,single layer,CIP cleaning ball |
|
3 |
milk pump |
SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
|
4 |
double filter |
SUS304 stainless steel,two pipe,Stainless Steal Filter Element 100 Mesh |
|
5 |
dish separator |
auto residue discharge |
|
6 |
cooling tank |
SUS304 stainless steel,alveolate jacket,attached with compressor |
|
7 |
milk pump |
SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
|
8 |
blending tank |
SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet |
|
9 |
milk pump |
SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
|
10 |
mini set of plate-type heat exchanger |
SUS304 stainless steel,two stages, |
|
11 |
milk pump |
SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
|
12 |
UHT sterilizer |
tub-type,sterilizing temperature 137 C,holding time 4S,full automatic control |
|
13 |
high pressure homogenizer |
40MPa,(starting box included) |
|
14 |
CIP system |
|
|
15 |
semi-auto CIP system |
outer coat of SUS304 stainless steel material,inner shell of SUS316,single cleaning way, Concentrated acid/alcali tank adding system based on US technology, 100L×2 acid/alcali Concentrate tanks |
|
16 |
CIP return pump |
SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
|
17 |
installation part |
whole milk processing line installation and commissioning |
