Home > Manufacturing & Processing Machinery > Machinery for Food, Beverage & Cereal > Fruit & Vegetable Processing Machinery > High Yield Multifunctional Hydrosol Hydrolat Essence Essential Oil Distiller Distillation Extractor Machine Extraction Equipment

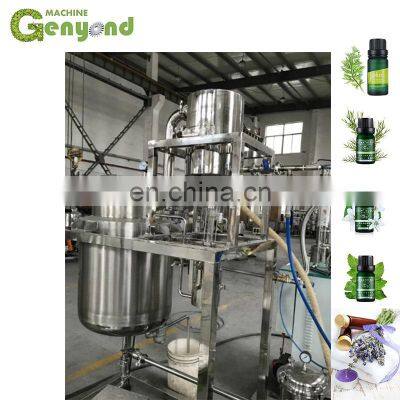

High Yield Multifunctional Hydrosol Hydrolat Essence Essential Oil Distiller Distillation Extractor Machine Extraction Equipment
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2013
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aromatic Species for Essential Oil Steam DistillationNegotiableMOQ: 1 -
10% Cut off Herbal Oil Extraction Equipment for EssentialNegotiableMOQ: 1
-
50-100L Orange Essential Oil Essential Oil Distillation MachineNegotiableMOQ: 1
-
Home Lavender Essential Oil Distill Equipment, Distillation Equipment for Essential Oil, Rose Oil Extraction MachineNegotiableMOQ: 1
-
Home Stainless Steel Small Distillation Water Rose Flowers Machine Distiller Equipment Essential Oil Extracting Machine For SaleNegotiableMOQ: 1
Product Description
Our essential oil distiller equipment adopts the method of steam distillation. This method is as below: put the plants into the container, add water and heat container.The the steam and oil will enter the condenser through the top outlet to cool down. Because of the relative lighter density,essential oil float on the water surface,then we get the highest quality essential oi extracted for the first time. Since essential oils are slightly melted in water, a bit essential oil will remain in the cooling water ,which is called "hydrosol" or "flower water".
Equipment advantages:
1. The quality oil-water separator is very good, equipped with oil-water separators for both light oil and heavy oil.
2. Equipped with a precision demister, the essential oil is very good without any impurities.
3. Distillation method: in-water distillation and on-water distillation are available,, which can adapt to different types
of aromatic plants.
4. Various heating methods are available to save energy.
Equipment advantages:
1. The quality oil-water separator is very good, equipped with oil-water separators for both light oil and heavy oil.
2. Equipped with a precision demister, the essential oil is very good without any impurities.
3. Distillation method: in-water distillation and on-water distillation are available,, which can adapt to different types
of aromatic plants.
4. Various heating methods are available to save energy.
Raw material: knids of flower such as rose, rosemary, lavender, violet, chamomile....
ginger, cinnamon, agilawood, frankincense, sandalwood, betel leaves, Eucalyptus, licorice...
ginger, cinnamon, agilawood, frankincense, sandalwood, betel leaves, Eucalyptus, licorice...
Most flower, root, leaves are suitable to processed with this machine.
Raw material processed
Processing flow

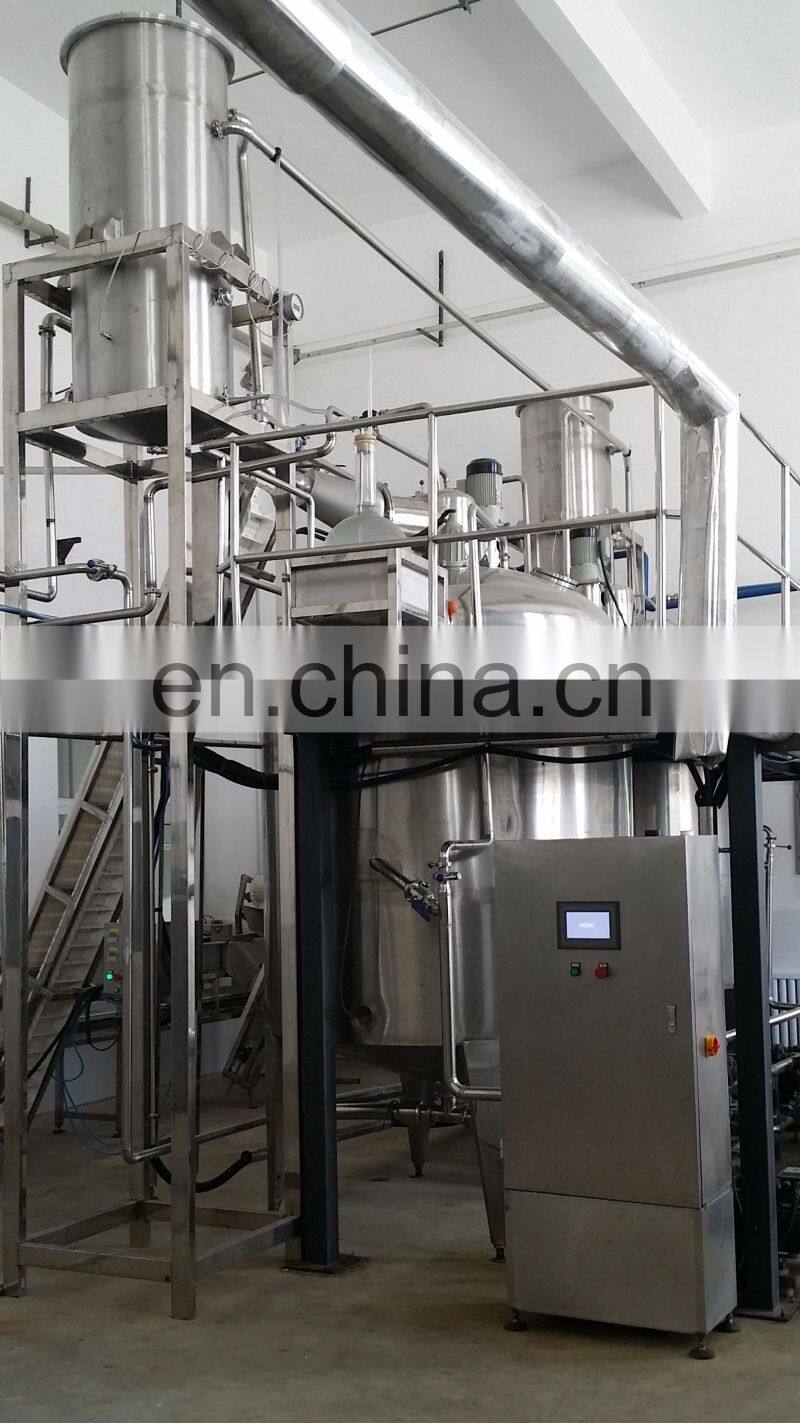

Detail Pictures
Specification
Small & Medium size Essential Oil Distiller (Electricity or steam) | ||||||||||||
Model | Capacity | Power | Diameter of Condenser | Material | Heating Area of Extraction Tank | Condensing Area of Condenser | ||||||
GYC10 | 10L | 4KW | 102mm | SUS304 | 0.3M2 | 0.7M2 | ||||||
GYC20 | 20L | 4.5KW | 102mm | SUS304 | 0.4M2 | 0.75M2 | ||||||
GYC30 | 30L | 5KW | 133mm | SUS304 | 0.45M2 | 0.8M2 | ||||||
GYC50 | 50L | 11KW | 133mm | SUS304 | 0.5M2 | 0.85M2 | ||||||
GYC100 | 100L | 15KW | 133mm | SUS304 | 1.05M2 | 0.95M2 | ||||||
GYC150 | 150L | 17KW | 133mm | SUS304 | 1.45M2 | 1.25M2 | ||||||
GYC200 | 200L | 20KW | 133mm | SUS304 | 1.85M2 | 1.50M2 | ||||||
HEC300 | 300L | 25KW | 133mm | SUS304 | 1.95M2 | 2.00M2 | ||||||
Large Customized Machines (steam ) | ||||||||||||
Model | Capacity | Temperature display | Cooling water circulation pump | Crane system | Console | Boiler | ||||||
GYC500 | 500L | Digital temperature control system, with steam stop valve,drain valves, steam traps, etc. | Cooling water circulation pump, 20tons/H, the cooling water through the pipe into the condenser | 750kg | Carbon steel rust treatment table | The gas coal electric boilers according customer local conditions to select | ||||||
GYC1000 | 1000L | 1000kg | ||||||||||
GYC1500 | 1500L | 1000kg | ||||||||||
GYC2000 | 2000L | 1000kg | ||||||||||
GYC3000 | 3000L | 1500kg | ||||||||||
GYC4000 | 4000L | 2000kg | ||||||||||
GYC5000 | 5000L | 2000kg | ||||||||||
Structure: A: up charging and up discharging (Crane system needed) B: up charging and side discharging C: up charging and bottle discharging | ||||||||||||
GENYOND MACHINERY INDUSTRIAL GROUP
It has 6 factories in China for food machine and packing machine.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Genyond machine has more than 100 engineers for the installation of oversea projects.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly. A satisfying project will be given; A long-term cooperation will come.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly. A satisfying project will be given; A long-term cooperation will come.
