Continuous Lab & Pilot Production Turnkey Wiped Film Molecular Distillation

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Application

Extraction of Deep Fish Oil
Extraction of Oil
Pharmaceuticals
Concentration of Plant Essential Oil
Separation of Vitamin / Nutritional Essential Oil
Chemical Research

Family Overview

Molecular distillation series including:
1. Short Path Distillation, SPD series
2.Glass Wiped Film Distillation, GPD series
3.Hybrid Wipped Film Distillation, HMD series
4.Stainless Steel Wiped Film Distillation, SMD series

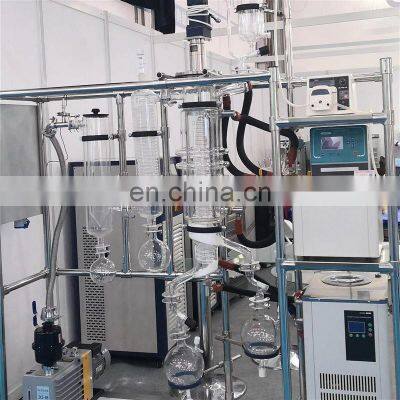

System Overview

Including:

1.Control cabinet
2.Feeding tank
3.Main evaporator
4.Condenser
5.Driving motor thermostat equipment
6.Vacuum Pump
7.Heating circulator
8.Heating circulator
9.Heating and cooling

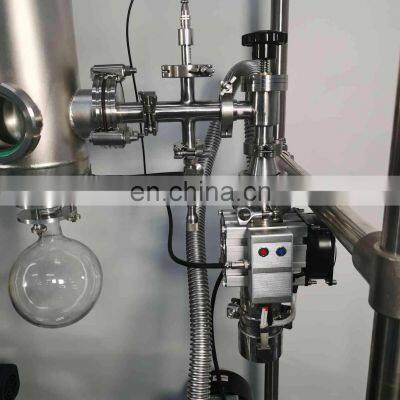

System components

	1.Heat protection Jacketed pipes are better at heat preservation.
	2. Main evaporator Use built-in condenser, three layer insulation design
	3. Dual cold trap Dewar type cold trap and cooling coil cold trap are suitable for this system.
	4. Visualization Use glass windows, more convenient to monitor the distillation process.
	5. Gear pump With high precision gear pumps, you can continuous feeding and discharging.

Work flow

Comparision principal of short path and wiped film distillation

Short Path

Pros of Short Path Distillation

Short path distillation produces a high-quality product. You can get multiple fractions during the distillation process, depending on how high you raise the temperature. The multi-position flask collects the different fractions into different flasks, which allows for easy distillation.
Cons of Short Path Distillation

Like most distillation processes, short path requires an experienced operator to efficiently get a high-quality product. It is limited in scale and production, so it's not ideal for large-scale operations

Wiped Film

Pros of Wiped Film Distillation
Wiped film has an extremely efficient and even heat transfer due to its thin film of oil, no matter how viscous the fluid is. This results in a high-quality product. The process can easily be used for large-scale productions, so it's ideal for large batches of distillation. If you run in a continuous mode, it also reduces the exposure time of the oil and increases productivity.
Cons of Wiped Film Distillation
Two passes are required through the system to achieve a high-quality distillate. After the first pass, there are still some leftover terpenes and volatiles. The second distillation requires a little more time, but results in a higher-quality end product.

wipe film distillation work flow:

Specification

Model	Feed rate (L/h)	Throughput (L/h)	Evaporation area (m2)
GMD - 100A	0.75 - 7.5	1.5 - 3	0.1
GMD - 150A	1.25 - 12.5	2.5 - 5	0.25
GMD - 200A	1.75 - 17.5	3.5 - 7	0.35
HMD - 150	1.25 - 12.5	2.5 - 5	0.25
HMD - 200	1.75 - 17.5	3.5 - 7	0.35
SMD - 01	2 - 10	3.5 - 7	0.1
SMD - 03	5 - 25	10 - 20	0.3
SMD - 05	10 - 50	18 - 36	0.5
SMD - 10	20 - 100	30	1
SMD - 25	50 - 250	75	2.5
SMD - 50	100 - 500	150	5

Advantages

As a group company, we have more than 10 factories in China. We have been in machines production more than 20 years. Our machines have been exported to more than 280 countries.

High quality of machine

From the raw material, we just buy the top quality product. For motor, electronic part, we use top quality brand in the world.

Low price in our product

For we buy high quantity raw material and spare part, we can get low price from our cooperated suppliers. So it reduce a lot cost.

Good after sale service

Before the machine is ship, it will test well. We will send our engineers for installation within 10 days after the goods reach your factory.

Warranty

We can offer 2 years warranty for free. Any problem for our machine, we can provide the spare parts for free.

Company Profile

Shanghai Genyond Technology Co., Ltd.

Shanghai Genyond Technology Co., Ltd. is a manufacturer of extracting unit and fruit & vegetable processing line with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and beverage and other industries.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
