Help CenterLemongrass Essential Oil Extracting Equipment Extractor Machine Distillation Machine Plant Essence Distiller
Related Products
-
YLANG Essential Oil Extract Machine/ Distiller/ Distillation MachineNegotiableMOQ: 1 -
Geranium Essential Oil Extract Machine/ Distiller/ Distillation MachineNegotiableMOQ: 1
-
Neroli Extract Machine/ Distiller/ Distillation MachineNegotiableMOQ: 1
-
Vetiver Essential Oil Extract Machine/ Distiller/ Distillation MachineNegotiableMOQ: 1
-
Cinnamon Bark Essential Oil Distiller Extraction MachineNegotiableMOQ: 1

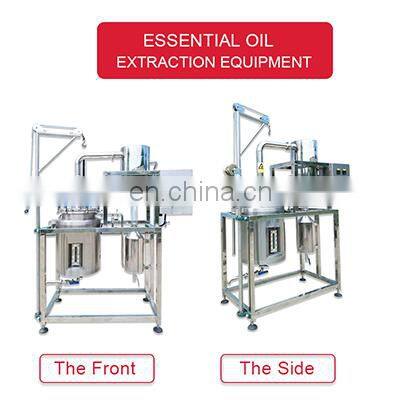

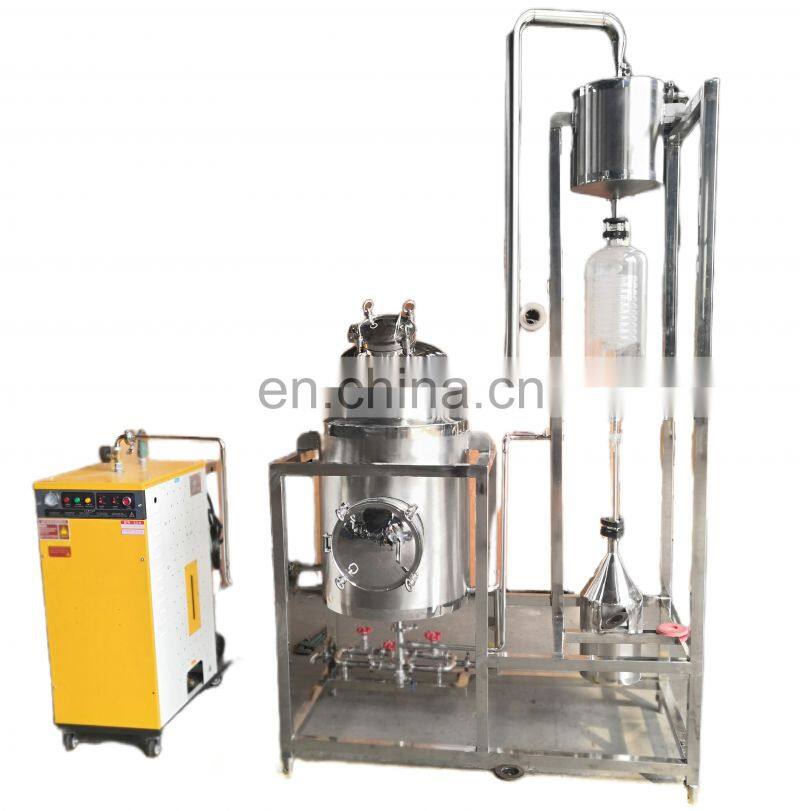

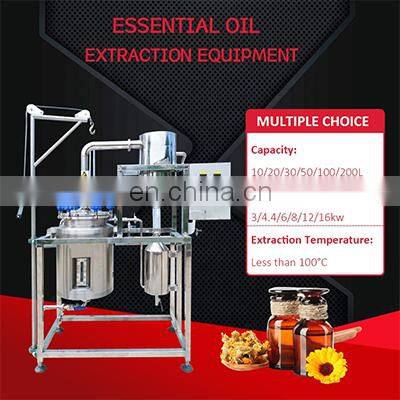

Essential Oil Distiller
This essential oil distilling equipment is popular in production of Chinese medicines,health products,biological drugs,cosmetics and food .This essential oil Distill equipment uses technology and chemical separation,can extract plant components efficiently by steam distillation , have good effect in collecting essential oil from palnts.
|
Small&Medium size Essential Oil Distiller |
||||||
|
Model |
Capacity |
Power |
Diameter of Condenser |
Material |
Heating Area of Extraction Tank |
Condensing Area of Condenser |
|
GY-10 |
10L |
4KW |
102mm |
SUS304 |
0.3M2 |
0.7M2 |
|
GY-20 |
20L |
4.5KW |
102mm |
SUS304 |
0.4M2 |
0.75M2 |
|
GY-30 |
30L |
5KW |
133mm |
SUS304 |
0.45M2 |
0.8M2 |
|
GY-50 |
50L |
11KW |
133mm |
SUS304 |
0.5M2 |
0.85M2 |
|
GY-100 |
100L |
15KW |
133mm |
SUS304 |
1.05M2 |
0.95M2 |
|
GY-150 |
150L |
17KW |
133mm |
SUS304 |
1.45M2 |
1.25M2 |
|
GY-200 |
200L |
20KW |
133mm |
SUS304 |
1.85M2 |
1.50M2 |
|
GY-300 |
300L |
25KW |
133mm |
SUS304 |
1.95M2 |
2.00M2 |
|
Large Customized Machines |
||||||
|
Model |
Capacity |
Temperature display |
Cooling water circulation pump |
Crane system |
Console |
Boiler |
|
GY-500 |
500L |
Digital temperature control system, with steam stop valve, drain valves, steam traps, etc.
|
Cooling water circulation pump, 20tons/H, the cooling water through the pipe into the condenser
|
750kg |
Carbon steel rust treatment table
|
The gas coal electric boilers
|
|
GY-1000 |
1000L |
1000kg |
||||
|
GY-1500 |
1500L |
1000kg |
||||
|
GY-2000 |
2000L |
1000kg |
||||
|
GY-3000 |
3000L |
1500kg |
||||
|
GY-4000 |
4000L |
2000kg |
||||
|
GY-5000 |
5000L |
2000kg |
||||
|
10-20L distiller |
50-200L distiller |
300-500L distiller |
|
800-1000L distiller |
2000-3000L distiller |
4000-5000L distiller |
