Citrus fruits essential oil extractor
Orange essential oil extractor
Lemon essential oil extractor

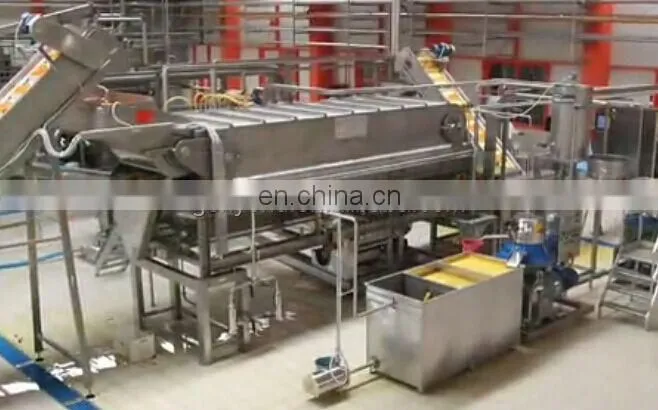

Fresh citrus fruits ------washing/cleaning-----elevator------oil extractor-----filter-----water-oil mixture-----disc centrifugal separator-----oil
Fresh citrus fruits after washing/cleaning feed into the oil extractor via a bucket elevator, the rotating rasping cylinders inside the oil extractor will rasp the fruits skin to extract the oil, then with water spraying device the water sprays will take out and collect the oil from the surface of the fruits, as water-oil mixture, the separate the oil out by disc centrifugal separator.The separated water will be pumped into a decantation tank after duplex filter, this water can be circulated and pumped to the oil extractor.
Citrus fruits peel oil extractor
Model |
Capacity |
Power |
Material |
Dimension |
Weight |
MYJ-1 |
1000-1500kg/h |
3.0kw |
Sus304 |
3500*2800*2550mm |
550kg |

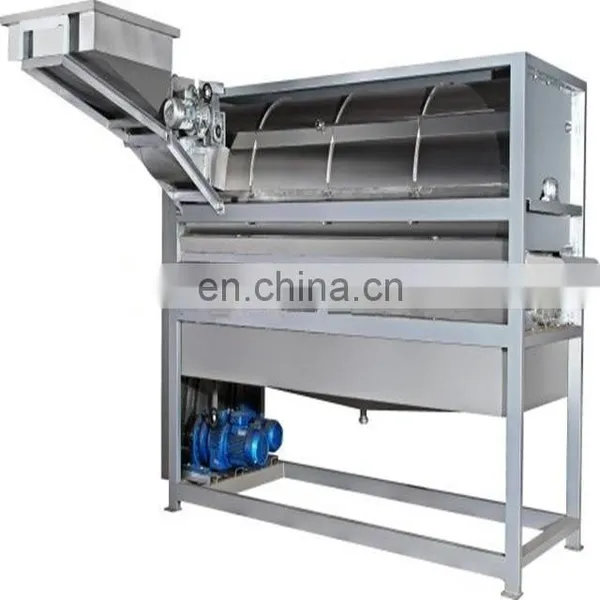

The fruits feed into this oil extractor via the elevator in a constant flow regularly, the fruits are pushed forward by paddles along couples of rotating rasping cylinders, the oil comes out from the skin of the fruits due to the rasping action of the rotating cylinders and is collected by some sprays of water, the water-oil mixture flow out to the filter.
