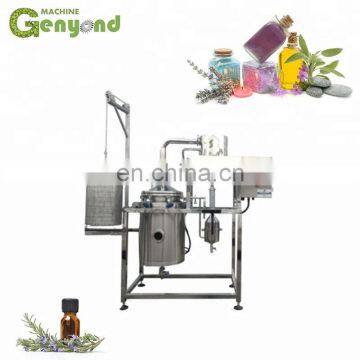

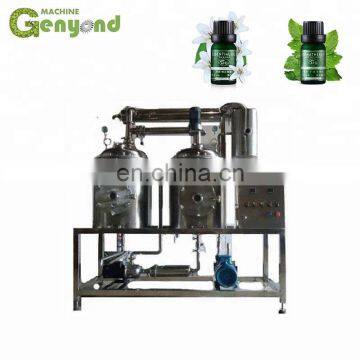

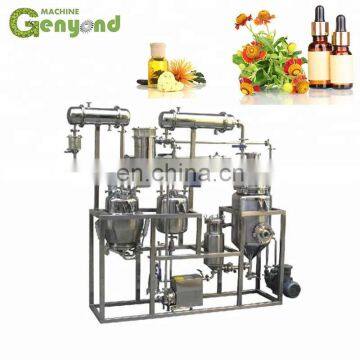

Industrial Essential Oil Distiller Distillation Extraction Plant Essence Extractor Equipment Machine for Flower and Plant
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2013
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Young Living Essential Oils Distillation Equipment Machine for Organic Lavender Lemon and RoseNegotiableMOQ: 1 -
China Supply Essential Oil Extracting Distiller Machine for Rose Neroli and Mint PlantNegotiableMOQ: 1
-
Chamomile Oil Extraction MachineNegotiableMOQ: 1
-
Ocimum Stainless Steel Essential Oil DistillerNegotiableMOQ: 1
-
Essential Oil ExtractorNegotiableMOQ: 1
Product Description
Product Introduction
The essential oil steam distillation unit uses distillation technology and chemical separation,which can extract plant components efficiently by steam distillation,and have good effect in collecting essential oil from plants.
The material information
Plant leaves and flowers: roses, osmanthus,chrysanthemum,lavender,
sagebrush, rosemary, wintersweet, sophora japonica, mint, thyme,etc.
Plant roots: aloes, ginger, aloe, clove,etc.
Plant fruit, passion fruit, castor, aniseed, grape seeds, etc.
Processing flow
Parameter
Small & Medium size Essential Oil Distiller (Electricity or steam) | ||||||||||||
Model | Capacity | Power | Diameter of Condenser | Material | Heating Area of Extraction Tank | Condensing Area of Condenser | ||||||
GYC10 | 10L | 4KW | 102mm | SUS304 | 0.3M2 | 0.7M2 | ||||||
GYC20 | 20L | 4.5KW | 102mm | SUS304 | 0.4M2 | 0.75M2 | ||||||
GYC30 | 30L | 5KW | 133mm | SUS304 | 0.45M2 | 0.8M2 | ||||||
GYC50 | 50L | 11KW | 133mm | SUS304 | 0.5M2 | 0.85M2 | ||||||
GYC100 | 100L | 15KW | 133mm | SUS304 | 1.05M2 | 0.95M2 | ||||||
GYC150 | 150L | 17KW | 133mm | SUS304 | 1.45M2 | 1.25M2 | ||||||
GYC200 | 200L | 20KW | 133mm | SUS304 | 1.85M2 | 1.50M2 | ||||||
HEC300 | 300L | 25KW | 133mm | SUS304 | 1.95M2 | 2.00M2 | ||||||
Large Customized Machines (steam ) | ||||||||||||
Model | Capacity | Temperature display | Cooling water circulation pump | Crane system | Console | Boiler | ||||||
GYC500 | 500L | Digital temperature control system, with steam stop valve,drain valves, steam traps, etc. | Cooling water circulation pump, 20tons/H, the cooling water through the pipe into the condenser | 750kg | Carbon steel rust treatment table | The gas coal electric boilers according customer local conditions to select | ||||||
GYC1000 | 1000L | 1000kg | ||||||||||
GYC1500 | 1500L | 1000kg | ||||||||||
GYC2000 | 2000L | 1000kg | ||||||||||
GYC3000 | 3000L | 1500kg | ||||||||||
GYC4000 | 4000L | 2000kg | ||||||||||
GYC5000 | 5000L | 2000kg | ||||||||||

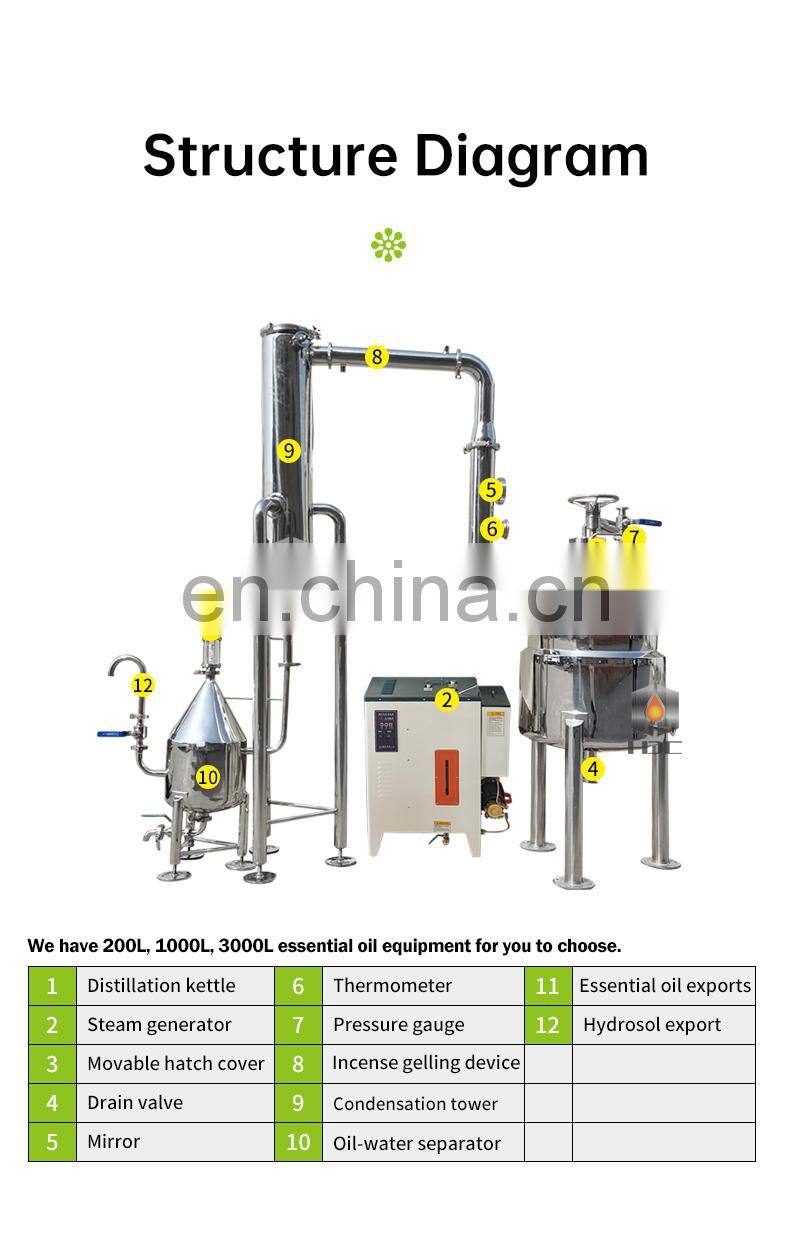

Structure: A: up charging and up discharging (Crane system needed) B: up charging and side discharging C: up charging and bottle discharging | ||||||||||||

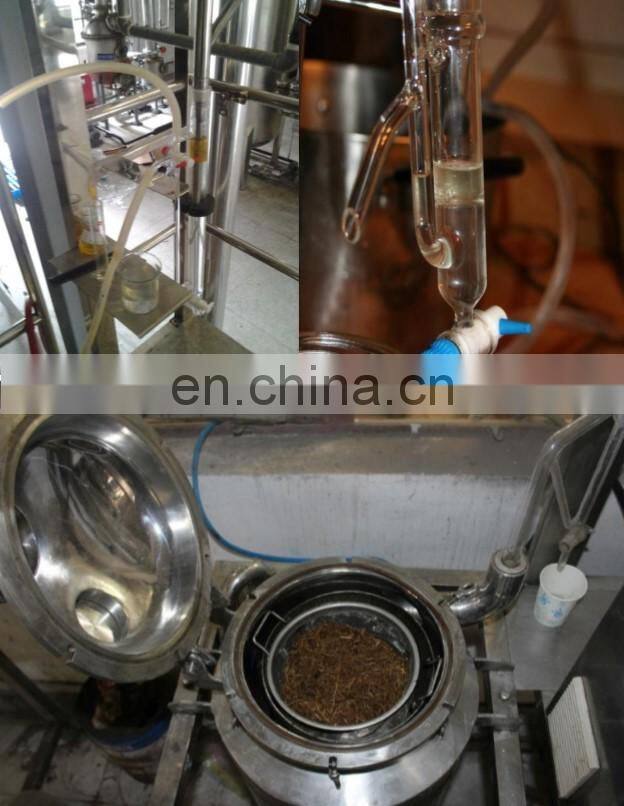

Detail Pictures
GENYOND MACHINERY INDUSTRIAL GROUP
It has 6 factories in China for food machine and packing machine.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Genyond machine has more than 100 engineers for the installation of oversea projects.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly. A satisfying project will be given; A long-term cooperation will come.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly. A satisfying project will be given; A long-term cooperation will come.
