Ruifa Laser Welding Gun Head Laser Welding Gun Laser Welding Cutting Cleaning Gun Head Three in One Handheld

Features of hand-held laser welding machine:

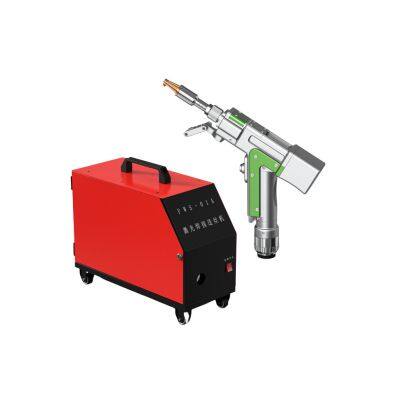

1. The integrated cabinet integrates the laser, water chiller, software control, etc. It has the unique advantages of small floor area, convenient movement and strong functionality;

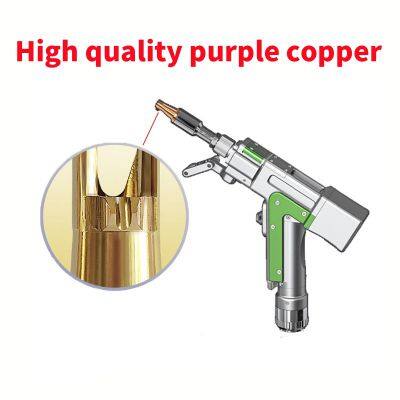

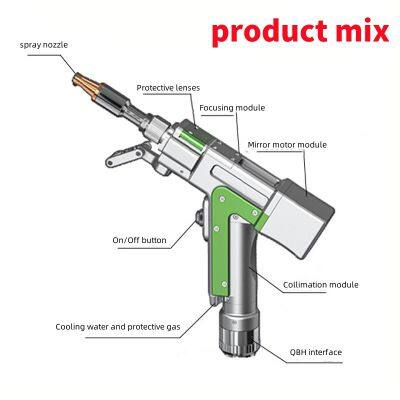

2. The hand-held welding head is equipped with 10M original optical fiber, which is flexible and convenient;

3. Hand-held operation mode, equipped with special welding nozzle, can weld any part of the workpiece at any angle;

4. Matched with multiple laser sources, suitable for multiple process requirements, welding once forming, basically no deformation, meeting the requirements of high-quality products;

5. The weld shall be beautiful, free of welding scar, discoloration and subsequent polishing;

6. The welding is firm, and the weld strength reaches or even exceeds the base metal itself;

7. Suitable for butt welding, overlap welding, internal and external fillet welding, circular arc welding, irregular shape welding, etc;

8. The whole set of equipment has strong functionality, meets the ergonomic design, and is applicable to various working environment scenarios;

9. Proprietary laser safe operation protection function to ensure the safety of operators during work;

10. The operation is simple, easy to learn and quick to learn, the technical threshold of operators is not high, and labor costs are saved.

Advantages of welding machine products:

1. Hand-held welding replaces the fixed optical path before, which is more flexible and convenient to realize long-distance laser welding and overcome the limitations of the travel space of the workbench;

2. Hand-held welding head is portable and flexible, easy to operate, and can meet the requirements of welding from multiple angles and positions;

3. Infrared positioning is used to calibrate the welding head and verify the position during welding. The welding position is more accurate to ensure that the weld is more beautiful;

4. Laser welding is deep and firm;

5. It is easy to grind and polish without pre-deformation, which solves the problems of penetration, overlap and welding quality in the use of argon arc welding;

6. It is also suitable for various complex welding and spot welding of various devices.

Technical parameters of hand-held laser welding machine:

Model: SCH-1000W/SCH-1500/SCH-2000W

Power: 1000W-2000W

Laser wavelength: 1064nm

Working mode: continuous laser

Requirements for welding gap: ≤ 0.5mm

Overall power: 9KW

Fiber length: 5-10M customizable

Operating temperature range: 15-35 ℃

Working humidity range: ＜ 70% without condensation

Welding thickness (penetration): ≤ 3mm

Applicable materials: iron plate, aluminum alloy, carbon steel, stainless steel, galvanized sheet, copper, aluminum, etc

Welding speed: 0-120mm/S

Overall size; 1000mm*750mm*950mm

Weight of main machine: 120KG
