Features of hand-held laser welding machine:
1. The integrated cabinet integrates the laser, water chiller, software control, etc. It has the unique advantages of small floor area, convenient movement and strong functionality;

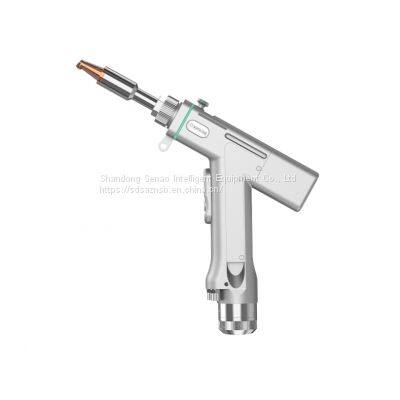

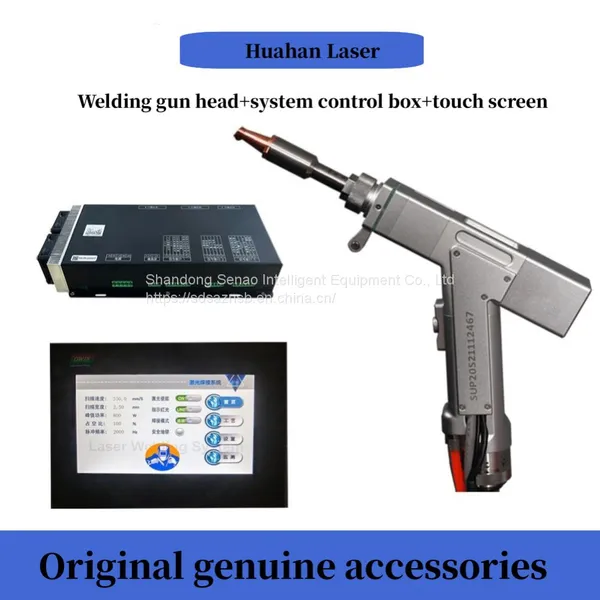

2. The hand-held welding head is equipped with 10M original optical fiber, which is flexible and convenient;
3. Hand-held operation mode, equipped with special welding nozzle, can weld any part of the workpiece at any angle;
4. Matched with multiple laser sources, suitable for multiple process requirements, welding once forming, basically no deformation, meeting the requirements of high-quality products;
5. The weld shall be beautiful, free of welding scar, discoloration and subsequent polishing;
6. The welding is firm, and the weld strength reaches or even exceeds the base metal itself;
7. Suitable for butt welding, overlap welding, internal and external fillet welding, circular arc welding, irregular shape welding, etc;
8. The whole set of equipment has strong functionality, meets the ergonomic design, and is applicable to various working environment scenarios;
9. Proprietary laser safe operation protection function to ensure the safety of operators during work;
10. The operation is simple, easy to learn and quick to learn, the technical threshold of operators is not high, and labor costs are saved.
Advantages of welding machine products:
1. Hand-held welding replaces the fixed optical path before, which is more flexible and convenient to realize long-distance laser welding and overcome the limitations of the travel space of the workbench;
2. Hand-held welding head is portable and flexible, easy to operate, and can meet the requirements of welding from multiple angles and positions;
3. Infrared positioning is used to calibrate the welding head and verify the position during welding. The welding position is more accurate to ensure that the weld is more beautiful;
4. Laser welding is deep and firm;
5. It is easy to grind and polish without pre-deformation, which solves the problems of penetration, overlap and welding quality in the use of argon arc welding;
6. It is also suitable for various complex welding and spot welding of various devices.
Technical parameters of hand-held laser welding machine:
Model: SCH-1000W/SCH-1500/SCH-2000W
Power: 1000W-2000W
Laser wavelength: 1064nm
Working mode: continuous laser
Requirements for welding gap: ≤ 0.5mm
Overall power: 9KW
Fiber length: 5-10M customizable
Operating temperature range: 15-35 ℃
Working humidity range: ＜ 70% without condensation
Welding thickness (penetration): ≤ 3mm
Applicable materials: iron plate, aluminum alloy, carbon steel, stainless steel, galvanized sheet, copper, aluminum, etc
Welding speed: 0-120mm/S
Overall size; 1000mm*750mm*950mm
Weight of main machine: 120KG
