Help CenterWater Well Level Transducer WH311
Related Products
-
Submersible Level Transducer WH311US$ 3500 - 3511MOQ: 1 Piece -
Submersible Level Sensors for Deep Well Water LevelUS$ 3700 - 3811MOQ: 1 Piece
-
Submersible Level TransducersUS$ 800 - 10,000MOQ: 50 Pieces
-
SUBMERSIBLE LEVEL TRANSDUCERUS$ 2 - 150MOQ: 1 Set
-
Submersible Level TransducerNegotiableMOQ: 30 Units

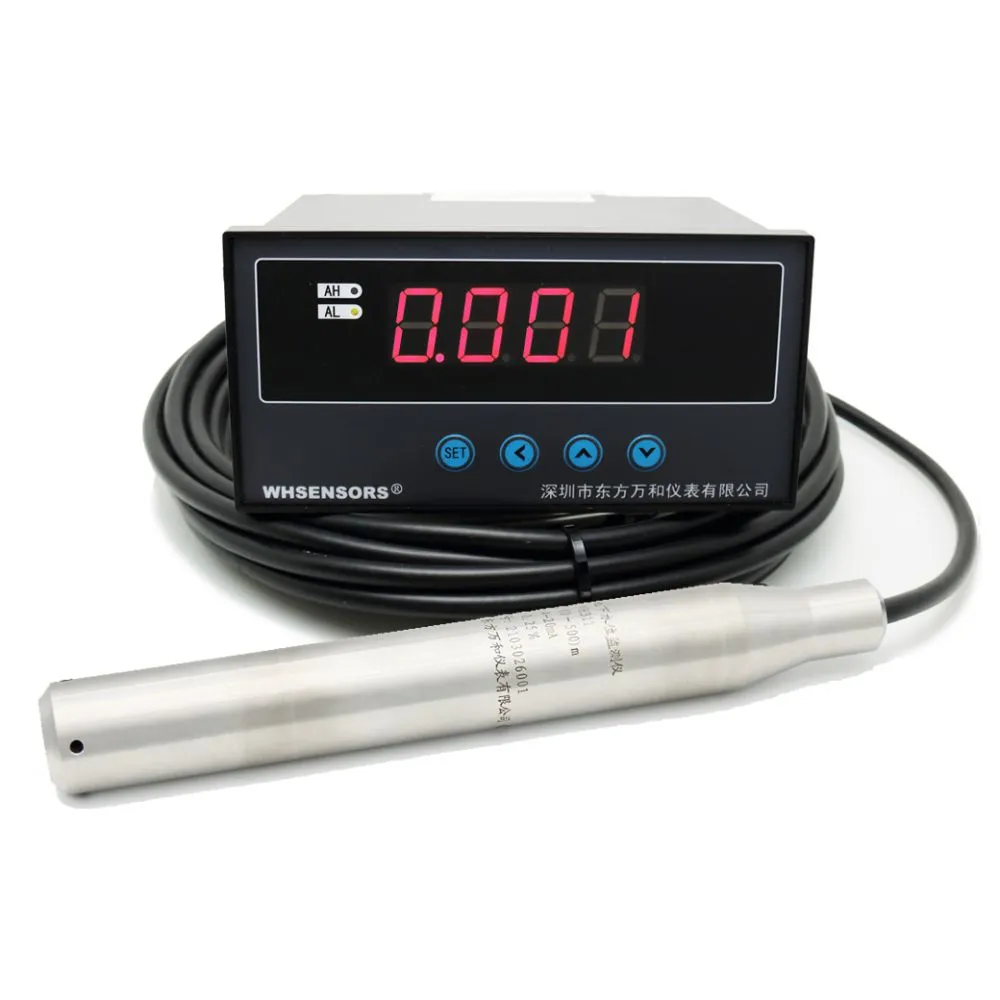

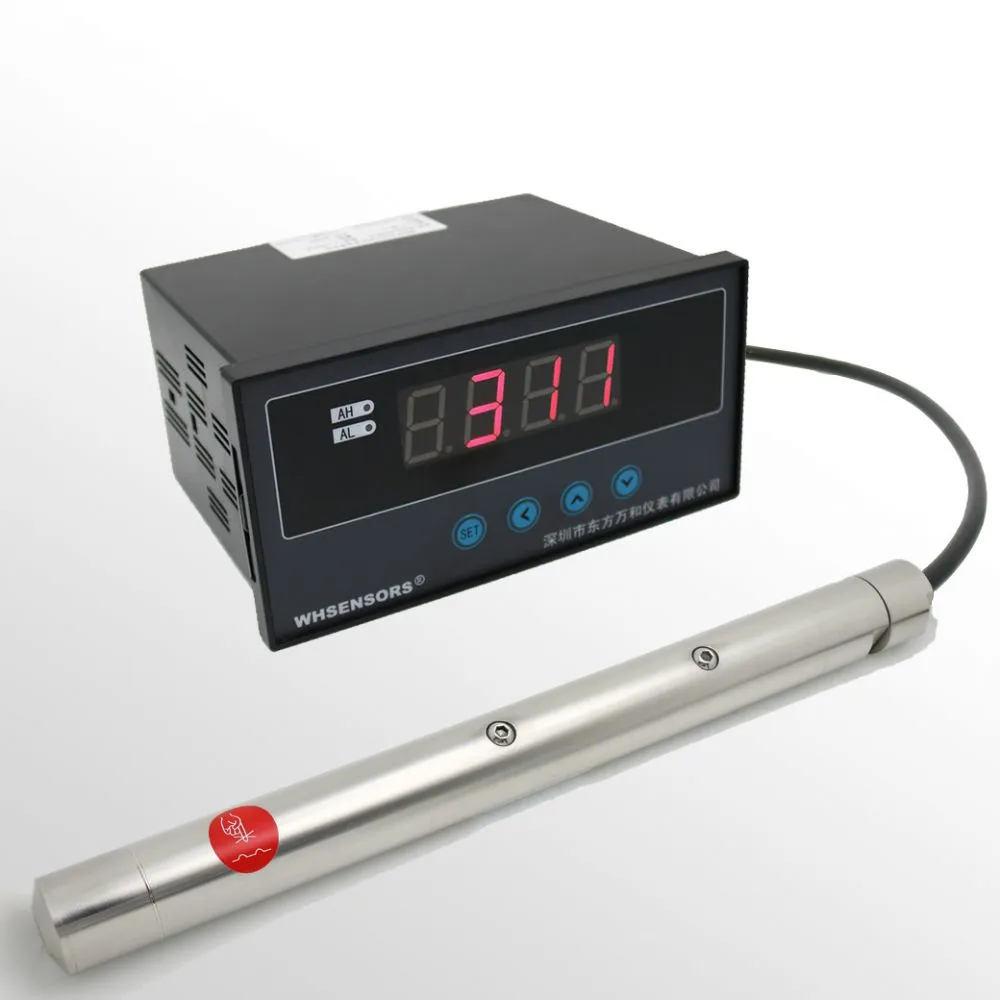

WH311 series liquid level transmitter are designed to meet the rigorous environments of applications such as deep well monitoring, pump tests,lift stations, chemical tank levels,groundwater and surface water measurement, and process control. Providing a 4-20mA output signal compatible with DCS,PLC s, panel meters, data loggers, and other electronic equipment.This is ideal for solar or battery powered installations. These transmitters can offer all ranges equivalent from 1 psi through 300psi while all units of measure and cable lengths are customer-defined for individualized specifications.
The WHsensors WH311Series Submersible Level Transmitters are manufactured for years of trouble free service. The pressure transmitter measures the height of liquid above the position in the tank referenced to atmospheric pressure. Lightning and surge protection (not guaranteed or covered by standard warranty) is included standard to stand up in harsh applications. The transmitters are vented for barometric pressure compensation. Vent is covered with a maintenance‐free filter preventing particulate or water droplets from entering the transmitter. We offer the WH311 desiccant filter that can be attached to the vent tube.
Applications
WH311 Series
Ballast tanks; Ground water monitoring; Surface water monitoring; Deep watering; Down hole; Remediation and other environmental monitoring applications,etc.
Sewage lift stations, industrial slurry, industrial sumps, landfill leach ate, reservoirs, sludge pits, oil tanks, etc. reservoirs, sludge pits, oil tanks, etc.
SPECIFICATIONS Step Two
Service: Compatible liquids Liquid level Range 0-500mH2O（Custom） Wetted Materials: Sensor: 316 SS Cable: PVC Label: Laser marking Accuracy: ±0.25% of full scale Temperature Limit: ‐4 to 212°F (‐20 to 100°C) Pressure Limit: 2X full scale Power Requirement: 220 VAC WH6 Display(220V) in charge of WH311transmitter’s power supply Output Signal: 4 to 20 mA DC, 2‐wire Response Time:
